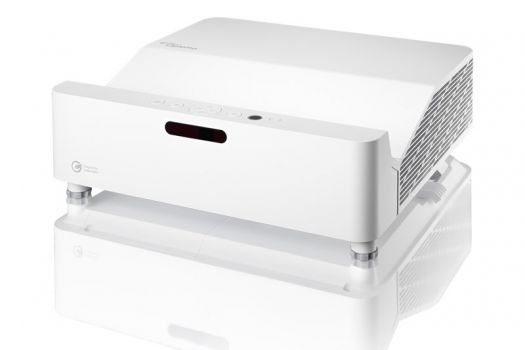

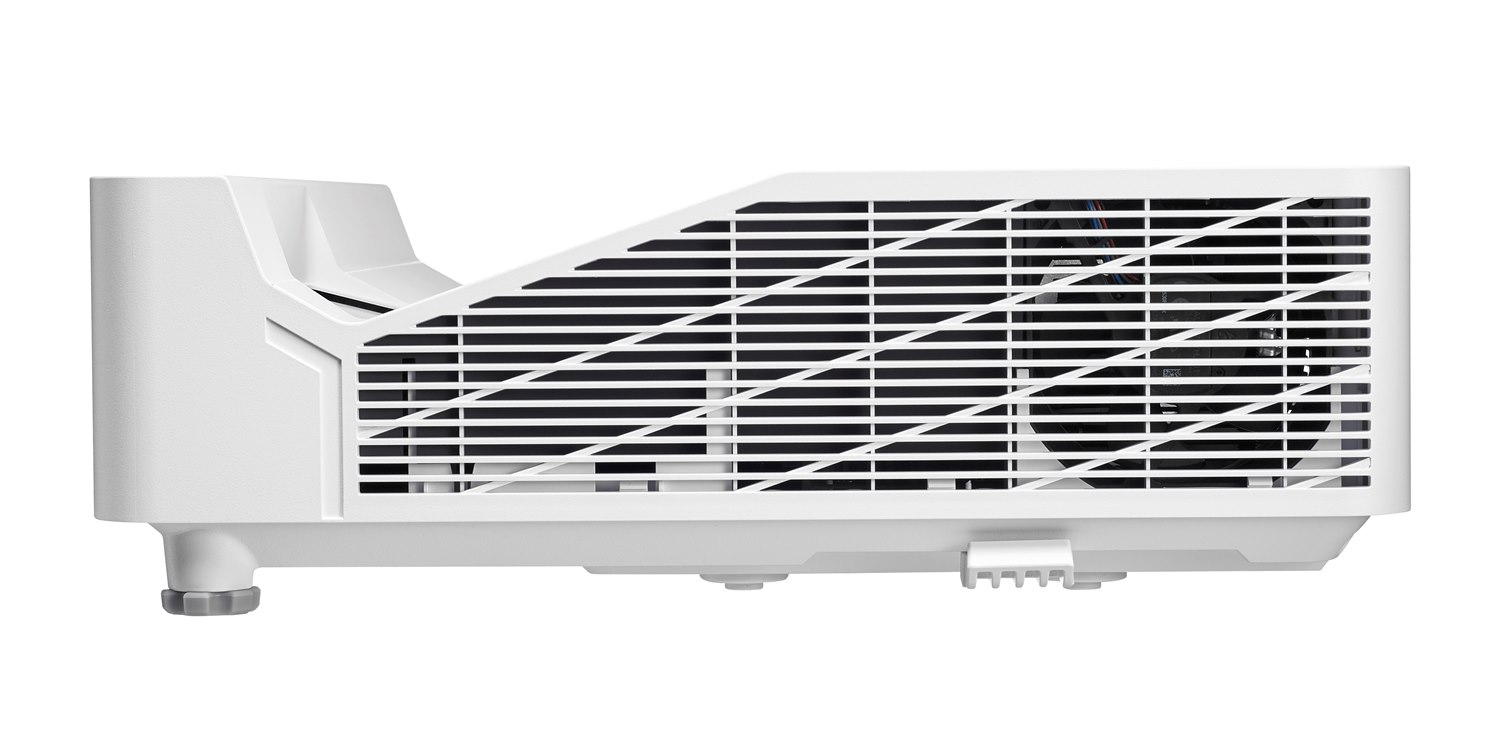

This projector from Optoma utilizes 3D-Laser-DLP technology, achieving 4200 ANSI lumens and a contrast of 1800:1 at a resolution of UHD (4K2K) 3840 x 2160. Using this laser phosphor technology, the light source runtime is rated at 30000 hours, covering an estimated 20.5 years based on a 4-hour daily runtime. The short-throw capabilities allow for large images at a short projection distance. According to specifications, a 2-meter wide image requires a distance of only 51 cm. Looking at practical performance, up to 658 cm can be illuminated with 4200 ANSI lumens in dark environments. Once daylight is in the room, the image should ideally be no wider than 439 cm. Regarding signal processing, the model is compatible with incoming 1080P content and 4K as well as 3D, and also offers the technical capability for 360° projection. Connectivity for fixed installations is rounded off by an RJ45 port for remote maintenance and an HDBaseT interface, which transmits bundled video, audio, and control data over long cable runs. Regarding noise emissions, the model proves to be exceptionally quiet during operation, producing just 29 decibels.
Display Type
1 x DLP Chip HDTV 16/9 Ti Digital Light Processing Chip
Ansi-Lumen
Projector
4200
Screen
1867 Lux (200 cm Screen width)
Contrast
1800:1
1800:1
Black Level
2,3333 min. Lumen
1,039 min. Lumen
Offset
70% 22 cm over screen top edge →
SCREEN
+Projector
Resolution
UHD (4K2K) 3840 x 2160
8.294.400 Pixel / FHD E-Shift
DVD | HD Blu-ray | 3D Blu-ray | 4K UHD Blu-ray (60p)
3D Compatibility
Frame-Packing (Full HD 3D) | Side-by-Side | Top-and-Bottom |
Application
Short Distance | Wide screen width or rooms with plenty of light (over 200 lumens).
Light Source
DuraCore Laser
Light Life
30000 h.
Operating Costs
0,00 € Laser
Calculated brightness quality The screen width may also be larger. Perfect
51 cm (no Zoom)
Lux:
1867 Lux
Contrast:
1800:1
Candela pro m²:
593 cd/m²
Foot-Lamberts:
173 fL
79 cm
•
Focus
Manual
Zoom
No Zoom
Objective
F=2,44 f=3,7mm
Throw Ratio
0,253:1
Audio
1 x 15W
Connections
2x HDMI 2.0-Eingang
USB-A (5 V/1,5A/TI-FW-Aktualisierung)
3D-Sync-Ausgang (3-poliger Mini-DIN-Anschluss)
Mini Jack Audio out
RS232C Din 9 pin in
RJ45
HDBaseT 3.0
Real Full HD 3D Full HD 1080P compatible Eco Mode Kensington Slot High Dynamic Range (HDR) 360° installable 24/7 continuous operation capable PJLink™ Lan network compatible. Short-throw projector Crestron®-Software compatible. Optoma Management Suite (OMS)? AMX Four Corner Adjustment HLG Refresh rate: 60Hz @ 4K
Real Full HD 3D
