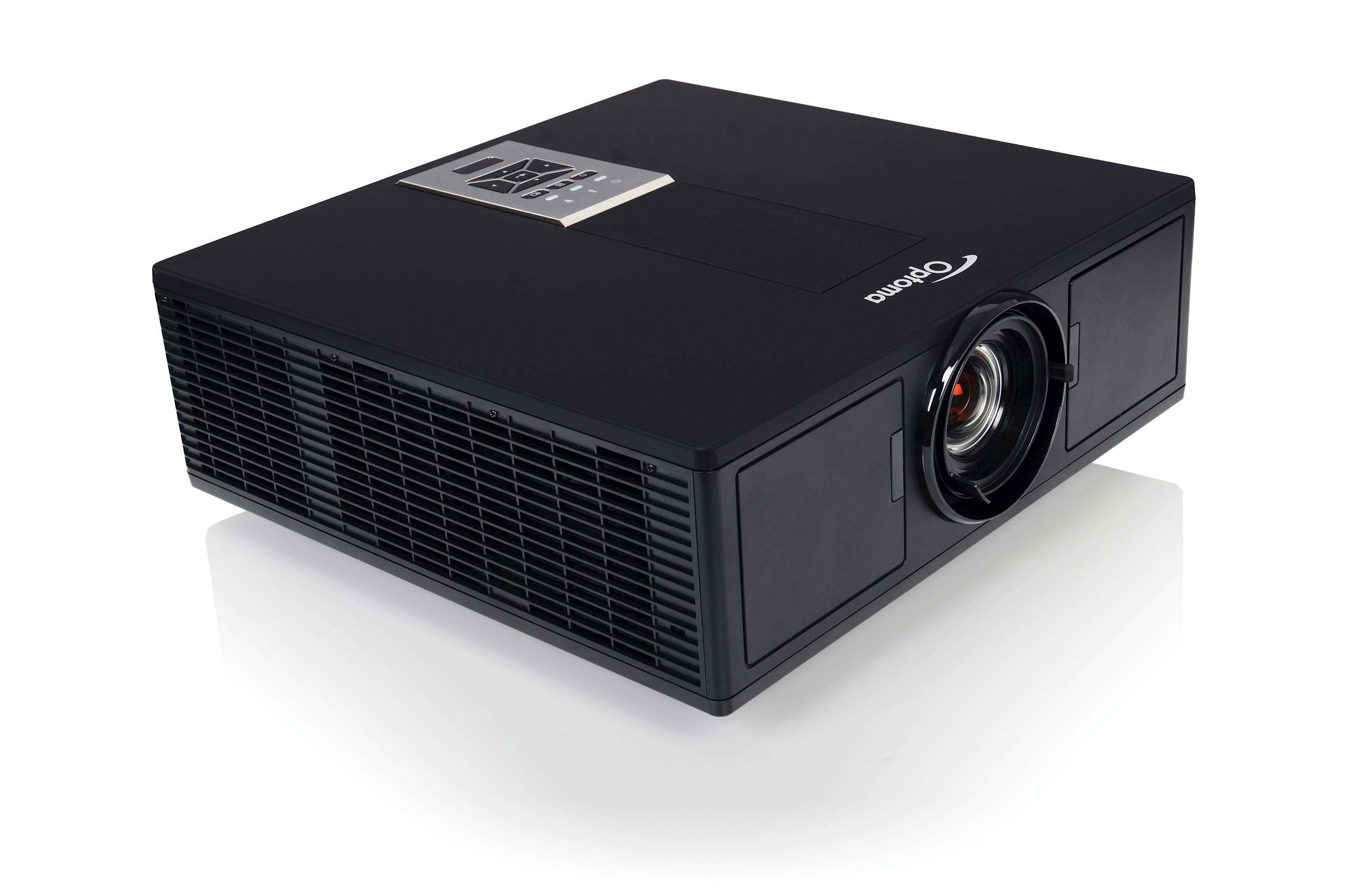

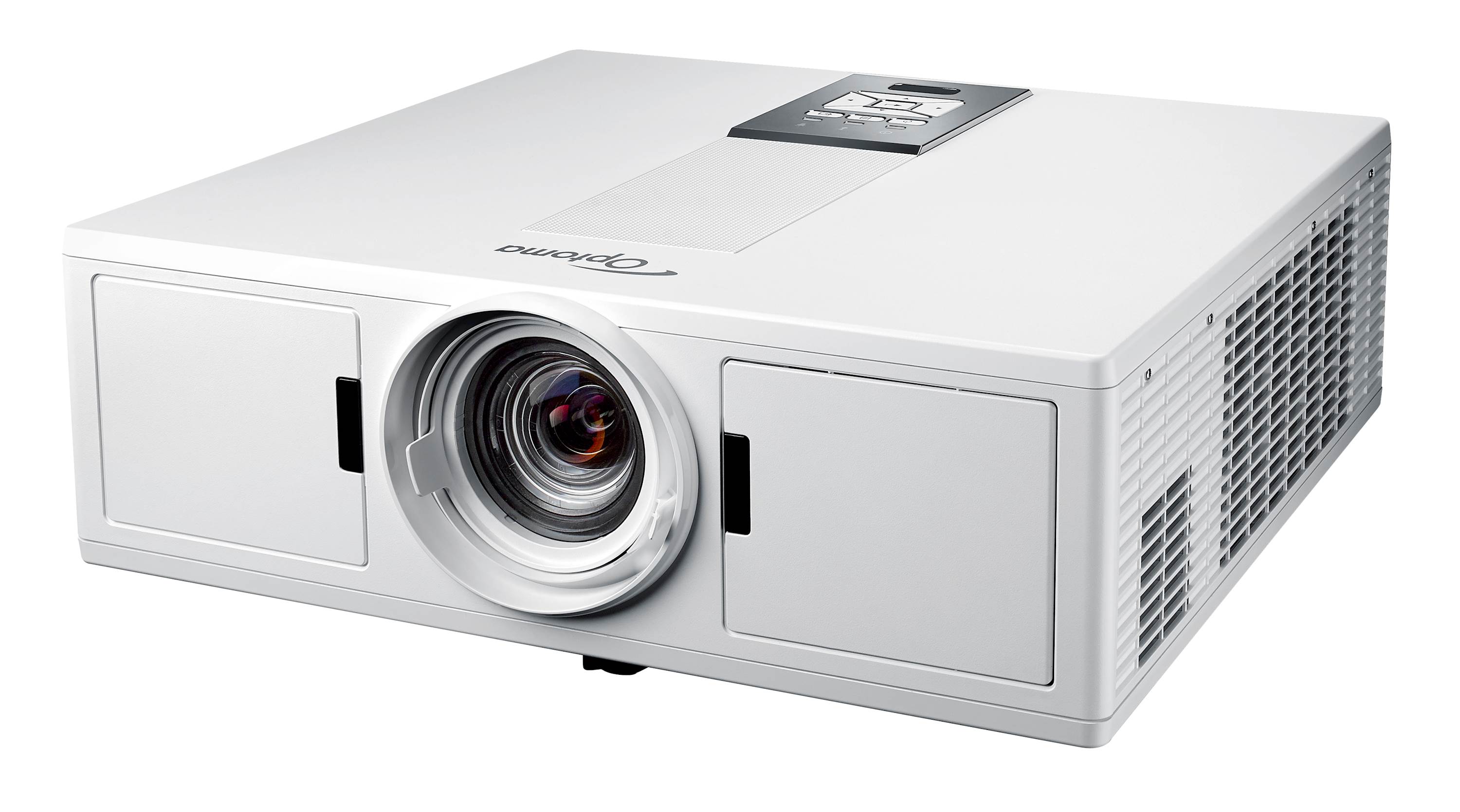

Designed for the Stationary sector, the ZH510Te model from Optoma features 5500 ANSI lumens, a native HDTV 1920 x 1080 resolution and a contrast ratio of 300000:1. The manufacturer lists the lifespan for this model at 30000 hours – calculating to 20.5 years at four hours of use per day. Regarding setup flexibility, the model features an optical lens shift function alongside digital keystone correction, allowing for precise alignment; exact values can be calculated using the Projector Calculator. Regarding projection size, the value of 5500 ANSI lumens allows for an image width of up to 753 cm in darkened environments. In rooms with ambient light, the image width should be correspondingly reduced to a maximum of 502 cm. For media input, video signals up to 1080P as well as 3D are supported. An additional 360° projection capability allows the device to be oriented at almost any angle. Thanks to MHL support, screen content from mobile devices can be transmitted via cable, including charging power for the device. Connectivity for fixed installations is rounded off by an RJ45 port for remote maintenance and an HDBaseT interface, which transmits bundled video, audio, and control data over long cable runs. Equipped with a microphone jack and built-in speakers (10W), audio signals during presentations can be played back directly without an external audio system. Regarding noise emissions, the model proves to be exceptionally quiet during operation, producing just 28 decibels. Since entering the market in 2018, production has been discontinued; the manufacturer no longer actively offers the model.
Display Type
1 x 0,65 DC3 DLP Chip HDTV 16/9 Ti Digital Light Processing Chip
Ansi-Lumen
Projector
5500
Screen
2444 Lux (200 cm Screen width)
Contrast
300000:1 full on/off
300000:1 full on/off
Black Level
0,0183 min. Lumen
0,008 min. Lumen
Lens shift
Vert.: +70% --40% Hori.: +/-10%
Lens shift
30%
34cm
10%
20cm
10%
20cm
+
Projector 11 cm under screen top edge
Resolution
HDTV 1920 x 1080
2.073.600 Pixel WUXGA 1920 x 1200 compressed
Stationary | Permanent installation in the training room and meeting room as well as the conference room. Wide screen width or rooms with plenty of light (over 200 lumens).
2 x HDMI mit MHL in
D-Sub 15 pin in und out
HDBaseT in
Mini Jack Audio in und out
Microphone
USB
RJ45 in
12V Trigger out
RS232C Din 9 pin in
Wired Remote
3D Sync
Real Full HD 3D Full HD 1080P compatible Lens shift Funktion Eco Mode Kensington Slot 360° installable Picture-in-Picture PJLink™ Lan network compatible. Crestron®-Software compatible. 4 Segment RYGB Colour Wheel. Extron
Real Full HD 3D
