Brief Introduction
Beta 2.5 |

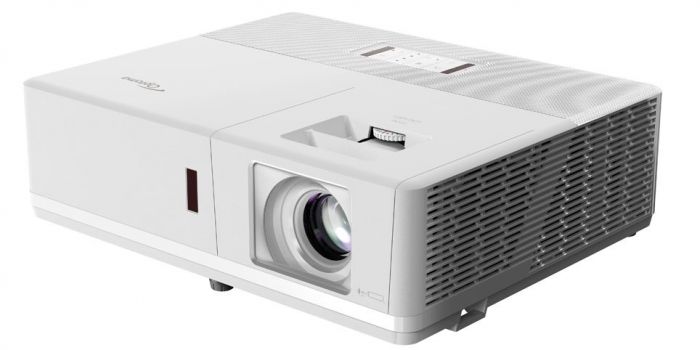

The standard portable DZ500 3D Laser DLP projector from Optoma has 5500 ANSI lumens, a contrast ratio of 250000:1, and HDTV 1920 x 1080 resolution. Thanks to the laser, the projector has a light life of 30,000 hours, which is equivalent to over 20.5 years at 4 hours per day. The projector also offers a lens shift function for flexible projection adjustment without any loss of quality. An image width of up to 753 cm is possible; if the image width is smaller (we recommend max. 502 cm), even rooms with residual light are no problem. If the image is still too small, the integrated edge blending software can help to project a large image with additional projectors. The model is also Full HD 1080P and 3D compatible. Even projection onto the ceiling is possible thanks to the 360? projection. The model was built by Optoma in 2022 and is no longer current.
|
| Display Type |
1 x DLP Chip
HDTV 16/9 Ti Digital Light Processing Chip
|
| Ansi-Lumen |
Projector |
5500 |
Screen |
2444 Lux (200 cm Screen width) |
| Contrast |
250000:1 full on/off |
250000:1 full on/off
|
| Black Level |
0,0220 min. Lumen |
0,01 min. Lumen |
| Lens shift |
Vert.: +68% --83%
|
| Resolution |
HDTV 1920 x 1080
2.073.600 Pixel |
| Video Modes |
Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p, 3D, EDTV 480p, 576p |
| 3D Compatibility |
Frame-Packing (Full HD 3D) | Side-by-Side | Top-and-Bottom
Frame Sequential (3D Ready) |
| Application |
Standard-Portabel | External training and company presentations, as well as product presentations.
Wide screen width or rooms with plenty of light (over 200 lumens). |
| Light Source |
Laser
Article Nr.: BR-3075W / 45.79P01G001A
|
|
| Light Life |
30000 h. |
| Operating Costs |
0,00 € Laser
|
|
280 - 448 cm
|
 |
|
Lux: |
2444 Lux |
|
Room light max.: |
489 Lux |
|
Candela pro m²: |
778 cd/m² |
|
Foot-Lamberts: |
227 fL |
|
 |
| 77 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Manual |
| Zoom |
Manual x1,6 |
| Objective |
f=20,91-32,62 mm |
| Throw Ratio |
1,4-2,24:1 show |
| Audio |
2 x 10W |
| Connections |
HDMI 2.0 in
HDMI 1.4a (3D support)
D-sub 15pin in und out
Cinch Video in
Cinch Stereo in
Mini Jack Audio in und out
USB in
12V Trigger
RS232C Din 9 pin in
RJ45 in
 |
| Ceiling Mounting |
Yes, is possible. |
| Power |
341 / 190W in Eco Mode |
| Size WxHxD |
374 x 117 x 302 mm (14,7"x4,6"x11,9") 13,21 L/dm³
|
| Operating Noise |
33 / 28 dB in Eco Mode |
Key: 162 cm
Shift: 77 cm |
Key: 162 cm |
| Key: 162 cm |
| |
|
|
| Weight |
5,50 kg / 12,13 lbs. |
| Keystone |
Vert.: +/-30°
Hori.: +/-30°
|
| Illumination |
- |
| Frequenz |
H-sync: 15,37-91,1 kHz
V-sync: 50-85 Hz
|
| Foot-Lamberts |
227 fL
/ max. 753 cm screen width |
| Candela m² |
778 cd/m² |
| Features |
 Real Full HD 3D
Full HD 1080P compatible
Lens shift Funktion
Eco Mode
Kensington Slot
360° installable
24/7 continuous operation capable
Edge Blending
Password protection
Lan network compatible.
|
|
Optional only
Google TV /
Fire TV /
Apple TV /
Roku TV /
Xiaomi TV Ads |
In Comparison
The Optoma DZ500 compared to others not current "Standard-Portabel" projectors. |
| Ansi-Lumen: |
|
78 |
Weight: |
|
53 |
| Contrast: |
|
5 |
dB: |
|
69 |
| Black level: |
|
100 |
Power cons.: |
|
34 |
| Picture Total Points: | 61 |
Projector Total Points: | 52 |
|
| Popularity Top 100 |
|
| Points: |
|
8 |
| Ranking: |
3061 (From: 7662) |
|
|
|
|
|
| Status |
2022 Discontinued (EOL) // Last update of the data: 2024-10-02
Created: 2022-09-30 10:58:12
|
