Brief Introduction
Beta 2.5 |

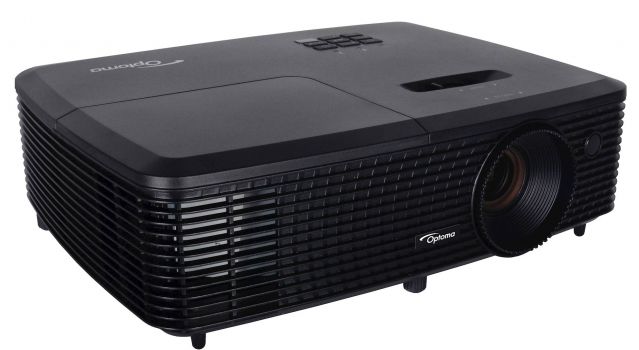

The Optoma DS347 3D DLP projector has 3000 Ansi lumens, a contrast of 20000:1 and an SVGA 800 x 600 resolution. The lamp life is specified by the manufacturer as 5000 hours, which converts to over 6.8 years at 2 hours per day. 3000 Ansi lumens ensure that a picture width of 477 cm is also possible. However, if room light is available, the picture should be max. 318 cm wide. A smartphone with MHL connection can be connected directly to the MHL/HDMI port and transmit a 1080p / 60 Hz image mirroring (screen mirroring) while the smartphone is being charged at the same time. Playing 1080P and 3D is also no problem for the projector. At just 29 decibels, the device is one of the quieter projectors. It was launched in 2019 and is no longer offered by the manufacturer Optoma.
|
| Display Type |
DLP Chip
SVGA 4/3 Ti Digital Light Processing Chip
|
| Ansi-Lumen |
Projector |
3000 |
Screen |
1000 Lux (200 cm Screen width) |
| Contrast |
20000:1 |
20000:1
|
| Black Level |
0,1500 min. Lumen |
0,05 min. Lumen |
| Offset |
65% show
|
| Resolution |
SVGA 800 x 600
480.000 Pixel |
| Video Modes |
Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p, 3D, EDTV 480p, 576p |
| 3D Compatibility |
Frame-Packing (Full HD 3D) | Side-by-Side | Top-and-Bottom
Frame Sequential (3D Ready) |
| Application |
Standard-Portabel | External training and company presentations, as well as product presentations.
Medium screen width or rooms with a little more ambient light, max. 200 lumens. |
| Light Source |
195W Lamp
Article Nr.: SP.71P01GC01 / BL-FU195B
|
|
| Light Life |
5000 / 6000 h. in Eco Mode |
| Operating Costs |
|
|
388 - 432 cm
|
 |
|
Lux: |
1000 Lux |
|
Room light max.: |
200 Lux |
|
Candela pro m²: |
319 cd/m² |
|
Foot-Lamberts: |
93 fL |
|
 |
| 98 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Manual |
| Zoom |
Manual 1,1 |
| Objective |
f=21,85-24,01 mm |
| Throw Ratio |
1,94-2,16:1 show |
| Audio |
1 x 2W |
| Connections |
2 x HDMI in (1xMHL)
Mini Jack Audio out
USB in |
| Ceiling Mounting |
Yes, is possible. |
| Power |
225W / 187W in Eco Mode |
| Size WxHxD |
298 x 96 x 230 mm (11,7"x3,8"x9,1") 6,58 L/dm³
|
| Operating Noise |
29dB |
|
| Weight |
2,17 kg / 4,78 lbs. |
| Keystone |
Vert.: +/-40°
|
| Illumination |
- |
| Frequenz |
H-sync: 15,3-91,1 kHz
V-sync: 24-120 Hz
|
| Foot-Lamberts |
93 fL
/ max. 477 cm screen width |
| Candela m² |
319 cd/m² |
| Features |
 Real Full HD 3D
Full HD 1080P compatible
Eco Mode
Kensington Slot
|
|
über HDMI MHL |
In Comparison
The Optoma DS347 compared to others not current "Standard-Portabel" projectors. |
| Ansi-Lumen: |
|
28 |
Weight: |
|
99 |
| Contrast: |
|
1 |
dB: |
|
97 |
| Black level: |
|
100 |
Power cons.: |
|
98 |
| Picture Total Points: | 43 |
Projector Total Points: | 98 |
|
| Popularity Top 100 |
|
| Points: |
|
7 |
| Ranking: |
3237 (From: 7662) |
|
|
|
|
|
| Status |
2019 Discontinued (EOL) // Last update of the data: 2023-09-20
