Brief Introduction
Beta 2.5 |

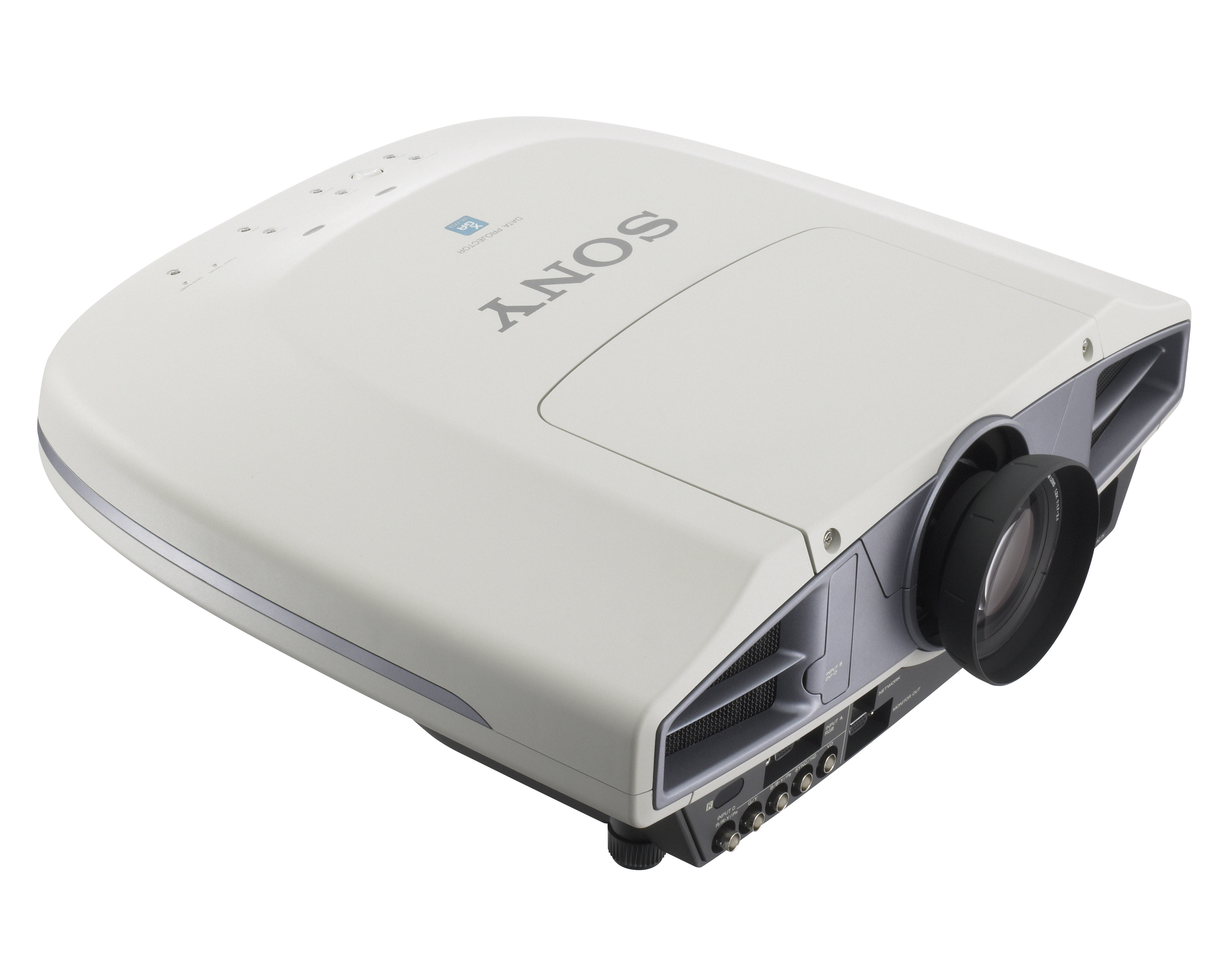

The Sony model VPL FX52/L is an LCD projector with XGA 1024 x 768 resolution and a contrast of 1000:1. The built-in lens shift and keystone correction function provides freedom when setting up. 6000 Ansi lumens ensure that a picture width of 675 cm is also possible. The projector creates rooms with residual light with a smaller image width, max. 450 cm is recommended. The model built in 2005 is no longer offered by Sony, but is still very popular in our projector database.
|
| Display Type |
3 x 1,3" LCD TFT Panel mit MLA
XGA 4/3 Liquid Crystal Display with Micro Lense Array
|
| Ansi-Lumen |
Projector |
6000 / 5100 im Eco Mode |
Screen |
2000 Lux (200 cm Screen width) |
| Contrast |
1000:1 full on/off |
1000:1 full on/off
|
| Black Level |
6,0000 min. Lumen |
2,006 min. Lumen |
| Lens shift |
Vert.: +/-50% motorisch
|
| Resolution |
XGA 1024 x 768
786.432 Pixel
UXGA 1600 x 1200 compressed |
| Video Modes |
NTSC, PAL, SECAM, NTSC4.43, PAL-M, PAL-N HDTV und DTV |
| Application |
Stationary | Permanent installation in the training room and meeting room as well as the conference room.
Very large screen width and rooms with plenty of light and shaded daylight. |
| Light Source |
300W UHP-Lampe
Article Nr.: LMP-F300
|
|
| Light Life |
2500 h. |
| Operating Costs |
-
|
|
380 - 460 cm
|
 |
|
Lux: |
2000 Lux |
|
Room light max.: |
400 Lux |
|
Candela pro m²: |
637 cd/m² |
|
Foot-Lamberts: |
186 fL |
|
 |
| 75 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Powered |
| Zoom |
Powered 1,26 |
| Objective |
F=1,7-2,0 f=50,8-64,0 mm / FX52L optional |
| Throw Ratio |
1,9-2,3:1 show |
| Audio |
nein |

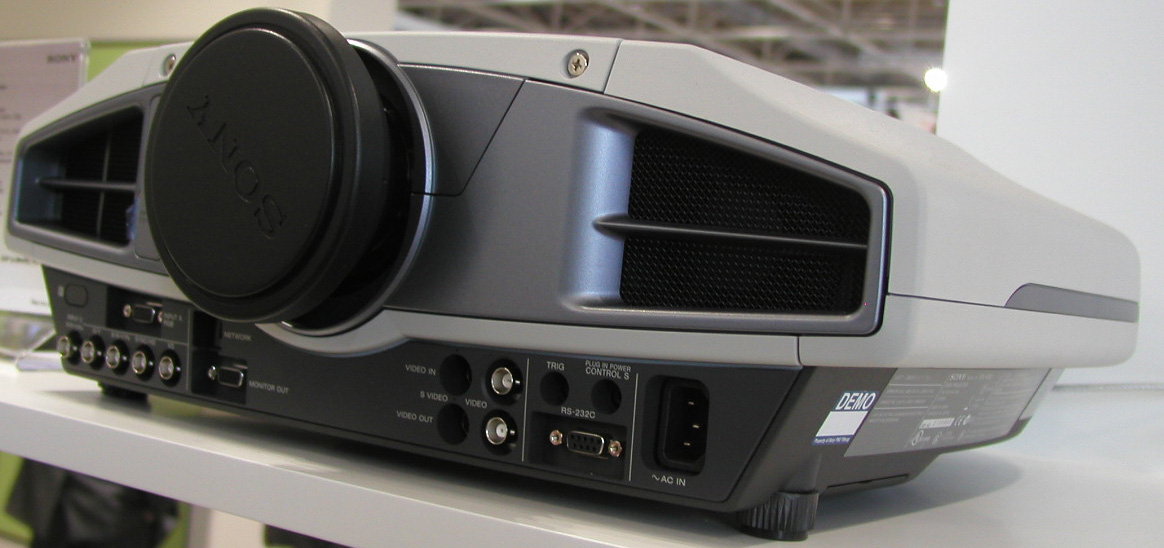

| Connections |
5 x BNC RGBHV in
1 x Video BNC in 1 x out
DVI-I in
D sub 15pin out
S-Video in und out
RS232C in
RJ45 in
PCMCIA in
12V Trigger |
| Ceiling Mounting |
Yes, is possible. |
| Power |
400W / standby 5W |
| Size WxHxD |
479,5 x 169 x 502 mm (18,9"x6,7"x19,8") 40,64 L/dm³
|
| Operating Noise |
35dB |
|
| Weight |
10,50 kg / 22,05 lbs. |
| Keystone |
Vert.: +/-20°
|
| Illumination |
- |
| Frequenz |
H-sync: 19-92 kHz
V-sync: 48-92 Hz
|
| Foot-Lamberts |
186 fL
/ max. 675 cm screen width |
| Candela m² |
637 cd/m² |
| Features |
 Lens shift Funktion motorisch
Freeze
Eco Mode
Gamma correction
Password protection
Control via web browser
Optional Wi-Fi network compatible.
Lan network compatible.
Network Lan capability (direct access to the Internet)
Improved APA (Auto Pixel Alignment)
3D gamma correction Projector can be tilted 90 degrees up or down
Images can be stored on the projector.
Digital zoom
|
|
- |
In Comparison
The Sony VPL FX52/L compared to others not current "Stationary" projectors. |
| Ansi-Lumen: |
|
59 |
Weight: |
|
98 |
| Contrast: |
|
1 |
dB: |
|
95 |
| Black level: |
|
82 |
Power cons.: |
|
96 |
| Picture Total Points: | 47 |
Projector Total Points: | 96 |
|
| Popularity Top 100 |
|
| Points: |
|
50 |
| Ranking: |
135 (From: 2514) |
|
|
|
|
|
|
Optional Lenses |
|
| Name | Ratio | Distance | Shift V | Shift H | Zoom |
| VPLL-ZM101 | 3.35-4.93:1 | 670-986 m |
+/-50% |
|
Manual |
| VPLL-ZM31 | 1.55-1.62:1 | 310-324 m |
+/-50% |
|
Manual |
| VPLL-FM21 | 0.89:1 | 178 m |
0.0% Fix |
|
No Zoom |
|
| Status |
2005 Discontinued (EOL) // Last update of the data: 2025-03-03
|
