Brief Introduction
Beta 2.5 |

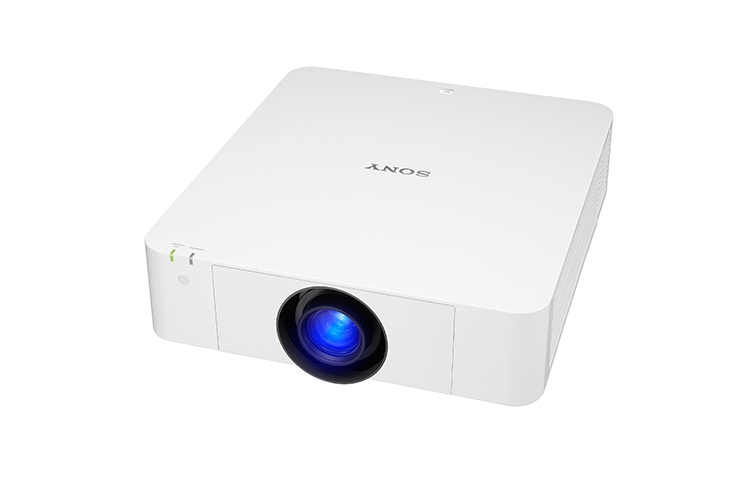

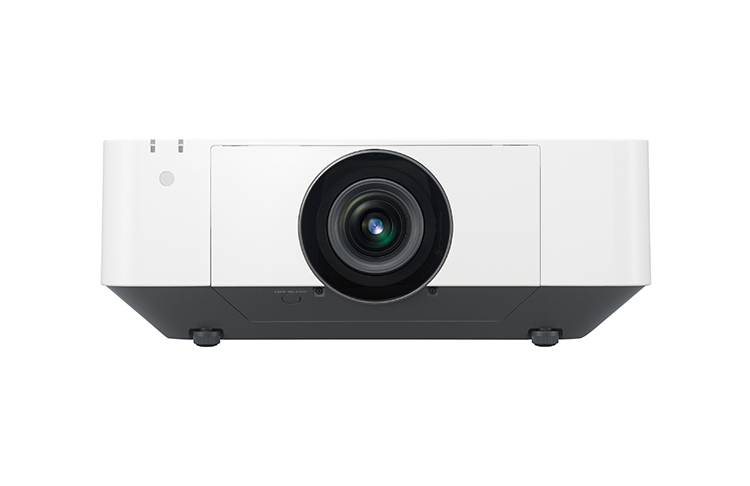

The Sony VPL FHZ66 B/W laser LCD projector has 6100 Ansi lumens, a contrast of 500000:1 and a WUXGA 1920 x 1200 resolution. The manufacturer specifies a laser service life of 20000 hours, which is over 13.7 years if enjoyed for four hours a day. With the lens shift function, the projector can be positioned very freely. 6100 Ansi lumens ensure that a picture width of 794 cm is also possible. The projector manages rooms with residual light with a smaller image width, we recommend a maximum of 529 cm. If the image is still too small, the integrated edge blending software can help to project a larger image with additional projectors. Even 1080P video signals are no problem for the projector, and it even has the option of projecting HD 1080P Blu-rays onto the ceiling using 360° projection. At 28 decibels, the projector is very quiet compared to other projectors. The model built in 2018 is no longer offered by Sony.
|
| Display Type |
3 x 0,76" LCD TFT Panel
WUXGA 16/9 Liquid Crystal Display
|
| Ansi-Lumen |
Projector |
6100 |
Screen |
2711 Lux (200 cm Screen width) |
| Contrast |
500000:1 full on/off |
500000:1 full on/off
|
| Black Level |
0,0122 min. Lumen |
0,005 min. Lumen |
| Lens shift |
Vert.: +60% -5% Hori.: +/-32% motorisch
|
| Resolution |
WUXGA 1920 x 1200
2.304.000 Pixel |
| Video Modes |
Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p EDTV 480p, 576p |
| Application |
Stationary | Permanent installation in the training room and meeting room as well as the conference room.
Very large screen width and rooms with plenty of light and shaded daylight. |
| Light Source |
Laser
Article Nr.: / L optional
|
|
| Light Life |
20000 h. |
| Operating Costs |
0,00 € Laser
|
|
278 - 446 cm
|
 |
|
Lux: |
2711 Lux |
|
Room light max.: |
542 Lux |
|
Candela pro m²: |
863 cd/m² |
|
Foot-Lamberts: |
252 fL |
|
 |
| 68 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Powered |
| Zoom |
Powered 1,6 |
| Objective |
|
| Throw Ratio |
optional |
| Audio |
- |
| Connections |
HDMI in
DVI-D mit HDCP in
D-sub 15pin in und out
BNC Video in
Mini Jack Audio in und out
RS232C Din 9 pin in
RJ45 mit HDBaseT in
5V Trigger out |
| Ceiling Mounting |
Yes, is possible. |
| Power |
497W |
| Size WxHxD |
460 x 169 x 515 mm (18,1"x6,7"x20,3") 40,04 L/dm³
|
| Operating Noise |
28dB |
Key: 161 cm
Shift: 68 cm |
Key: 161 cm
Shift: 64 cm |
| Key: 161 cm
Shift: 64 cm |
| |
|
|
| Weight |
16,00 kg / 35,27 lbs. |
| Keystone |
Vert.: +/-30°
Hori.: +/-30°
|
| Illumination |
- |
| Frequenz |
H-sync: 15-92 kHz
V-sync: 48-92 Hz
|
| Foot-Lamberts |
252 fL
/ max. 794 cm screen width |
| Candela m² |
863 cd/m² |
| Features |
 Full HD 1080P compatible
Lens shift Funktion motorisch
Eco Mode
360° installable
Edge Blending
Lan network compatible.
|
|
Optional only
Google TV /
Fire TV /
Apple TV /
Roku TV /
Xiaomi TV Ads |
In Comparison
The Sony VPL FHZ66 B/W compared to others not current "Stationary" projectors. |
| Ansi-Lumen: |
|
60 |
Weight: |
|
95 |
| Contrast: |
|
10 |
dB: |
|
97 |
| Black level: |
|
100 |
Power cons.: |
|
94 |
| Picture Total Points: | 57 |
Projector Total Points: | 95 |
|
| Popularity Top 100 |
|
| Points: |
|
31 |
| Ranking: |
644 (From: 2514) |
|
|
|
|
|
|
Optional Lenses |
|
| Name | Ratio | Distance | Shift V | Shift H | Zoom |
| Z3032 | 3.18-4.84:1 | 636-968 m |
60-5% |
+/-32% |
Powered |
| Z3024 | 2.34-3.19:1 | 468-638 m |
60-5% |
+/-32% |
Powered |
| Z3009 | 0.85-1:1 | 170-200 m |
60-5% |
+/-32% |
Powered |
| VPLL-3007 | 0.65:1 | 130 m |
0.00% Fix |
+/-32% |
No Zoom |
|
| Status |
2018 Discontinued (EOL) // Last update of the data: 2023-08-04
