Brief Introduction
Beta 2.5 |
With the VPL DW125, manufacturer Sony offers a standard portable LCD projector with WXGA 1280 x 800 resolution and a contrast of 2500:1. The projector will be able to illuminate an image width of 518 cm well. However, if room light is available, the picture width should ideally not exceed 345 cm. Furthermore, the projector can play 1080P without any problems. The projector was launched in 2012 and is no longer sold by the manufacturer.
|
| Display Type |
3 x 0,59" LCD TFT Panel
WXGA 16/10 Liquid Crystal Display
|
| Ansi-Lumen |
Projector |
2600 / 1900 im Eco Mode |
Screen |
1040 Lux (200 cm Screen width) |
| Contrast |
2500:1 full on/off |
2500:1 full on/off
|
| Black Level |
1,0400 min. Lumen |
0,416 min. Lumen |
| Offset |
-
|
| Resolution |
WXGA 1280 x 800
1.024.000 Pixel
UXGA 1600 x 1200 compressed |
| Video Modes |
Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p EDTV 480p, 576p |
| Application |
Standard-Portabel | External training and company presentations, as well as product presentations.
Medium screen width or rooms with little light, max. 100 lumens. |

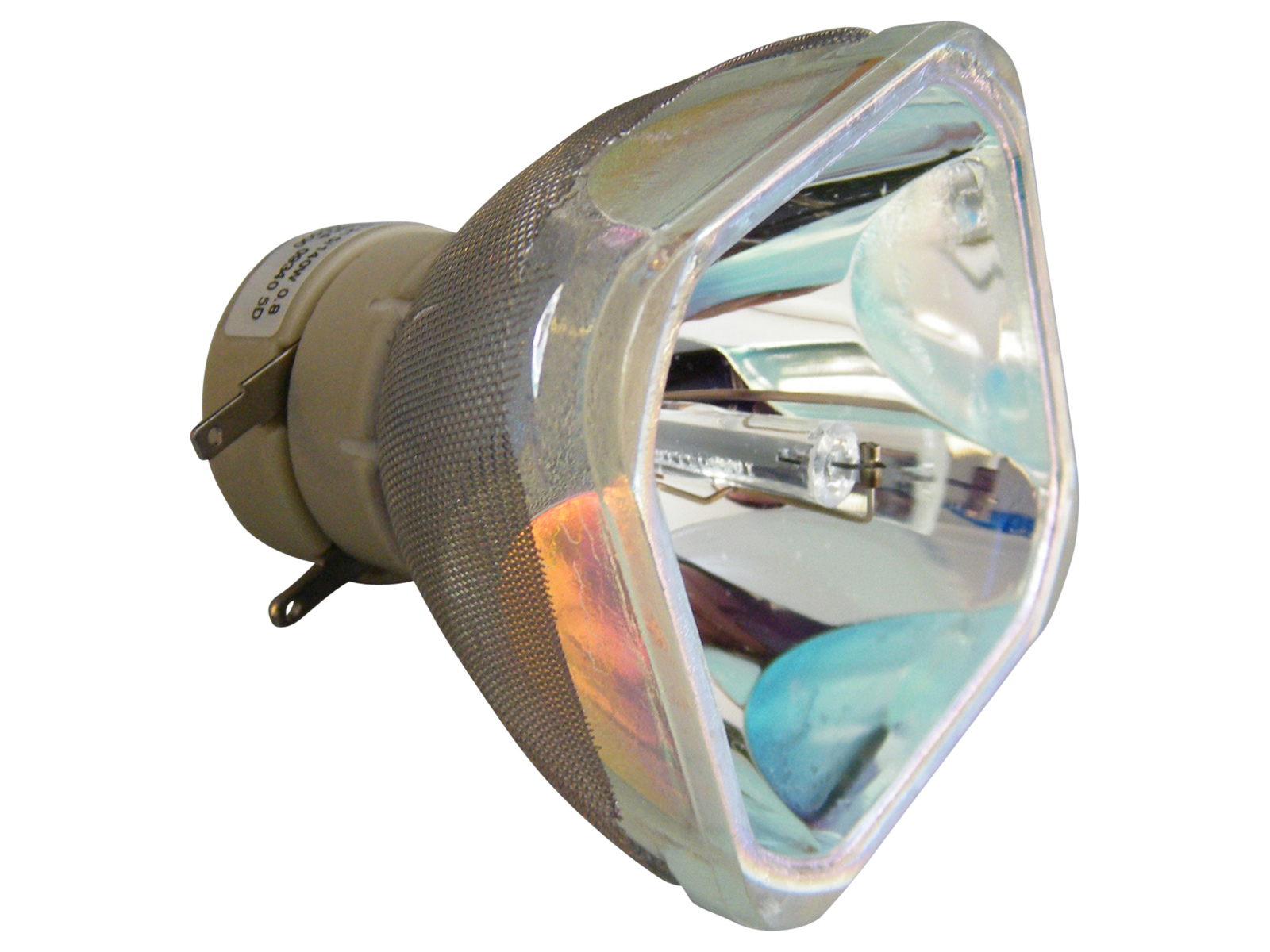

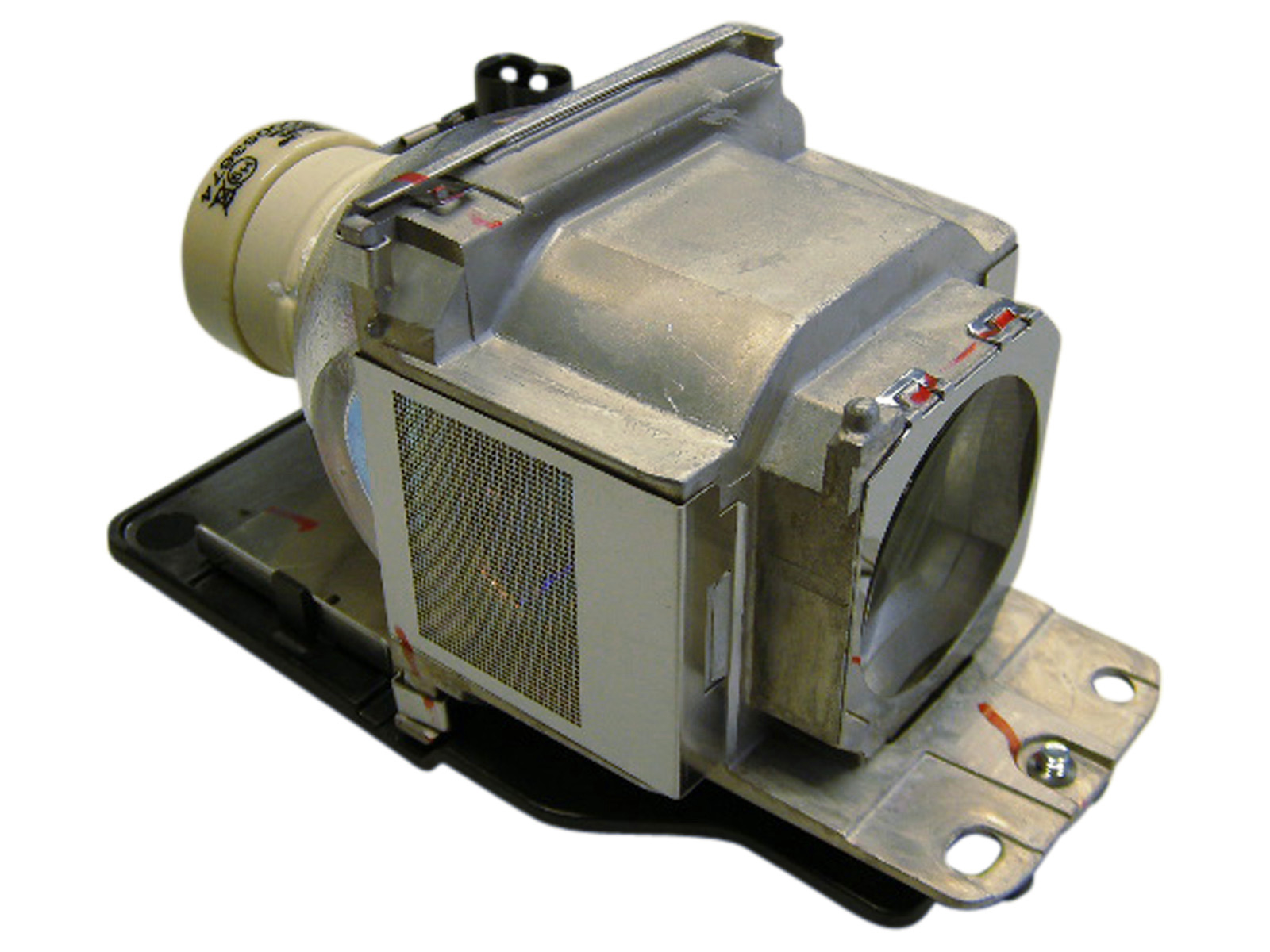

| Light Source |
210W Lamp
Article Nr.: LMP-D213
|
|
| Light Life |
3000 h. 7000 h. in eco Mode |
| Operating Costs |
|
|
288 - 374 cm
|
 |
|
Lux: |
1040 Lux |
|
Room light max.: |
208 Lux |
|
Candela pro m²: |
332 cd/m² |
|
Foot-Lamberts: |
97 fL |
|
 |
|
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Manual |
| Zoom |
Manual 1,3 |
| Objective |
- |
| Throw Ratio |
1,44-1,87:1 show |
| Audio |
1 x 1W Mono |
| Connections |
HDMI in
D-sub 15 pin in
Cinch Video in
USB Typ A,B
RJ45 in
 |
| Ceiling Mounting |
Yes, is possible. |
| Power |
280 / 217W in Eco Mode |
| Size WxHxD |
315 x 87,2 x 233 mm (12,4"x3,4"x9,2") 6,39 L/dm³
|
| Operating Noise |
- |
|
| Weight |
2,50 kg / 5,51 lbs. |
| Keystone |
Vert.: +/-20°
|
| Illumination |
- |
| Frequenz |
H-sync: 15-92 kHz
V-sync: 48-92 Hz
|
| Foot-Lamberts |
97 fL
/ max. 518 cm screen width |
| Candela m² |
332 cd/m² |
| Features |
 Full HD 1080P compatible
Direkt Power Off
Freeze
Eco Mode
Lan network compatible.
Crestron®-Software compatible.
Digital Zoom X4
|
|
Optional only
Google TV /
Fire TV /
Apple TV /
Roku TV /
Xiaomi TV Ads |
In Comparison
The Sony VPL DW125 compared to others not current "Standard-Portabel" projectors. |
| Ansi-Lumen: |
|
24 |
Weight: |
|
99 |
| Contrast: |
|
1 |
dB: |
|
0 |
| Black level: |
|
97 |
Power cons.: |
|
98 |
| Picture Total Points: | 41 |
Projector Total Points: | 0 |
|
| Popularity Top 100 |
|
| Points: |
|
6 |
| Ranking: |
5185 (From: 7662) |
|
|
|
|
|
| Status |
2012 Discontinued (EOL) // Last update of the data: 2023-09-20
Created: 2012-10-05 14:15:58
|
| Data |
 Product Sheet english
Product Sheet english HC
User Manual english (3.46 MB)
|
Sony Website
