| Customer review |
|
 |
|
| Display Type |
7" ESF CRT
4/3 Electrostatically Focused Tube
|
| Ansi-Lumen |
Projector |
150 / 650 Lumen |
Screen |
50 Lux (200 cm Screen width) |
| Contrast |
- |
-
|
| Black Level |
- |
- |
| Offset |
-
|
| Resolution |
- |
| Video Modes |
PAL, NTSC, NTSC 4.43/3,58 Secam |
| Application |
CRT Projection | Very narrow picture width and rooms with very little light. |
| Light Source |
CRT Röhre
|
|
| Light Life |
ca. 10000 - 20000 h. (je nach Anwendung) |
| Operating Costs |
-
|
|
|
 |
|
Lux: |
50 Lux |
|
Room light max.: |
10 Lux |
|
Candela pro m²: |
17 cd/m² |
|
Foot-Lamberts: |
5 fL |
|
 |
|
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Manual |
| Zoom |
No Zoom |
| Objective |
2 x Tac4 1 x Tac4B |
| Throw Ratio |
- |
| Audio |
- |
| Connections |
Kontrol in und out
1x BNC Video in und out
S-Video
5 x BNC in
 |
| Ceiling Mounting |
Yes, is possible. |
| Power |
- |
| Size WxHxD |
540 x 290 x 600 mm (21,3"x11,4"x23,6") 93,96 L/dm³
|
| Operating Noise |
- |
|
| Weight |
33,00 kg / 72,75 lbs. |
| Keystone |
- |
| Illumination |
- |
| Frequenz |
H-sync: 15 kHz
V-sync: 50-60 Hz
|
| Foot-Lamberts |
5 fL
/ max. 107 cm screen width |
| Candela m² |
17 cd/m² |
| Features |
 Remote control with backlight
Analogue convergence setting, can also be readjusted by remote control
|
|
- |
In Comparison

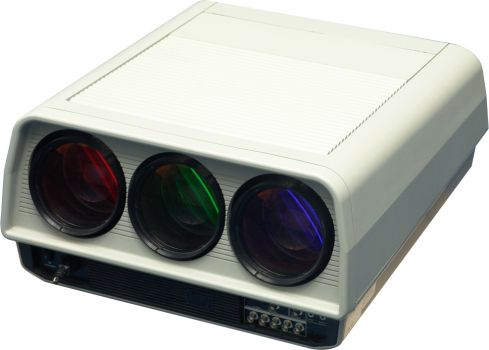

The Sony VPH V20M compared to others not current "CRT Projection" projectors. |
| Ansi-Lumen: |
|
1 |
Weight: |
|
98 |
| Contrast: |
|
0 |
dB: |
|
0 |
| Black level: |
|
1 |
Power cons.: |
|
0 |
| Picture Total Points: | 0 |
Projector Total Points: | 0 |
|
| Popularity Top 100 |
|
| Points: |
|
42 |
| Ranking: |
48 (From: 472) |
|
|
|
| In Test
|
-
|
|
|
| Status |
- Discontinued (EOL) // Last update of the data: 2023-08-04
|
