Brief Introduction
Beta 2.5 |

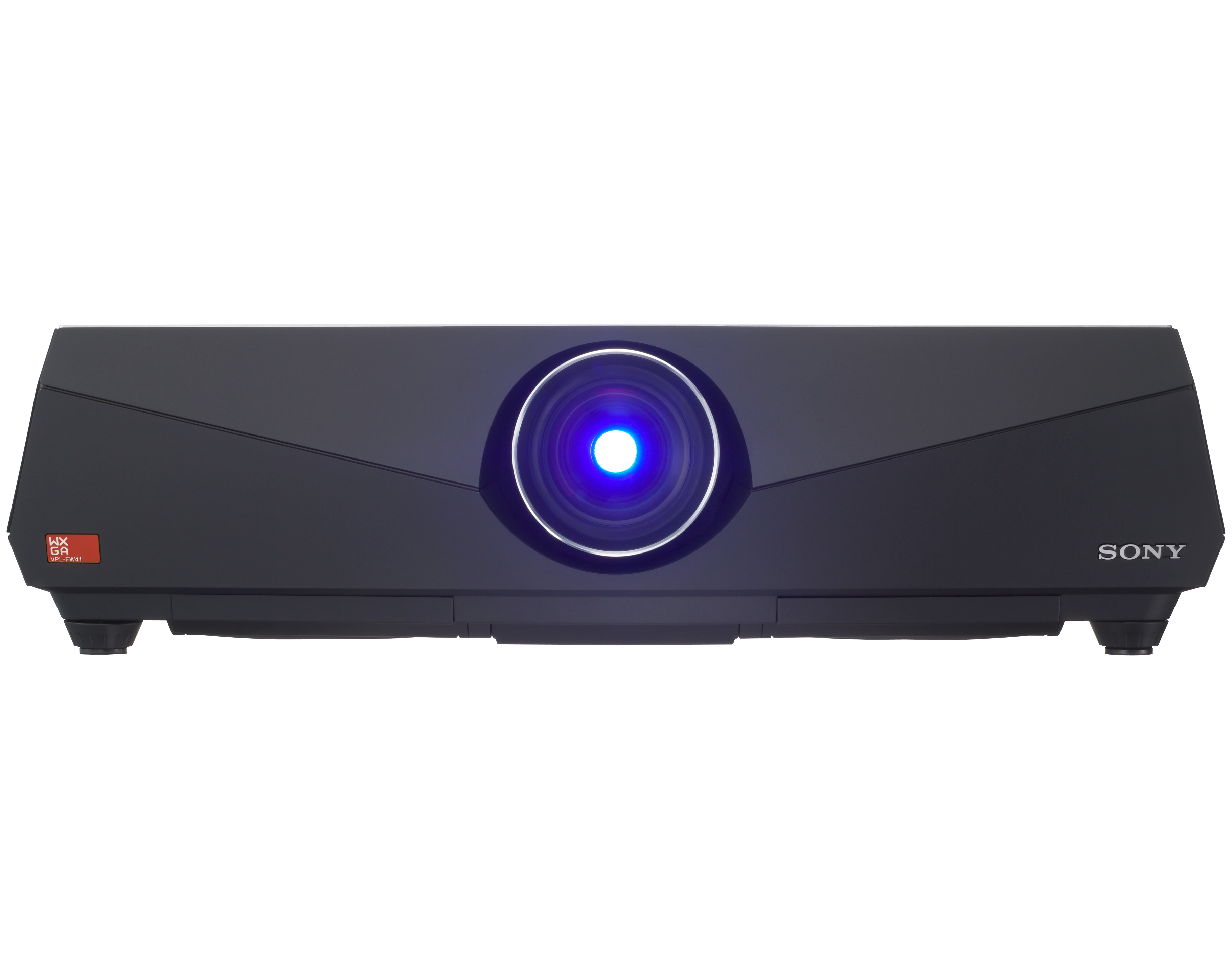

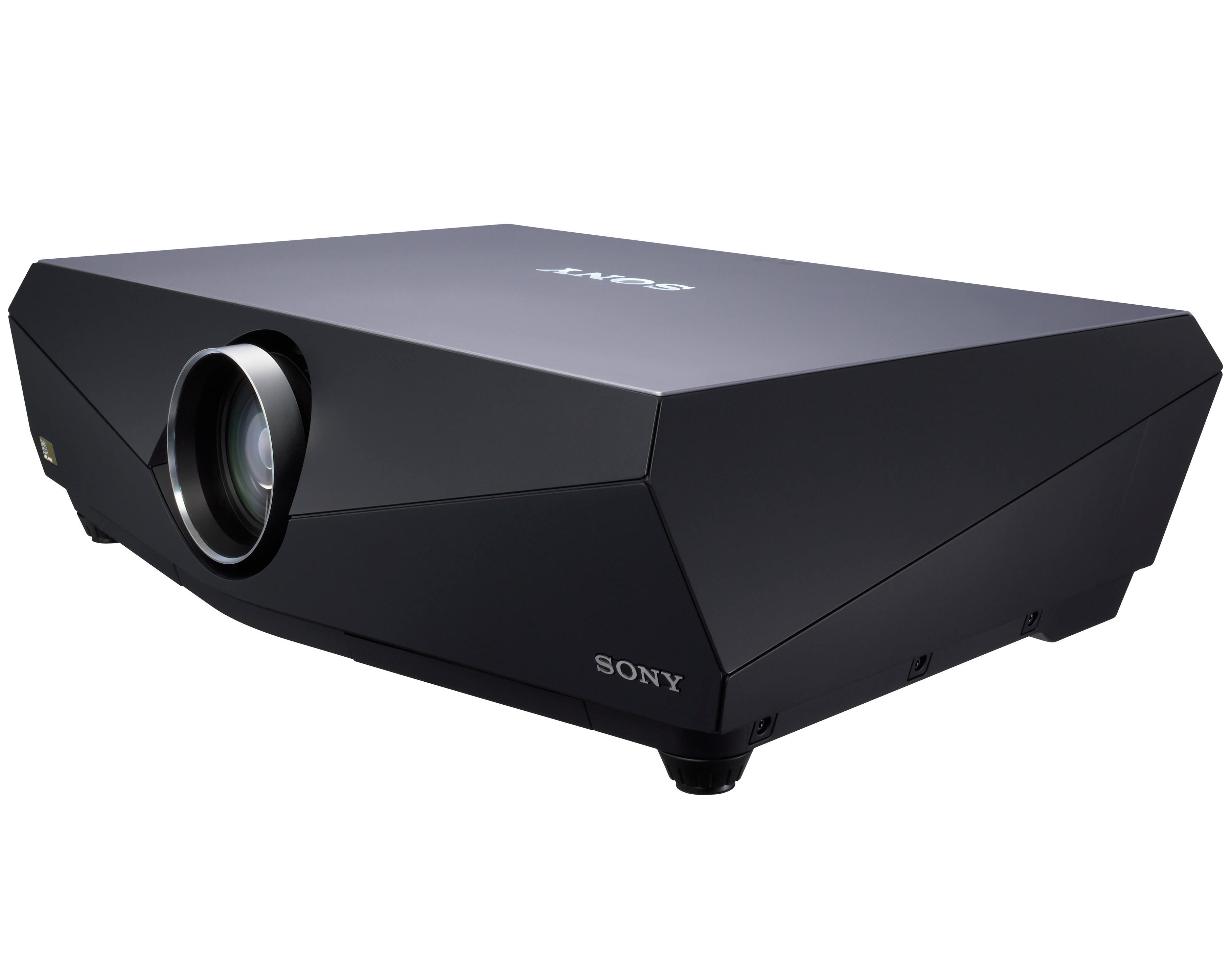

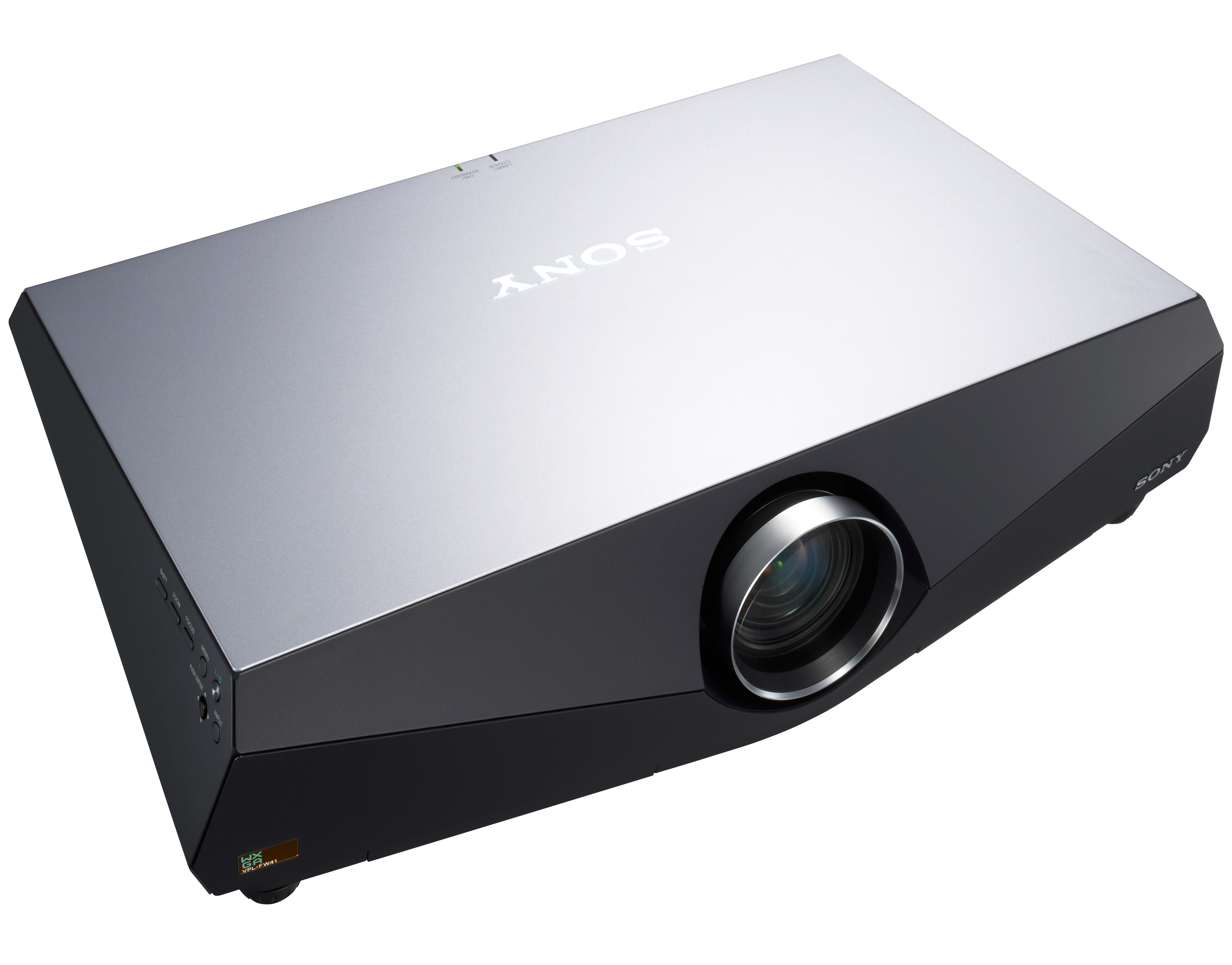

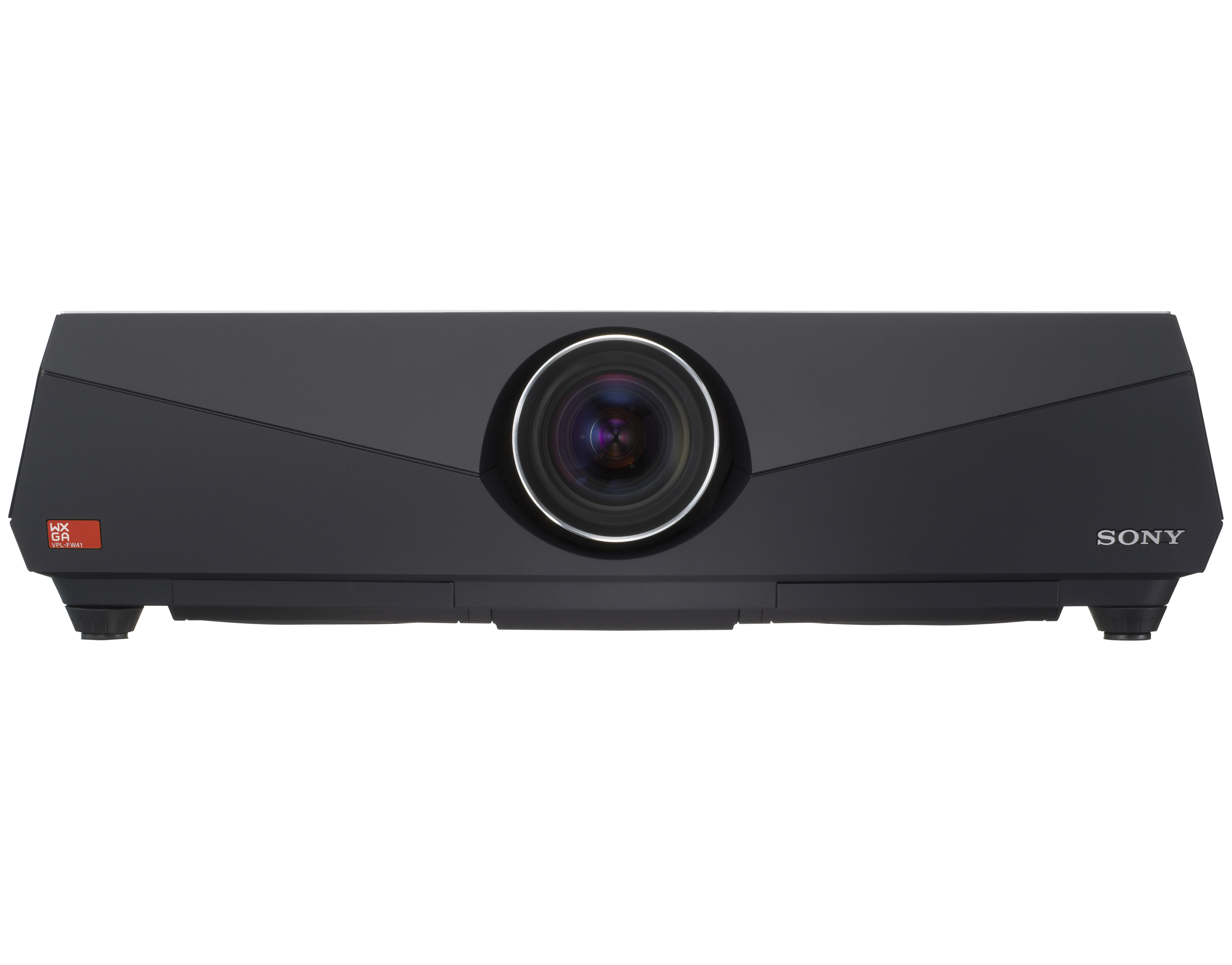

The Sony VPL FW41/L LCD projector has 4500 Ansi lumens, a contrast of 700:1 and a WXGA 1280 x 800 resolution. The built-in lens shift and keystone correction function provides freedom when setting up. An image width of up to 682 cm is possible as the projector has 4500 Ansi lumens. The projector can create rooms with residual light with a smaller image width, we recommend a maximum of 455 cm. Furthermore, the projector can play 1080P without any problems. On the market since 2009, the model is no longer offered by the manufacturer Sony.
|
| Display Type |

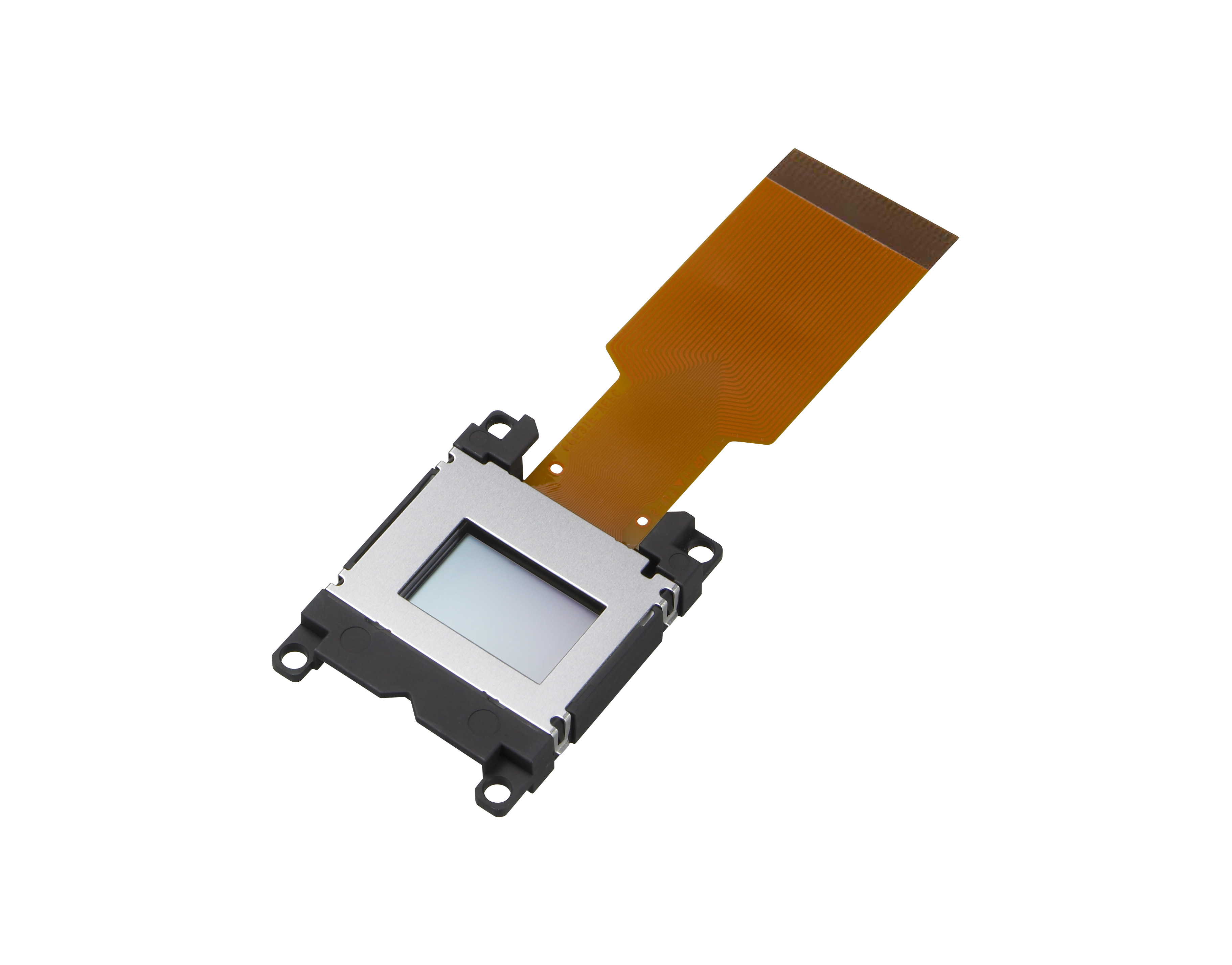

3 x 0,75" LCD TFT Panel
WXGA 16/10 Liquid Crystal Display
|
| Ansi-Lumen |
Projector |
4500 / 3600 im Eco Mode |
Screen |
1800 Lux (200 cm Screen width) |
| Contrast |
700:1 full on/off |
700:1 full on/off
|
| Black Level |
6,4286 min. Lumen |
2,581 min. Lumen |
| Lens shift |
Vert.: +65% -0% Hori.: +/-10% motorisch
|
| Resolution |
WXGA 1280 x 800
1.024.000 Pixel
UXGA 1600 x 1200 compressed |
| Video Modes |
PAL, SECAM, NTSC, HDTV 720p, 1080i, 1080p EDTV 480p, 576p |
| Application |
Stationary | Permanent installation in the training room and meeting room as well as the conference room.
Wide screen width or rooms with plenty of light (over 200 lumens). |
| Light Source |

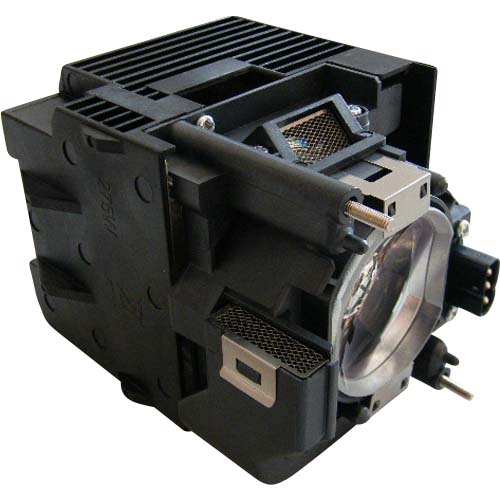

275W Lamp
Article Nr.: LMP-F270
|
|
| Light Life |
2000 h. 3000 h. in Eco Mode |
| Operating Costs |
-
|
|
375 - 476 cm
|
 |
|
Lux: |
1800 Lux |
|
Room light max.: |
360 Lux |
|
Candela pro m²: |
572 cd/m² |
|
Foot-Lamberts: |
167 fL |
|
 |
| 81 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Powered |
| Zoom |
Powered 1,3 |
| Objective |
F=1,66-2,18 f=30,6-39,7 mm |
| Throw Ratio |
1,875-2,381:1 show |
| Audio |
2 x 1,8W |
| Connections |
HDMI in
2 x D-sub 15pin in 1 x out
5 x BNC RGBHV in
S-Video in
Cinch Video in
Mini Jack in
RJ45 in
RS232C Din 9pin in
 |
| Ceiling Mounting |
Yes, is possible. |
| Power |
400W |
| Size WxHxD |
532 x 145 x 352 mm (20,9"x5,7"x13,9") 27,15 L/dm³
|
| Operating Noise |
35 / 28 dB in Eco Mode |
Key: 217 cm
Shift: 81 cm |
Shift: 20 cm
|
|
Shift: 20 cm
|
| |
|
|
| Weight |
9,80 kg / 21,61 lbs. |
| Keystone |
Vert.: +/-30°
|
| Illumination |
- |
| Frequenz |
H-sync: 19-92 kHz
V-sync: 48-92 Hz
|
| Foot-Lamberts |
167 fL
/ max. 682 cm screen width |
| Candela m² |
572 cd/m² |
| Features |
 Full HD 1080P compatible
Lens shift Funktion motorisch
Freeze
Eco Mode
Kensington Slot
Password protection
PJLink™
Control via web browser
Lan network compatible.
De-interlacer mir 3:2 2:2 pull down.
|
|
Optional only
Google TV /
Fire TV /
Apple TV /
Roku TV /
Xiaomi TV Ads |
In Comparison
The Sony VPL FW41/L compared to others not current "Stationary" projectors. |
| Ansi-Lumen: |
|
44 |
Weight: |
|
98 |
| Contrast: |
|
1 |
dB: |
|
95 |
| Black level: |
|
81 |
Power cons.: |
|
96 |
| Picture Total Points: | 42 |
Projector Total Points: | 96 |
|
| Popularity Top 100 |
|
| Points: |
|
21 |
| Ranking: |
1233 (From: 2514) |
|
|
|
|
|
|
Optional Lenses |
|
| Name | Ratio | Distance | Shift V | Shift H | Zoom |
| VPLL-Z1032 | 3.66-5.41:1 | 732-1082 m |
65% |
+/-10% |
Powered |
| VPLL-Z1024 | 2.68-3.65:1 | 536-730 m |
65% |
+/-10% |
Powered |
| VPLL-Z1014 | 1.59-2.11:1 | 318-422 m |
65% |
+/-10% |
Powered |
| VPLL-1008 | 0.89:1 | 178 m |
0.0% Fix |
+/-10% |
No Zoom |
|
| Status |
2009 Discontinued (EOL) // Last update of the data: 2023-08-04
|
| Data |
 Product Sheet english
Product Sheet english HC
Product Sheet japanisch
User Manual english Netzwerk (1.71 MB)

|
Sony Website
