Brief Introduction
Beta 2.5 |

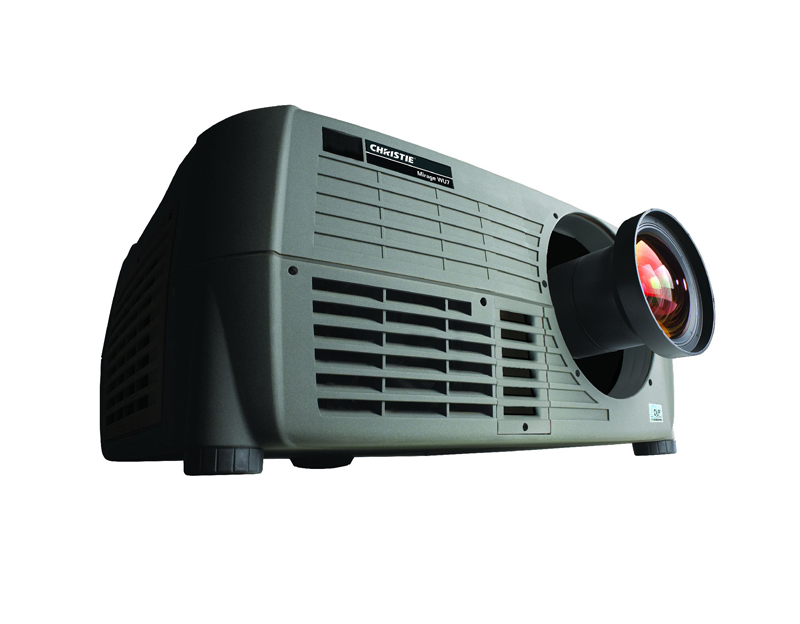

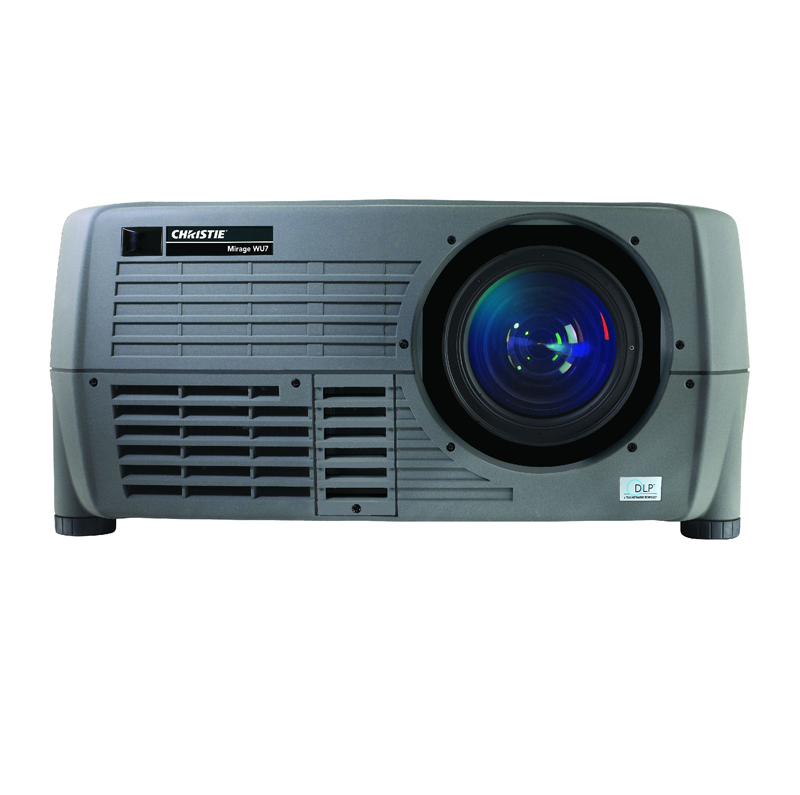

With the MIRAGE WU7, manufacturer Christie offers a stationary DLP projector with WUXGA 1920 x 1200 resolution and a contrast of 1500-2000:1 / 450:1 according to ANSI. Thanks to the brightness of 6600 Ansi lumens, an image width of 825 cm is possible. The projector can also handle slightly brighter rooms with a narrower image width (we recommend max. 550 cm). In the event that the image is still too small, the projector offers integrated edge blending software, with which several projectors can project a large image together. It is also Full HD 1080P compatible. The model built in 2009 is no longer offered by Christie. It should also be noted that there are unfortunately no longer any replacement lamps available for the projector, neither originals nor replicas.
|
| Display Type |
3 x 0,95" DC3 DLP Chip
WUXGA 16/9 Ti Digital Light Processing Chip
|
| Ansi-Lumen |
Projector |
6600 |
Screen |
2933 Lux (200 cm Screen width) |
| Contrast |
1500-2000:1 full on/off / 450:1 nach ANSI |
1500-2000:1 full on/off / 450:1 nach ANSI
|
| Black Level |
4,4000 min. Lumen |
1,958 min. Lumen |
| Offset |
-
|
| Resolution |
WUXGA 1920 x 1200
2.304.000 Pixel
QXGA 2048 x 1536 compressed |
| Video Modes |
PAL, SECAM, NTSC, HDTV 720p, 1080i, 1080p EDTV 480p, 576p |
| 3D Compatibility |
Frame Sequential (3D Ready) |
| Application |
Stationary | Permanent installation in the training room and meeting room as well as the conference room.
Very large screen width and rooms with plenty of light and shaded daylight. |
| Light Source |
1000W Lamp
Article Nr.: 003-120117-01 / 03-000833-01P
|
|
| Light Life |
1500 h. |
| Operating Costs |
-
|
|
|
 |
|
Lux: |
2933 Lux |
|
Room light max.: |
587 Lux |
|
Candela pro m²: |
935 cd/m² |
|
Foot-Lamberts: |
273 fL |
|
 |
|
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Powered |
| Zoom |
Powered |
| Objective |
|
| Throw Ratio |
optional |
| Audio |
Nein |
| Connections |
DVI-I in
5 x BNC RGBHV in
S-Video in
Cinch Video in
3 x RS232C in
RS422 in
RJ45
 |
| Ceiling Mounting |
Yes, is possible. |
| Power |
1600W |
| Size WxHxD |
660 x 313 x 566 mm (26"x12,3"x22,3") 116,92 L/dm³
|
| Operating Noise |
- |
|
| Weight |
34,00 kg / 74,96 lbs. |
| Keystone |
- |
| Illumination |
- |
| Frequenz |
- |
| Foot-Lamberts |
273 fL
/ max. 825 cm screen width |
| Candela m² |
935 cd/m² |
| Features |
 Full HD 1080P compatible
Freeze
Gamma correction
Dynamic iris
Warping
Edge Blending
Picture-in-Picture
Password protection
Remote control with laser pointer
Lan network compatible.
|
|
- |
In Comparison
The Christie MIRAGE WU7 compared to others not current "Stationary" projectors. |
| Ansi-Lumen: |
|
65 |
Weight: |
|
85 |
| Contrast: |
|
1 |
dB: |
|
0 |
| Black level: |
|
87 |
Power cons.: |
|
77 |
| Picture Total Points: | 51 |
Projector Total Points: | 0 |
|
| Popularity Top 100 |
|
| Points: |
|
35 |
| Ranking: |
523 (From: 2514) |
|
|
|
|
|
|
Optional Lenses |
|
|
| Status |
2009 Discontinued (EOL) // Last update of the data: 2025-03-03
|
