Brief Introduction
Beta 2.5 |

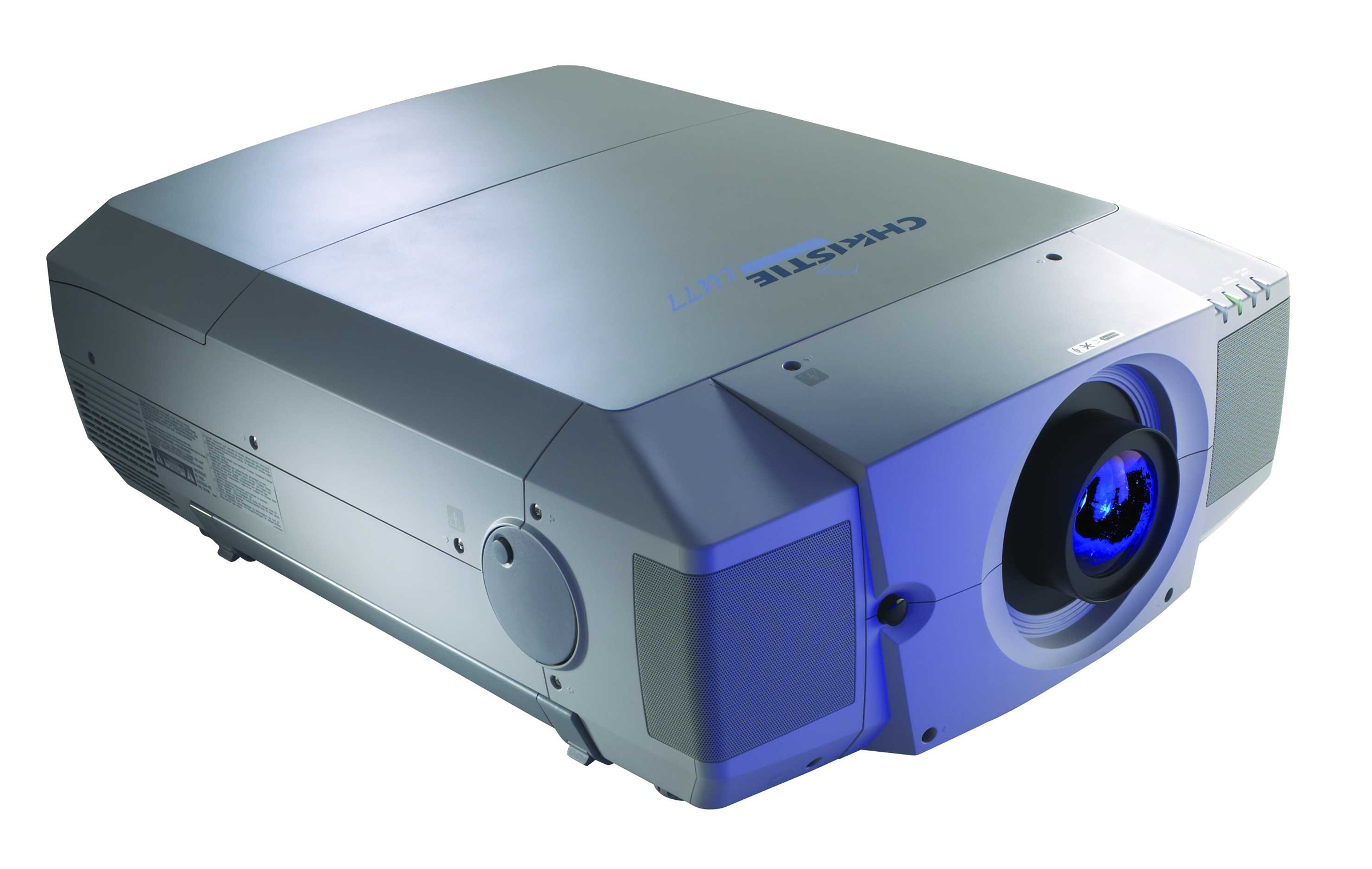

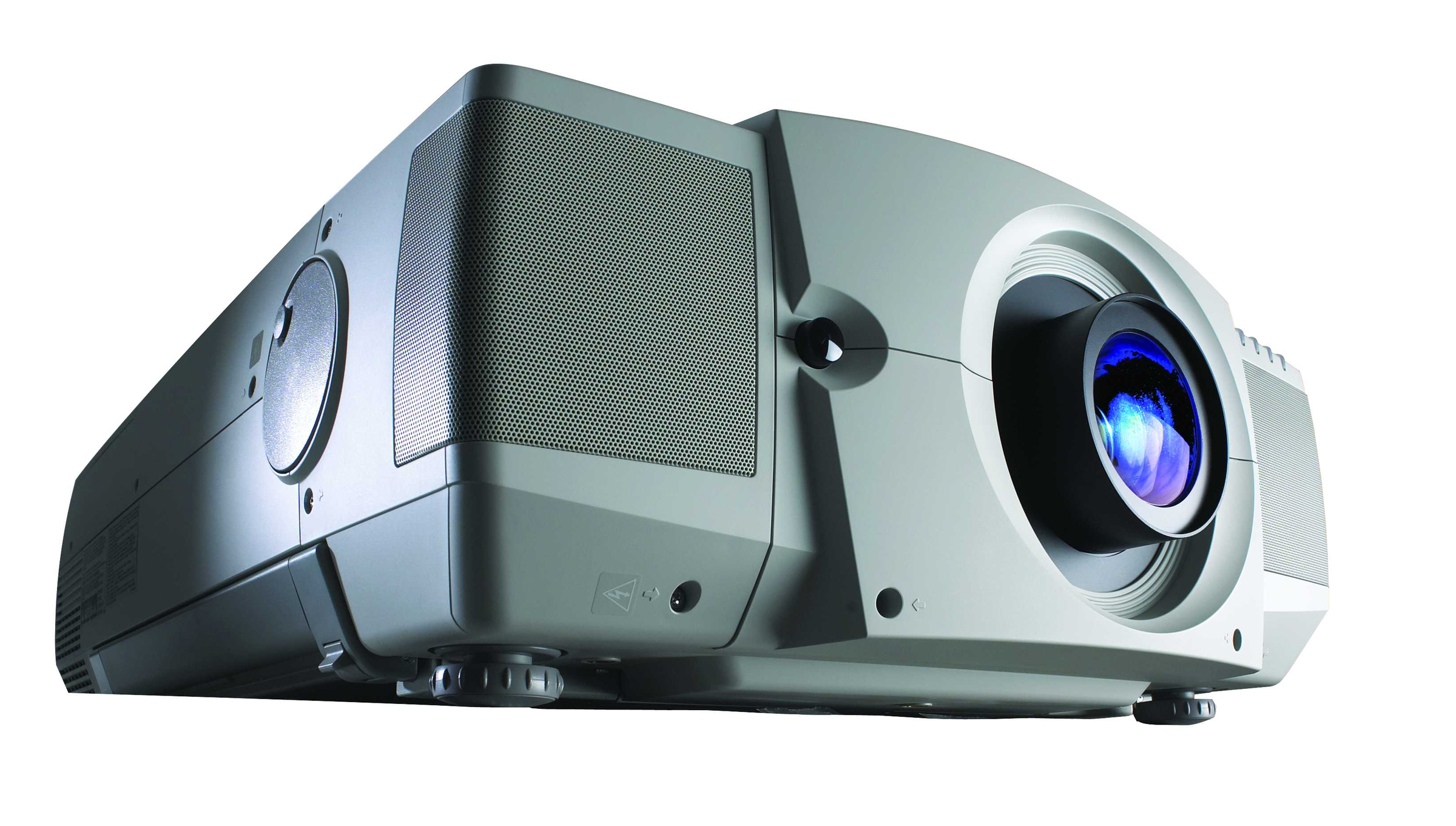

The Christie LU77 stationary LCD projector has 7700 Ansi lumens, a contrast of 1000:1 and a UXGA 1600 x 1200 resolution. The projector also offers a lens shift function that makes image adjustment childs play. The projector will be able to illuminate a picture width of 764 cm well. The projector can create rooms with residual light with a smaller image width, max. 509 cm is recommended here. This model is no longer offered by Christie.
|
| Display Type |
3 x 1,8" LCD TFT Panel mit MLA
UXGA 4/3 Liquid Crystal Display with Micro Lense Array
|
| Ansi-Lumen |
Projector |
7700 / 3850 im singel lamp Mode |
Screen |
2567 Lux (200 cm Screen width) |
| Contrast |
1000:1 full on/off |
1000:1 full on/off
|
| Black Level |
7,7000 min. Lumen |
2,575 min. Lumen |
| Lens shift |
Vert.: +/-50% Hori.: +/-12,5% motorisch
|
| Resolution |
UXGA 1600 x 1200
5760000 Pixel |
| Video Modes |
NTSC, PAL, SECAM Pal 60 NTSC 4,43 HDTV 480, 30i, 480 30p, 1080 25i, 1080 30i, 1035 30i |
| Application |
Stationary | Permanent installation in the training room and meeting room as well as the conference room.
Very large screen width and rooms with plenty of light and shaded daylight. |
| Light Source |
4 x 250W UHP Lamp
Article Nr.: 03-000709-01P
|
|
| Light Life |
1000 h. |
| Operating Costs |
-
|
|
|
 |
|
Lux: |
2567 Lux |
|
Room light max.: |
513 Lux |
|
Candela pro m²: |
815 cd/m² |
|
Foot-Lamberts: |
238 fL |
|
 |
| 75 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Powered |
| Zoom |
Powered |
| Objective |
|
| Throw Ratio |
optional |
| Audio |
2 x 3W |

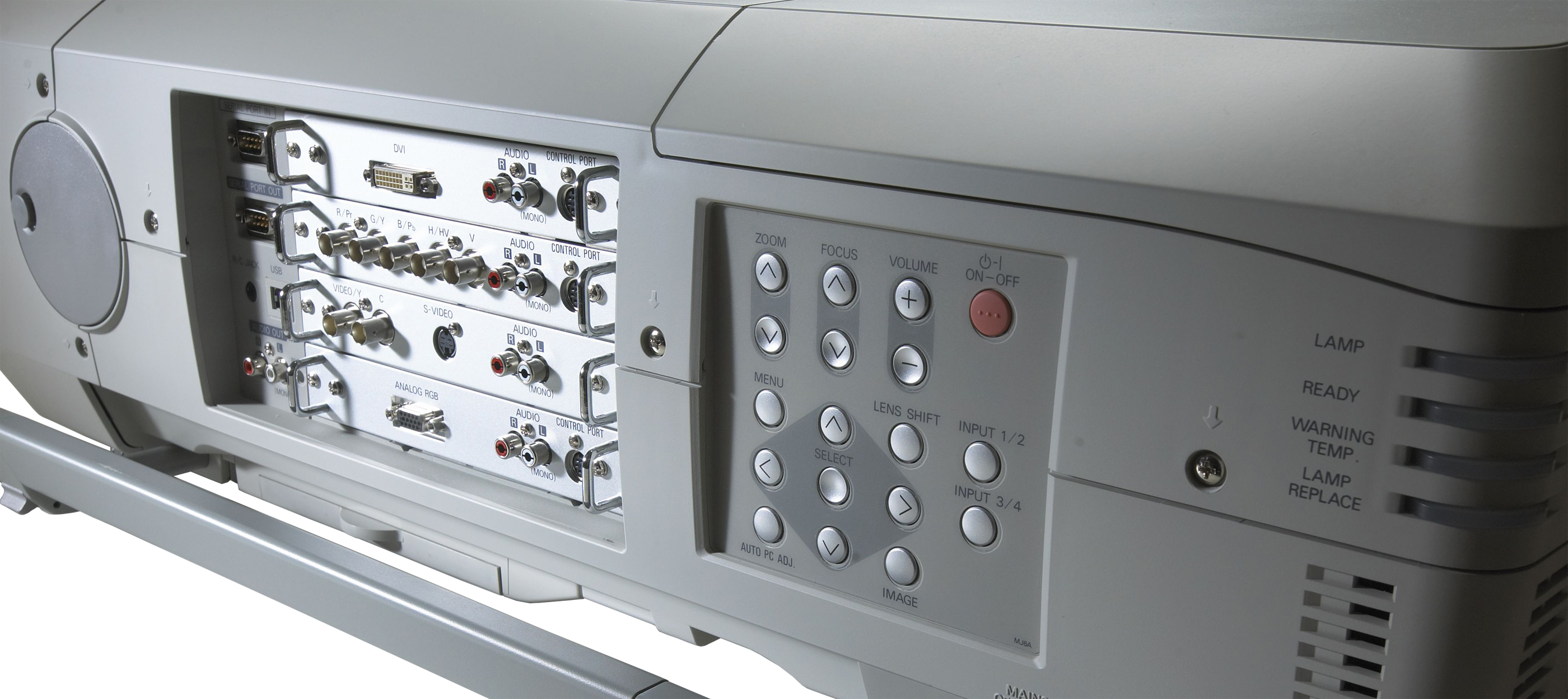

| Connections |
DVI-I
5 x BNC RGBHV
Cinch Video in
Cinch Stereo in
Mini jack in und out
USB Typ B in
D-sub 15pin out
RS232C mini DIN 8pin |
| Ceiling Mounting |
Yes, is possible. |
| Power |
1500W |
| Size WxHxD |
581,2 x 251,5 x 783 mm (22,9"x9,9"x30,8") 114,19 L/dm³
|
| Operating Noise |
45dB |
Shift: 75 cm
|
Shift: 24 cm
|
|
Shift: 24 cm
|
| |
|
|
| Weight |
37,00 kg / 81,57 lbs. |
| Keystone |
- |
| Illumination |
85% |
| Frequenz |
H-sync: 15-120 kHz
V-sync: 50-120 Hz
Range max.: 230 MHz |
| Foot-Lamberts |
238 fL
/ max. 764 cm screen width |
| Candela m² |
815 cd/m² |
| Features |
 Lens shift Funktion motorisch
Freeze
Kensington Slot
Gamma correction

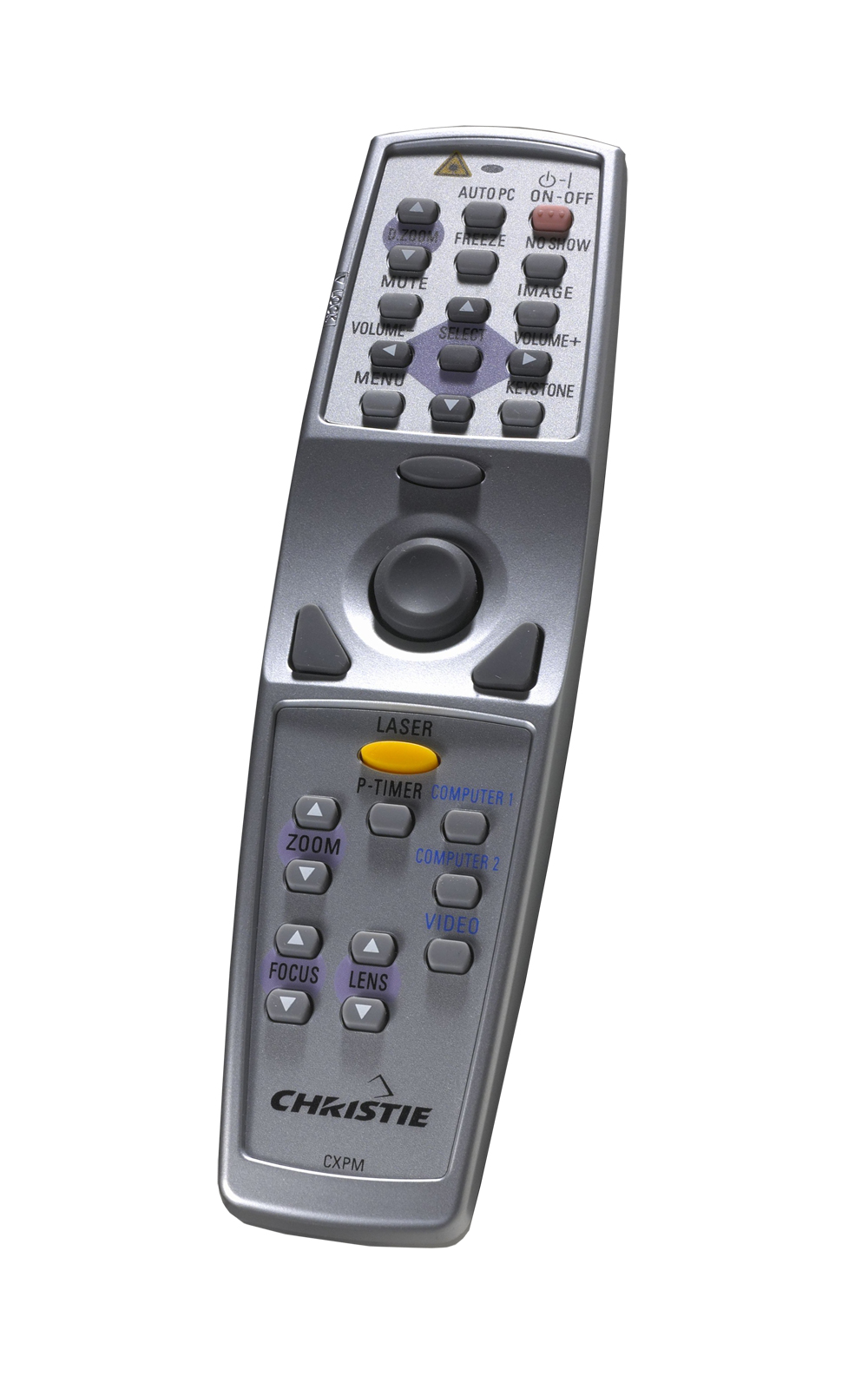

Remote control with laser pointer und mouse control
2 to 5x magnification with digital zoom
Colour temperature setting possible
3D Digital Noise Reduction
|
|
- |
In Comparison
The Christie LU77 compared to others not current "Stationary" projectors. |
| Ansi-Lumen: |
|
76 |
Weight: |
|
83 |
| Contrast: |
|
1 |
dB: |
|
92 |
| Black level: |
|
77 |
Power cons.: |
|
79 |
| Picture Total Points: | 51 |
Projector Total Points: | 85 |
|
| Popularity Top 100 |
|
| Points: |
|
36 |
| Ranking: |
463 (From: 2514) |
|
|
|
|
|
|
Optional Lenses |
|
| Name | Ratio | Distance | Shift V | Shift H | Zoom |
| 6.3-9.0:1 | 6.27-9.15:1 | 1254-1830 m |
45-50% |
+/-7.5% |
Powered |
| 4.6-6.0:1 | 4.5-6.32:1 | 900-1264 m |
45-60% |
15-7.5% |
Powered |
| 3.5-4.6:1 | 3.51-4.58:1 | 702-916 m |
47.5-55% |
+/-10% |
Powered |
| 2.6-3.5:1 | 2.57-3.47:1 | 514-694 m |
+/-52% |
+/-10% |
Powered |
| 2.0-2.6:1 | 2.04-2.68:1 | 408-536 m |
+/-50% |
+/-10% |
Powered |
| 1.5-2.0:1 | 1.58-2.06:1 | 316-412 m |
+/-50% |
+/-9.5% |
|
| 1.35-1.8:1 | 1.4-1.86:1 | 280-372 m |
+/-50% |
+/-12.5% |
Powered |
| 1.2:1 | 1.19-1.19:1 | 238-238 m |
+/-50% |
+/-12.5% |
Powered |
| 0.8:1 | 0.8-0.8:1 | 160-160 m |
0.0% Fix |
+/-12.5% |
Powered |
| 7.0:1 | 7.03:1 | 1406 m |
+/-44.5% |
15-7.5% |
No Zoom |
|
| Status |
2004 Discontinued (EOL) // Last update of the data: 2023-08-04
|
| Data |
 Product Sheet english
Product Sheet english Fax
Product Sheet english HC
User Manual english (1.12 MB)

|
Christie Website
