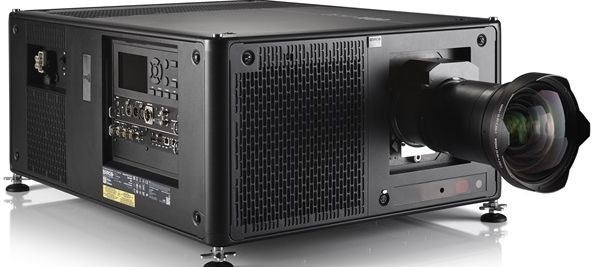

The UDX-4K32 is a 3D-DLP projector by Barco, whose specifications list 31000 ANSI lumens, a contrast of 2000:1 and a WQXGA 2560 x 1600 resolution. With its laser unit, the projector offers a specified light lifespan of 20000 hours. With four hours of daily operation, this corresponds to a period of 13.7 years. In terms of image alignment, the model offers an optical lens shift function, allowing the image to be shifted on the projection surface without any loss of quality. For maximum setup flexibility, the model supports optional interchangeable lenses, meaning the optics can be precisely matched to individual on-site requirements. Suitable distances can be determined using the Lens Calculator. Looking at practical performance, up to 1533 cm can be illuminated with 31000 ANSI lumens in dark environments. Once daylight is in the room, the image should ideally be no wider than 1022 cm. Should very large projection surfaces be required, the integrated edge-blending software offers the possibility to seamlessly combine images from multiple projectors without visible seams. Regarding signal processing, the model is compatible with incoming 1080P content and 4K as well as 3D. Furthermore, the model supports 360° projections for highly flexible deployment scenarios. Connectivity for fixed installations is rounded off by an RJ45 port for remote maintenance and an HDBaseT interface, which transmits bundled video, audio, and control data over long cable runs.
Display Type
3 x 0,9" DLP DMD Chip WQXGA 4/3 Ti Digital Light Processing Chip
The screen width should be larger. It's uncomfortably bright in the dark. too bright
Lux:
10333 Lux
Contrast:
2000:1
Candela pro m²:
3289 cd/m²
Foot-Lamberts:
960 fL
90 cm
•
Focus
Powered
Zoom
Powered
Objective
Throw Ratio
optional
Audio
Nein
Connections
1 x HDMI
2 x HDBaseT
1 x Display Port in
Quad DisplayPort Kanal A,B,C,D
Quad 3G SDI Kanal A,B,C,D
RJ45 in
1 x USB
DMX
RS232
Sync in and out
XLR-Eingang
Real Full HD 3D Full HD 1080P compatible Lens shift Funktion 360° installable Edge Blending Picture-in-Picture Optional Wi-Fi network compatible. Lan network compatible.
Real Full HD 3D
