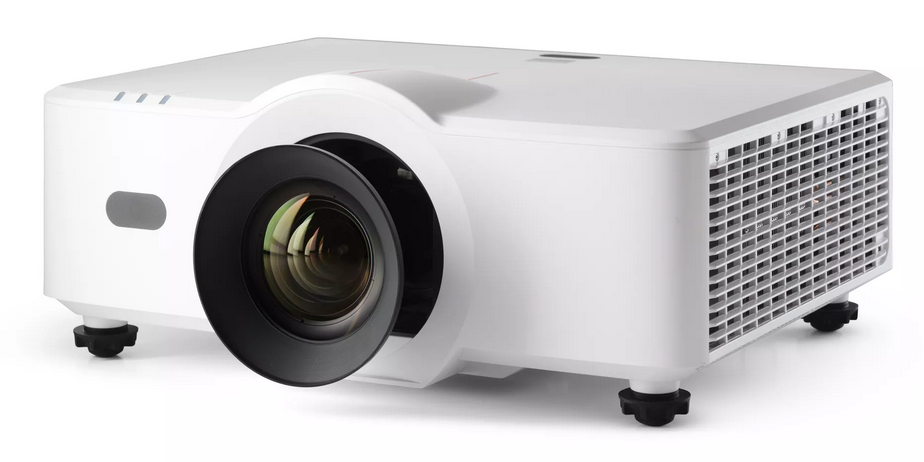

Designed for the Stationary sector, the G50-W8 model from Barco features 8000 ANSI lumens, a native WUXGA 1920 x 1200 resolution and a contrast ratio of 1000000:1. The manufacturer lists the lifespan for this model at 20000 hours. With four hours of daily operation, this corresponds to a period of 13.7 years. In terms of image alignment, the model offers an optical lens shift function, allowing the image to be shifted on the projection surface without any loss of quality. The optical system is designed for the use of interchangeable lenses, allowing for a tailor-made configuration for almost any throw ratio. The Distance Calculator is available to calculate the exact dimensions. Regarding projection size, the value of 8000 ANSI lumens allows for an image width of up to 909 cm in darkened environments. In rooms with ambient light, the image width should be correspondingly reduced to a maximum of 606 cm. For media input, video signals up to 1080P and 4K as well as 3D are supported. Furthermore, the model supports 360° projections for highly flexible deployment scenarios. Regarding professional networking, the device offers a classic RJ45 LAN port for control alongside HDBaseT for the lossless transmission of picture and sound over long distances.
Display Type
1 x DLP Chip WUXGA 16/9 Ti Digital Light Processing Chip
Stationary | Permanent installation in the training room and meeting room as well as the conference room. Very large screen width and rooms with plenty of light and shaded daylight.
The screen width should be larger. It's uncomfortably bright in the dark. too bright
Lux:
3556 Lux
Contrast:
1000000:1
Candela pro m²:
1131 cd/m²
Foot-Lamberts:
330 fL
56 cm
•
Focus
Powered
Zoom
Powered
Objective
Throw Ratio
optional
Audio
2 x 10W
Connections
2x HDMI in
DVI-D
DisplayPort
3D Sync in
D-sub 15pin in und out
Mini Jack Audio in und out
USB in
Mini Jack Wired Remote in
RS232C Din 9 pin in
RJ45 in
HDBaseT
Real Full HD 3D Full HD 1080P compatible Lens shift Funktion Blank (Black screen button) Eco Mode Warping 360° installable Lan network compatible. Embedded warp & blend possible via Ptoolset
Real Full HD 3D
