Brief Introduction
Beta 2.5 |

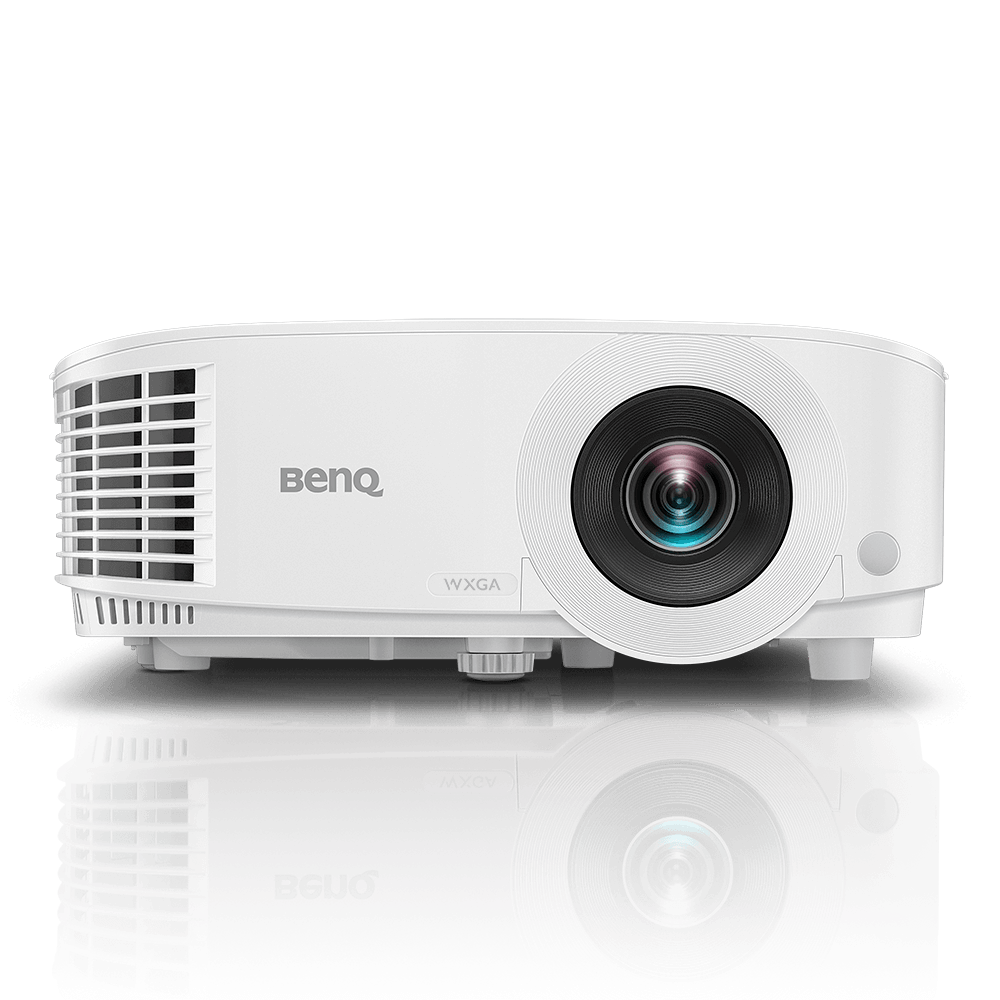

The Benq MW612 model is a DLP projector with WXGA 1280 x 800 resolution and a contrast of 20000:1. The lamp life is specified by the manufacturer as 10000 hours, which converts to over 13.7 years at 2 hours per day. 4000 Ansi lumens ensure that a picture width of 643 cm is also possible. The projector creates rooms with residual light with a smaller image width, we recommend a maximum of 429 cm. It is also Full HD 1080P and 3D compatible. The model built in 2018 is no longer offered by Benq.
|
| Display Type |
DLP Chip
WXGA 16/10 Ti Digital Light Processing Chip
|
| Ansi-Lumen |
Projector |
4000 |
Screen |
1600 Lux (200 cm Screen width) |
| Contrast |
20000:1 |
20000:1
|
| Black Level |
0,2000 min. Lumen |
0,08 min. Lumen |
| Offset |
50% show
|
| Resolution |
WXGA 1280 x 800
1.024.000 Pixel
WUXGA 1920 x 1200 compressed |
| Video Modes |
Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p, 3D, EDTV 480p, 576p |
| 3D Compatibility |
Frame-Packing (Full HD 3D) | Side-by-Side | Top-and-Bottom
Frame Sequential (3D Ready) |
| Application |
Standard-Portabel | External training and company presentations, as well as product presentations.
Wide screen width or rooms with plenty of light (over 200 lumens). |
| Light Source |

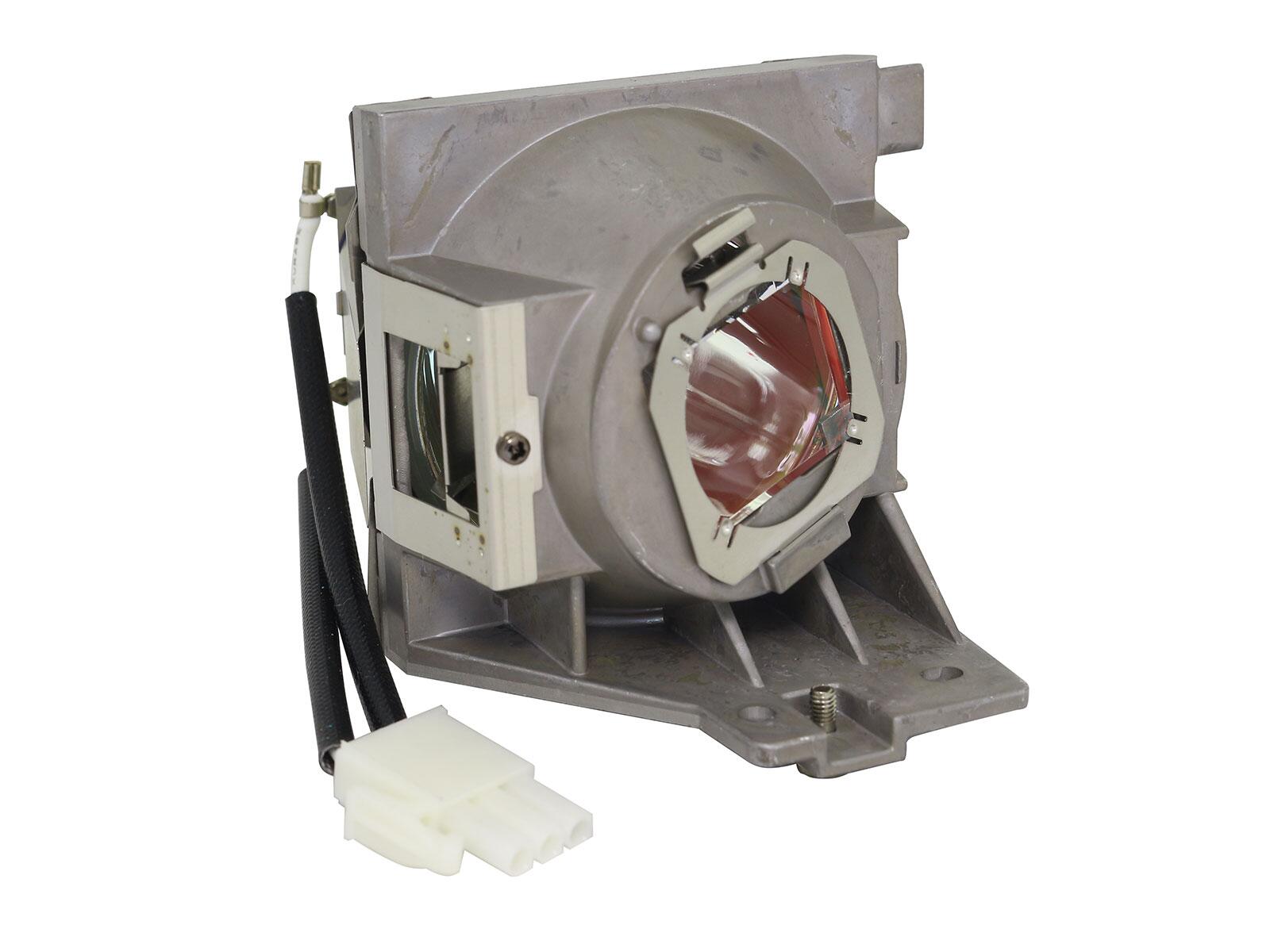

240W Lamp
Article Nr.: 5J.JH505.001
|
|
| Light Life |
4000 h. 10000 h. in Eco Mode |
| Operating Costs |
|
|
310 - 340 cm
|
 |
|
Lux: |
1600 Lux |
|
Room light max.: |
320 Lux |
|
Candela pro m²: |
511 cd/m² |
|
Foot-Lamberts: |
149 fL |
|
 |
| 63 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Manual |
| Zoom |
Manual 1,1 |
| Objective |
F=2,56-2,68 f=22-24,1 mm |
| Throw Ratio |
1,55-1,7:1 show |
| Audio |
1 x 2W |

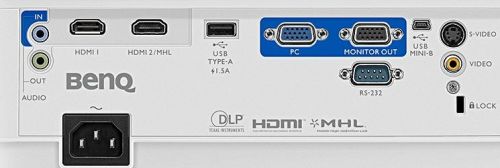

| Connections |
2 x HDMI in
D-sub 15pin in und out
Cinch Video in
S-Video in
Mini Jack Audio in und out
USB in
RS232C Din 9 pin in
 |
| Ceiling Mounting |
Yes, is possible. |
| Power |
320W |
| Size WxHxD |
296 x 120 x 221 mm (11,7"x4,7"x8,7") 7,85 L/dm³
|
| Operating Noise |
34 / 29 dB in Eco Mode |
|
| Weight |
2,30 kg / 4,41 lbs. |
| Keystone |
Vert.: +/-30°
|
| Illumination |
- |
| Frequenz |
H-sync: 15-102 kHz
V-sync: 23-120 Hz
|
| Foot-Lamberts |
149 fL
/ max. 643 cm screen width |
| Candela m² |
511 cd/m² |
| Features |
 Real Full HD 3D
Full HD 1080P compatible
Eco Mode
Kensington Slot
|
|
Optional only
Google TV /
Fire TV /
Apple TV /
Roku TV /
Xiaomi TV Ads |
In Comparison
The Benq MW612 compared to others not current "Standard-Portabel" projectors. |
| Ansi-Lumen: |
|
39 |
Weight: |
|
99 |
| Contrast: |
|
1 |
dB: |
|
95 |
| Black level: |
|
99 |
Power cons.: |
|
97 |
| Picture Total Points: | 46 |
Projector Total Points: | 97 |
|
| Popularity Top 100 |
|
| Points: |
|
8 |
| Ranking: |
2664 (From: 7662) |
|
|
|
|
|
| Status |
2018 Discontinued (EOL) // Last update of the data: 2023-09-20
Created: 2018-12-04 19:49:24
|
