Brief Introduction
Beta 2.5 |

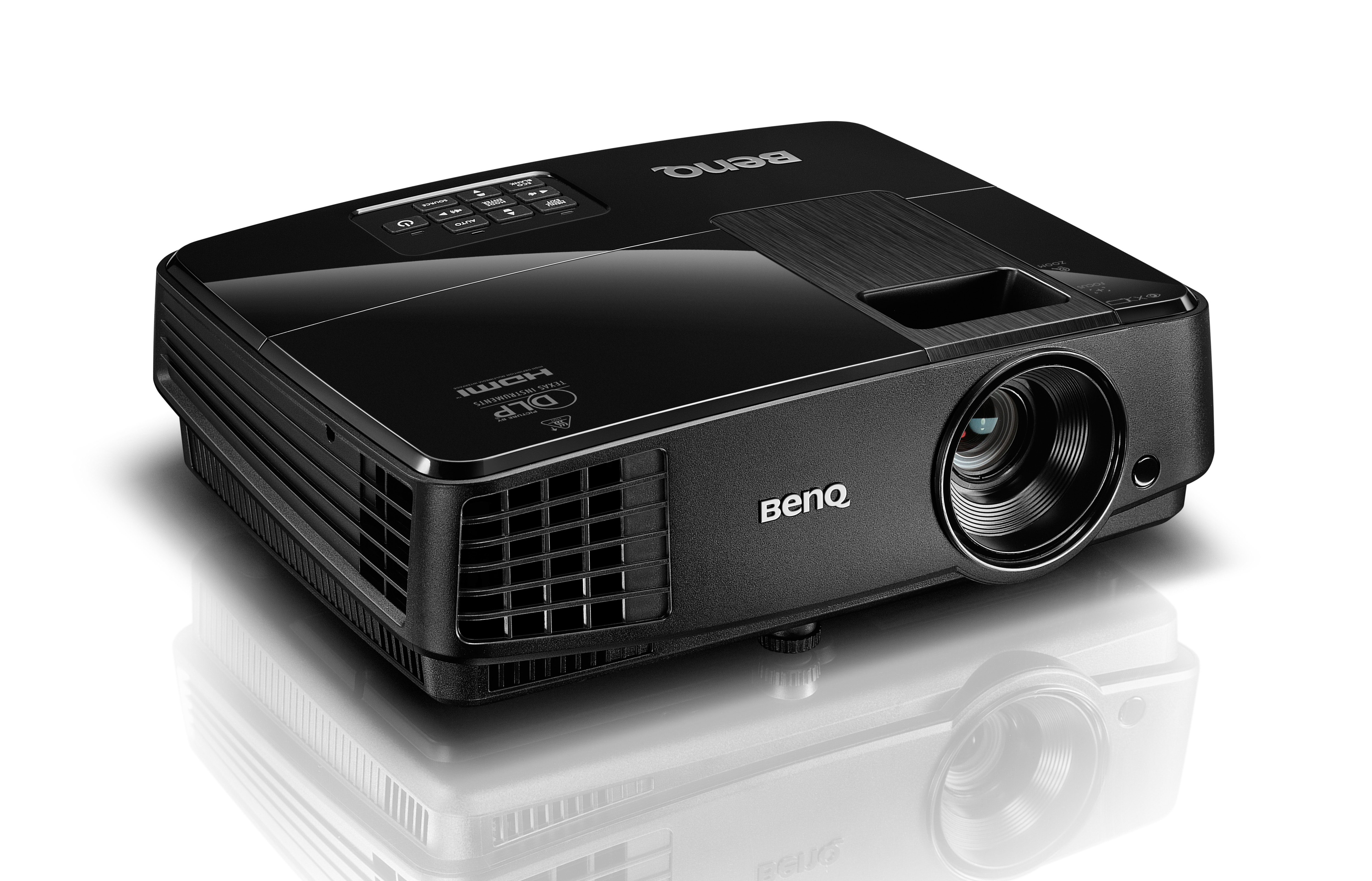

The Benq model MS504 is a DLP projector with SVGA 800 x 600 resolution and a contrast of 13000:1. The manufacturer Benq specifies a lamp life of 4500 hours, which converts to over 6.2 years at 2 hours per day. 3000 Ansi lumens ensure that a picture width of 477 cm is also possible. However, if room light is available, the picture should be a maximum of 318 cm wide. Furthermore, the projector can play 1080P without any problems. It was launched in 2013 and is no longer offered by the manufacturer Benq.
|
| Display Type |
1 x DLP Chip
SVGA 4/3 Ti Digital Light Processing Chip
|
| Ansi-Lumen |
Projector |
3000 |
Screen |
1000 Lux (200 cm Screen width) |
| Contrast |
13000:1 full on/off |
13000:1 full on/off
|
| Black Level |
0,2308 min. Lumen |
0,077 min. Lumen |
| Offset |
60% show
|
| Resolution |
SVGA 800 x 600
480.000 Pixel
UXGA 1600 x 1200 compressed |
| Video Modes |
Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p EDTV 480p, 576p |
| Application |
Standard-Portabel | External training and company presentations, as well as product presentations.
Medium screen width or rooms with a little more ambient light, max. 200 lumens. |
| Light Source |
190W Lamp
Article Nr.: 5J.J9R05.001
|
|
| Light Life |
4500 h. 6500 h. in Eco Mode |
| Operating Costs |
|
|
372 - 408 cm
|
 |
|
Lux: |
1000 Lux |
|
Room light max.: |
200 Lux |
|
Candela pro m²: |
319 cd/m² |
|
Foot-Lamberts: |
93 fL |
|
 |
| 90 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Manual |
| Zoom |
Manual 1,1 |
| Objective |
F=2,56-2,8 f=21-23,10 mm |
| Throw Ratio |
1,86-2,04:1 show |
| Audio |
1 x 2W |

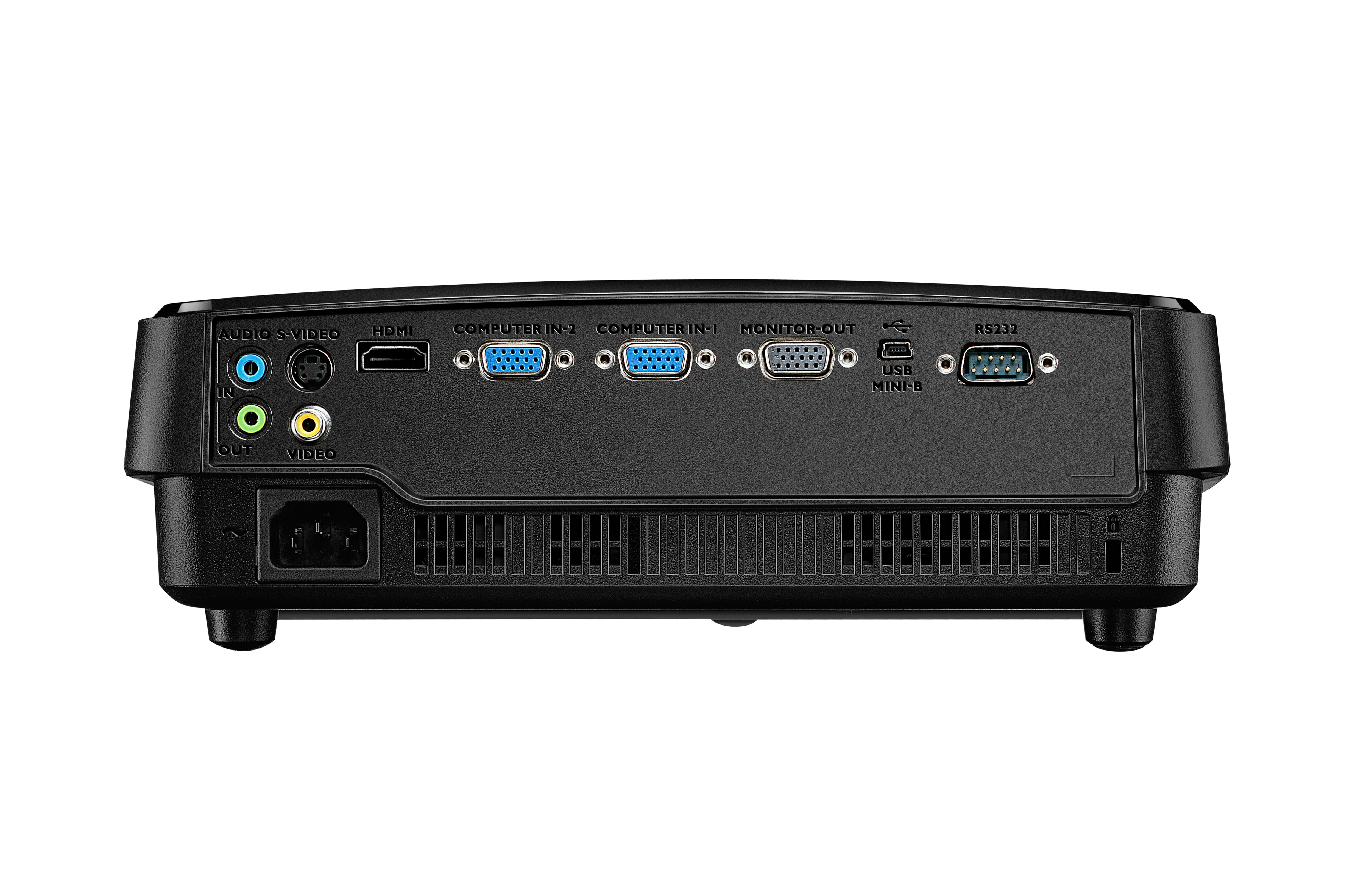

| Connections |
HDMI in
2 x D-sub 15pin in 1 x out
Cinch Video in
Cinch Stereo in
S-Video in
Mini Jack Audio in und out
USB Typ B in
RS232C Din 9 pin in
 |
| Ceiling Mounting |
Yes, is possible. |
| Power |
270 / 220W in Eco Mode |
| Size WxHxD |
283 x 88,7 x 222 mm (11,1"x3,5"x8,7") 5,53 L/dm³
|
| Operating Noise |
33 / 28 dB in Eco Mode |
|
| Weight |
1,80 kg / 3,97 lbs. |
| Keystone |
Vert.: +/-40°
|
| Illumination |
- |
| Frequenz |
H-sync: 15-102 kHz
V-sync: 23-120 Hz
|
| Foot-Lamberts |
93 fL
/ max. 477 cm screen width |
| Candela m² |
319 cd/m² |
| Features |
 Full HD 1080P compatible
Eco Mode
Kensington Slot
sRGB
6-segment colour wheel
|
|
Optional only
Google TV /
Fire TV /
Apple TV /
Roku TV /
Xiaomi TV Ads |
In Comparison
The Benq MS504 compared to others not current "Standard-Portabel" projectors. |
| Ansi-Lumen: |
|
36 |
Weight: |
|
92 |
| Contrast: |
|
1 |
dB: |
|
41 |
| Black level: |
|
99 |
Power cons.: |
|
97 |
| Picture Total Points: | 45 |
Projector Total Points: | 77 |
|
| Popularity Top 100 |
|
| Points: |
|
9 |
| Ranking: |
1918 (From: 7662) |
|
|
|
|
|
| Status |
2013 Discontinued (EOL) // Last update of the data: 2023-08-04
