Brief Introduction
Beta 2.5 |

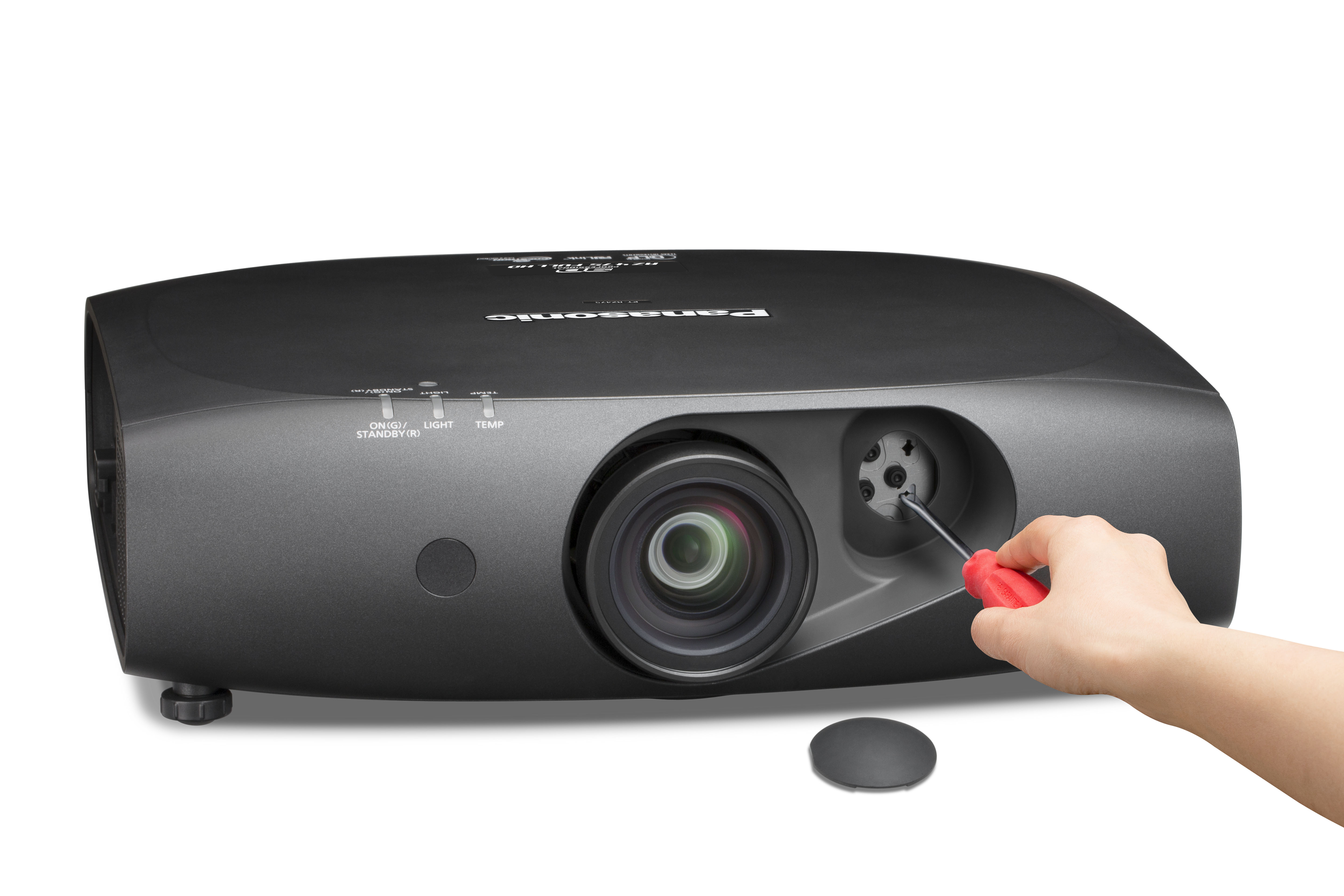

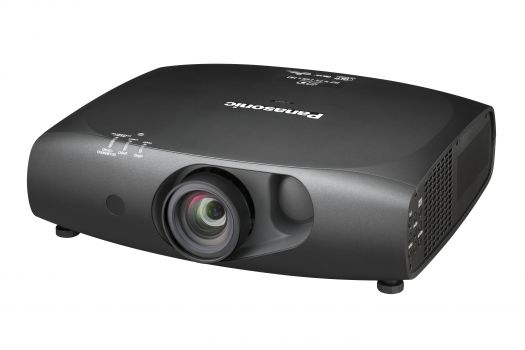

The Panasonic model PT RZ475E/U is a DLP laser projector with HDTV 1920 x 1080 resolution and a contrast of 20000:1. Due to the laser, the projector is specified with 20000 hours of light life, which converts to over 13.7 years at 4 hours of use. Includes a lens shift and keystone correction function, which provides freedom during installation. 3000 Ansi lumens ensure that a picture width of 556 cm is also possible. However, if room light is available, the picture should be a maximum of 371 cm wide. In the event that the image is still too small, the projector offers integrated edge blending software, which allows several projectors to project a large image together. Playback of 1080P is also no problem for the projector, which can even project Blu-rays onto the ceiling thanks to 360° projection. The model built in 2013 is no longer offered by Panasonic.
|
| Display Type |
1 x 0,65" DLP Chip
HDTV 16/9 Ti Digital Light Processing Chip
|
| Ansi-Lumen |
Projector |
3000 |
Screen |
1333 Lux (200 cm Screen width) |
| Contrast |
20000:1 full on/off |
20000:1 full on/off
|
| Black Level |
0,1500 min. Lumen |
0,067 min. Lumen |
| Lens shift |
Vert.: +/-10% Hori.: +/-3,4%
|
| Resolution |
HDTV 1920 x 1080
2.073.600 Pixel |
| Video Modes |
Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p EDTV 480p, 576p |
| 3D Compatibility |
Frame Sequential (3D Ready) |
| Application |
Stationary | Permanent installation in the training room and meeting room as well as the conference room.
Medium screen width or rooms with a little more ambient light, max. 200 lumens. |
| Light Source |
LED und laser diode
|
|
| Light Life |
20000 h. |
| Operating Costs |
0,00 € LED
|
|
160 - 1800 cm
|
 |
|
Lux: |
1333 Lux |
|
Room light max.: |
267 Lux |
|
Candela pro m²: |
425 cd/m² |
|
Foot-Lamberts: |
124 fL |
|
 |
| 11 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Manual |
| Zoom |
No Zoom 1,93 |
| Objective |
F=1,8 f=11,9mm |
| Throw Ratio |
0,8-9:1 show |
| Audio |
- |
| Connections |
HDMI in
DVI-I mit HDCP in
D-sub 15 pin in
Cinch Video in
RJ45 mit HDBaseT in
Mini Jack Audio in und out
3D SYNC OUT
RS232C Din 9 pin |
| Ceiling Mounting |
Yes, is possible. |
| Power |
430W |
| Size WxHxD |
445 x 125 x 415 mm (17,5"x4,9"x16,3") 23,08 L/dm³
|
| Operating Noise |
35dB |
Key: 134 cm
Shift: 11 cm |
Shift: 6 cm
|
|
Shift: 6 cm
|
| |
|
|
| Weight |
10,00 kg / 22,05 lbs. |
| Keystone |
Vert.: +/-40°
|
| Illumination |
90% |
| Frequenz |
- |
| Foot-Lamberts |
124 fL
/ max. 556 cm screen width |
| Candela m² |
425 cd/m² |
| Features |
 Full HD 1080P compatible
Lens shift Funktion
360° installable
24/7 continuous operation capable
Edge Blending
PJLink™
Lan network compatible.
Short-throw projector
DICOM Simulation
HDBaseT
|
|
Optional only
Google TV /
Fire TV /
Apple TV /
Roku TV /
Xiaomi TV Ads |
In Comparison
The Panasonic PT RZ475E/U compared to others not current "Stationary" projectors. |
| Ansi-Lumen: |
|
28 |
Weight: |
|
98 |
| Contrast: |
|
1 |
dB: |
|
95 |
| Black level: |
|
100 |
Power cons.: |
|
95 |
| Picture Total Points: | 43 |
Projector Total Points: | 96 |
|
| Popularity Top 100 |
|
| Points: |
|
13 |
| Ranking: |
1971 (From: 2514) |
|
|
|
|
|
| Status |
2013 Discontinued (EOL) // Last update of the data: 2024-10-02
Created: 2013-06-13 14:32:30
|
| Data |
 Product Sheet english
Product Sheet english HC
User Manual english (17.42 MB)

|
Panasonic Website
