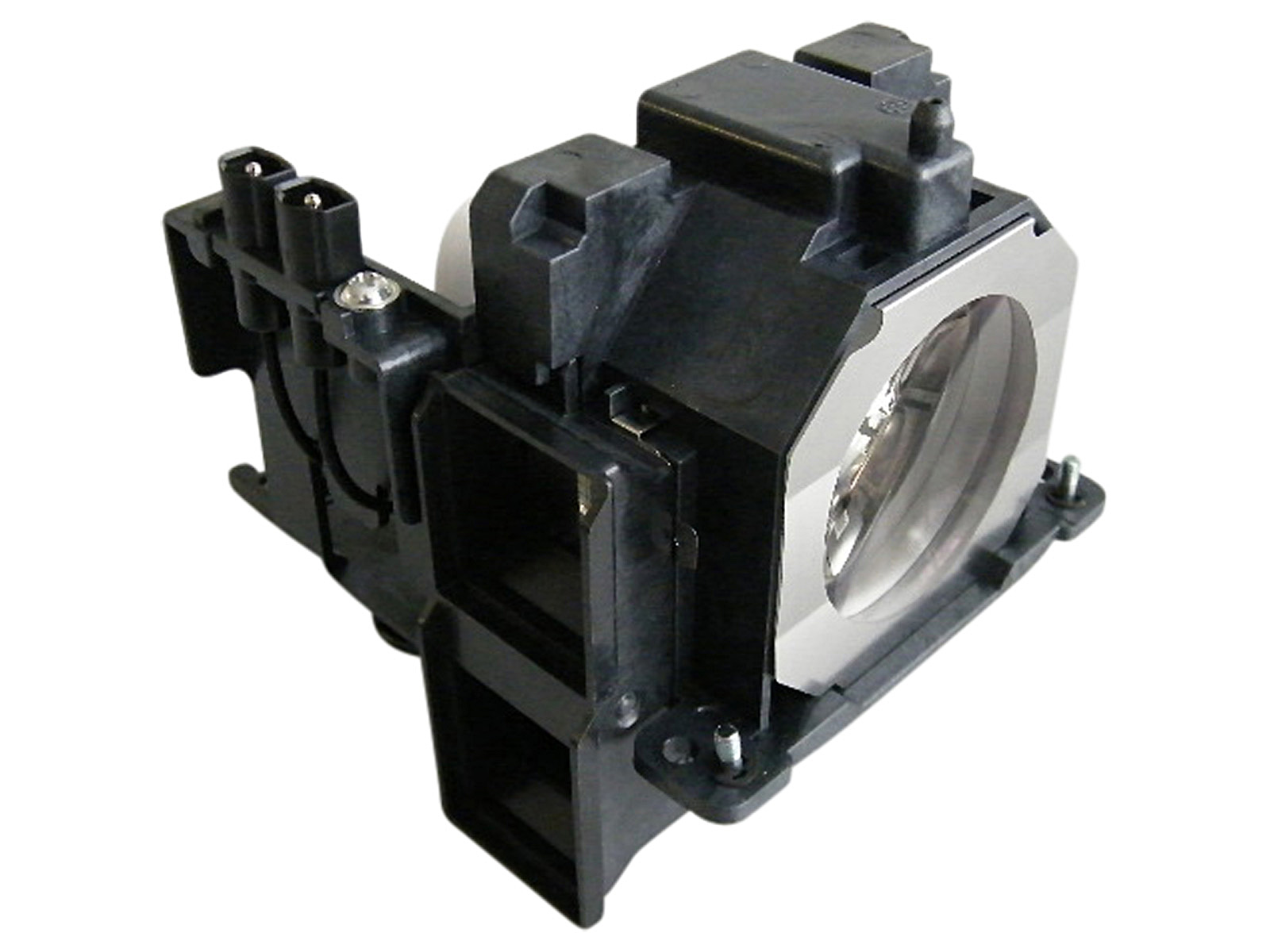

Designed for the Stationary sector, the PT-EX800Z model from Panasonic features 7500 ANSI lumens, a native XGA 1024 x 768 resolution and a contrast ratio of 5000:1. The runtime of the lamp in this model is estimated at 3000 hours before a replacement is necessary. For distortion-free image alignment, the projector offers both a lens shift function and keystone correction, granting significant leeway during mounting. The specifications identify the device as a model with an interchangeable lens option. Matching optional optics allow for exact adaptation to the required image size and projection distance, which can be calculated directly with the Projection Calculator. Looking at practical performance, up to 754 cm can be illuminated with 7500 ANSI lumens in dark environments. Once daylight is in the room, the image should ideally be no wider than 503 cm. For media input, video signals up to 1080P are supported. An additional 360° projection capability allows the device to be oriented at almost any angle. The model is perfectly equipped for complex installations: In addition to the RJ45 jack for network administration, an HDBaseT port is available, transporting high-resolution AV signals over a single Cat cable. The projector was released in 2013 and is officially no longer distributed by Panasonic.
Stationary | Permanent installation in the training room and meeting room as well as the conference room. Very large screen width and rooms with plenty of light and shaded daylight.
HDMI in
DVI-D mit HDCP in
D-sub 15pin in und out
5 x BNC RGBHV in
Cinch Video in
Cinch Stereo in und out
S-Video in
Mini Jack Audio in und out
USB in
RS232C Din 9 pin in
RJ45 mit HDBaseT in
Ceiling Mounting
Yes, is possible.
Power
600W
Size WxHxD
530 x 177 x 445 mm (20,9"x7"x17,5") 41,75 L/dm³
Operating Noise
37 / 31 dB in Eco Mode
Key: 285 cm Shift: 75 cm
Key: 196 cm Shift: 20 cm
Key: 196 cm Shift: 20 cm
Key: 285 cm Shift: 75 cm
Weight
10,60 kg / 22,05 lbs.
Keystone
Vert.: +/-40° Hori.: +/-30°
Illumination
90%
Frequenz
H-sync: 15-100 kHz V-sync: 24-120 Hz Range max.: 162 MHz
Full HD 1080P compatible Direkt Power Off Lens shift Funktion Eco Mode Dynamic iris 360° installable PJLink™ Control via web browser Lan network compatible. Crestron®-Software compatible. Zoom lens ET-ELW20 ET-ELT20 ET-ELT21 Fixed-focus lens ET-ELW21
Full HD 1080P compatible
