Brief Introduction
Beta 2.5 |
The PT DZ570E/U DLP projector from Panasonic has 4000 ANSI lumens, a contrast ratio of 2000:1, and a WUXGA 1920 x 1200 resolution. The ambient light sensor allows the projector to automatically optimize the projected image. The lens shift function allows the projector to be positioned very freely. An image width of up to 643 cm is possible; if the image width is smaller (we recommend max. 429 cm), even rooms with residual light are no problem. Furthermore, the projector can play 1080P without any problems. Even projection onto the ceiling is possible thanks to the 360? projection. The projector was launched in 2010 and is no longer sold by the manufacturer, but is still very popular in our projector database.
|
| Display Type |
1 x 0,67" DLP Chip
WUXGA 16/9 Ti Digital Light Processing Chip
|
| Ansi-Lumen |
Projector |
4000 |
Screen |
1778 Lux (200 cm Screen width) |
| Contrast |
2000:1 full on/off |
2000:1 full on/off
|
| Black Level |
2,0000 min. Lumen |
0,89 min. Lumen |
| Lens shift |
Vert.: +60% -0% Hori.: +/-10%
|
| Resolution |
WUXGA 1920 x 1200
2.304.000 Pixel |
| Video Modes |
PAL, SECAM, NTSC, HDTV 720p, 1080i, 1080p EDTV 480p, 576p |
| Application |
Stationary | Permanent installation in the training room and meeting room as well as the conference room.
Wide screen width or rooms with plenty of light (over 200 lumens). |

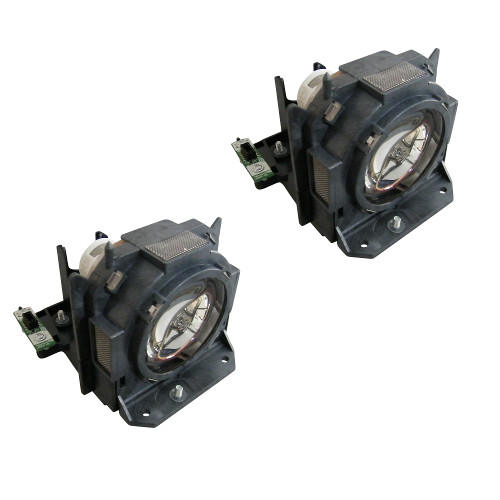

| Light Source |
310W UHM Lamp
Article Nr.: ET-LAD60A
|
|
| Light Life |
2000 h. 3000 h. in eco Mode |
| Operating Costs |
|
|
290 - 588 cm
|
 |
|
Lux: |
1778 Lux |
|
Room light max.: |
356 Lux |
|
Candela pro m²: |
565 cd/m² |
|
Foot-Lamberts: |
165 fL |
|
 |
| 68 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Manual |
| Zoom |
Manual 2 |
| Objective |
F=2,0-3,4 f=21,5-43,0 mm |
| Throw Ratio |
1,45-2,94:1 show |
| Audio |
- |

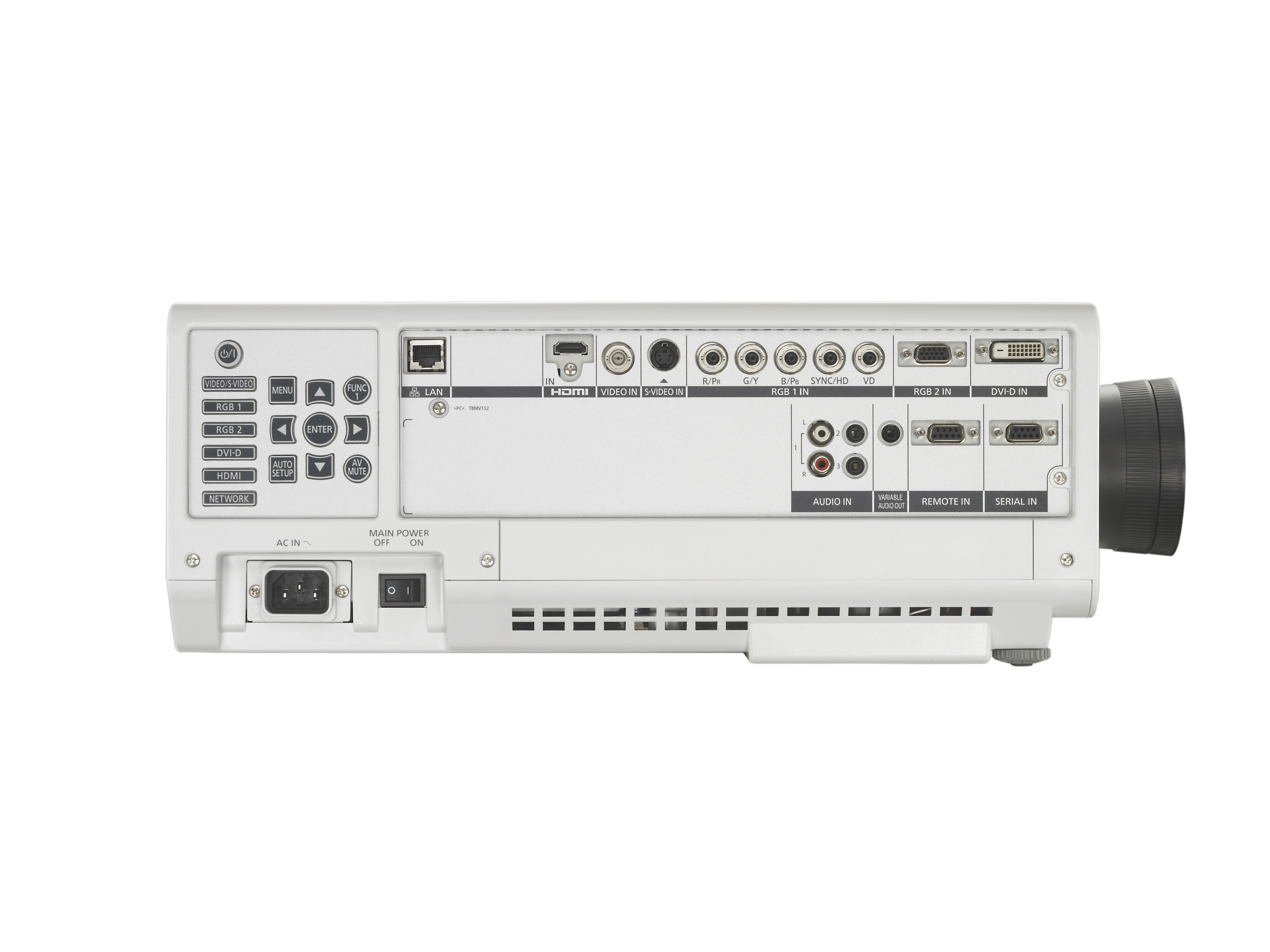

| Connections |
HDMI in
DVI-D mit HDCP in
5 x RGBHV in
D-sub 15 pin in
BNC Video in
S-Video in
Cinch Stereo in
Mini Jack Audio in und out
RS232C Din 9 pin in
RJ45 in
 |

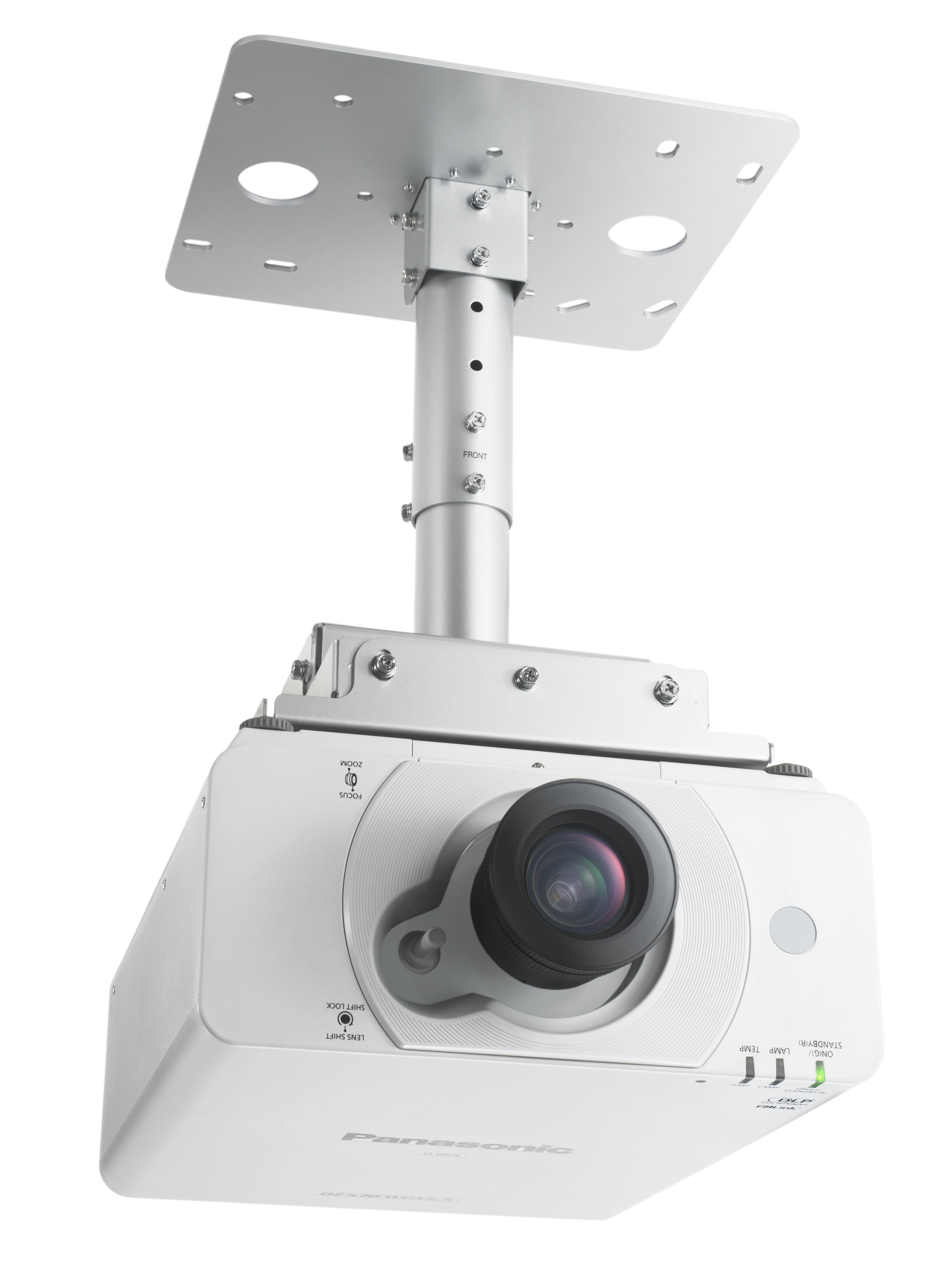

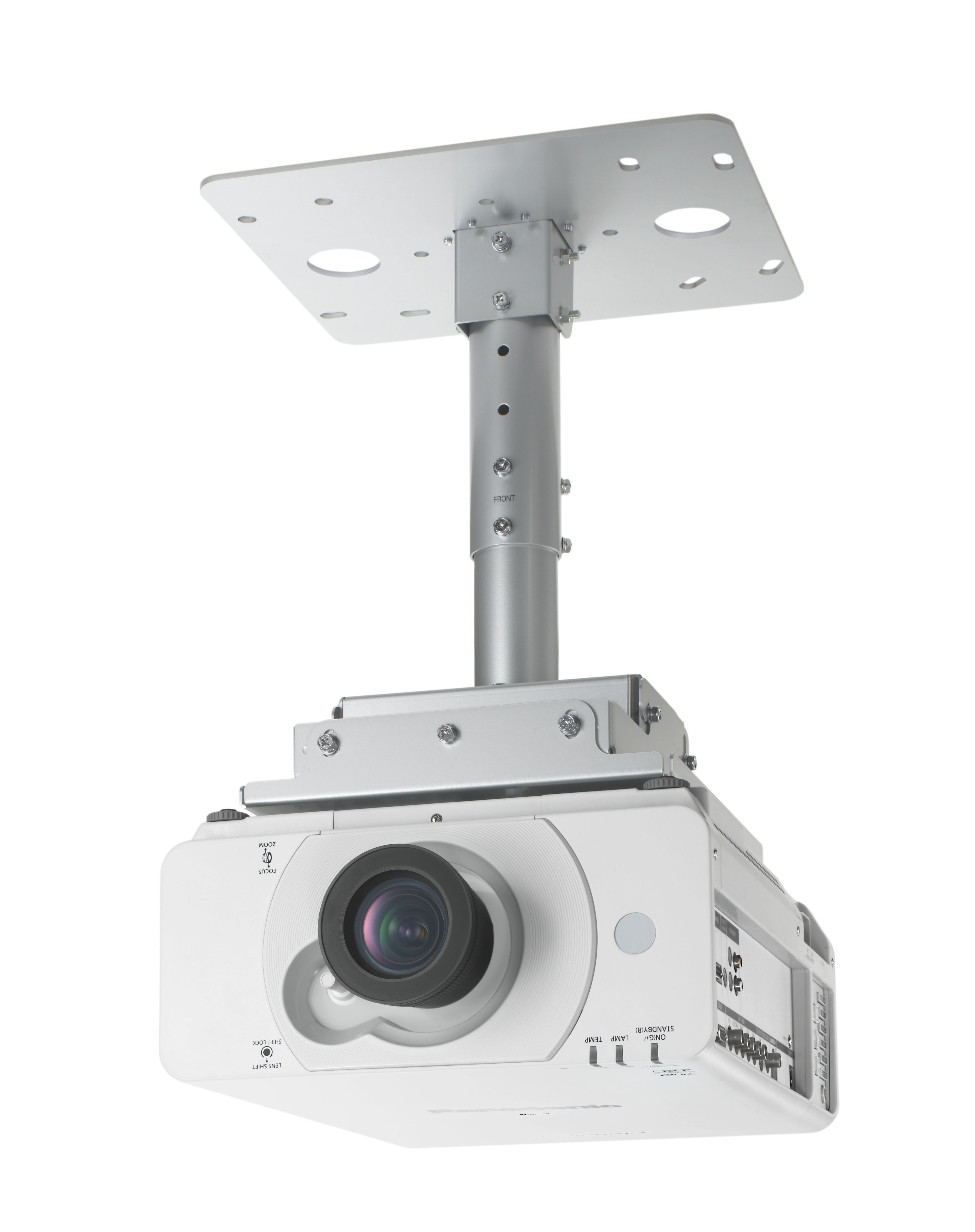

| Ceiling Mounting |
Yes, is possible. |
| Power |
415W |
| Size WxHxD |
332 x 168 x 484,5 mm (13,1"x6,6"x19,1") 27 L/dm³
|
| Operating Noise |
- |
Key: 243 cm
Shift: 68 cm |
Shift: 20 cm
|
|
Shift: 20 cm
|
| |
|
|
| Weight |
8,50 kg / 17,64 lbs. |
| Keystone |
Vert.: +/-40°
|
| Illumination |
90% |
| Frequenz |
H-sync: 27-100 kHz
V-sync: 24-120 Hz
Range max.: 162 MHz |
| Foot-Lamberts |
165 fL
/ max. 643 cm screen width |
| Candela m² |
565 cd/m² |
| Features |
 Full HD 1080P compatible
Direkt Power Off
Lens shift Funktion
Eco Mode
360° installable
Password protection
PJLink™
Control via web browser

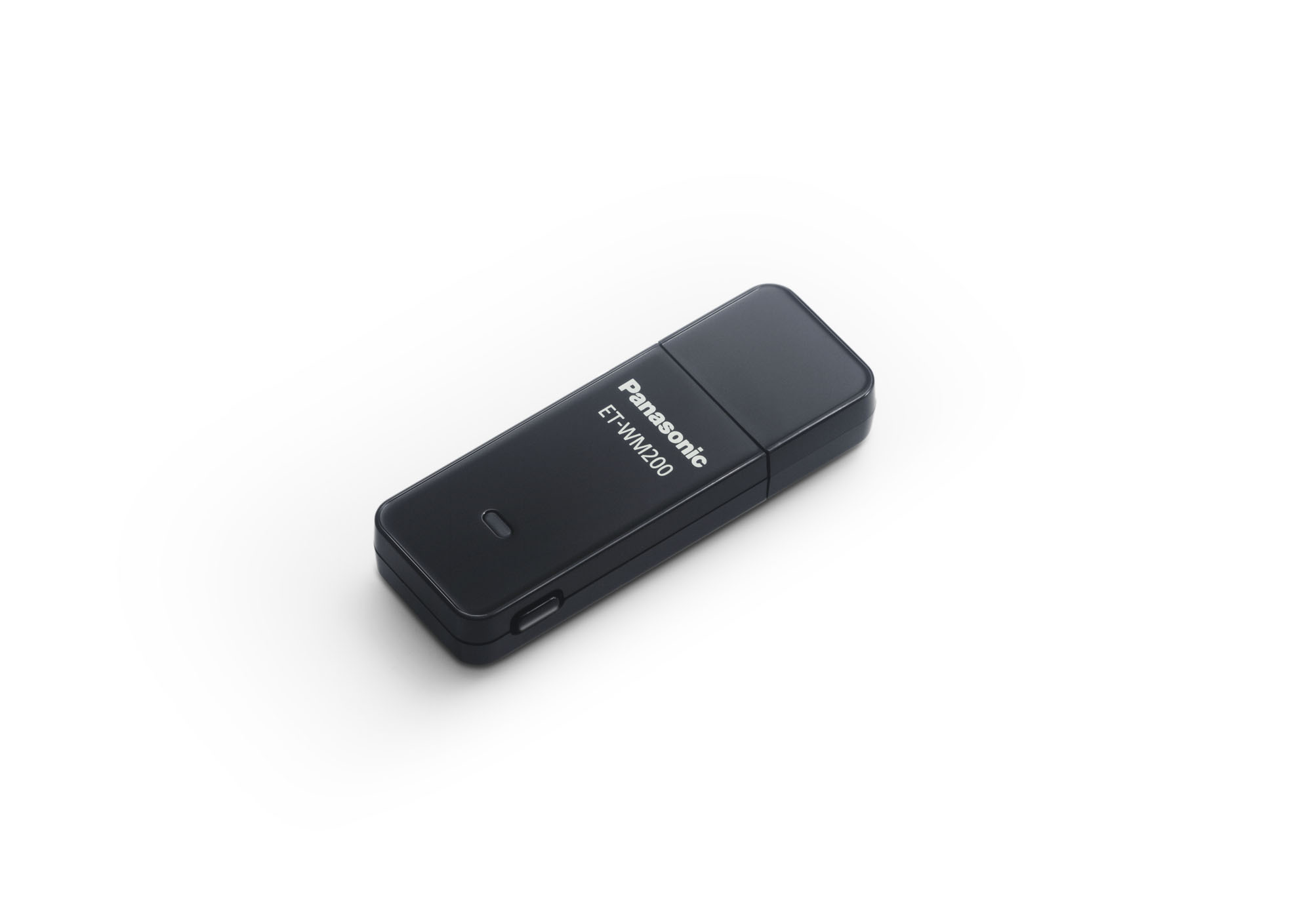

Optional Wi-Fi network compatible.
Lan network compatible.
Ambient Light Sensor.
|
|
Optional only
Google TV /
Fire TV /
Apple TV /
Roku TV /
Xiaomi TV Ads |
In Comparison
The Panasonic PT DZ570E/U compared to others not current "Stationary" projectors. |
| Ansi-Lumen: |
|
39 |
Weight: |
|
99 |
| Contrast: |
|
1 |
dB: |
|
0 |
| Black level: |
|
94 |
Power cons.: |
|
96 |
| Picture Total Points: | 45 |
Projector Total Points: | 0 |
|
| Popularity Top 100 |
|
| Points: |
|
57 |
| Ranking: |
67 (From: 2514) |
|
|
|
|
|
| Status |
2010 Discontinued (EOL) // Last update of the data: 2023-08-12
|
| Data |
 Product Sheet english "U"
Product Sheet english E
Product Sheet english HC
User Manual english (11.07 MB)

|
Panasonic Website
