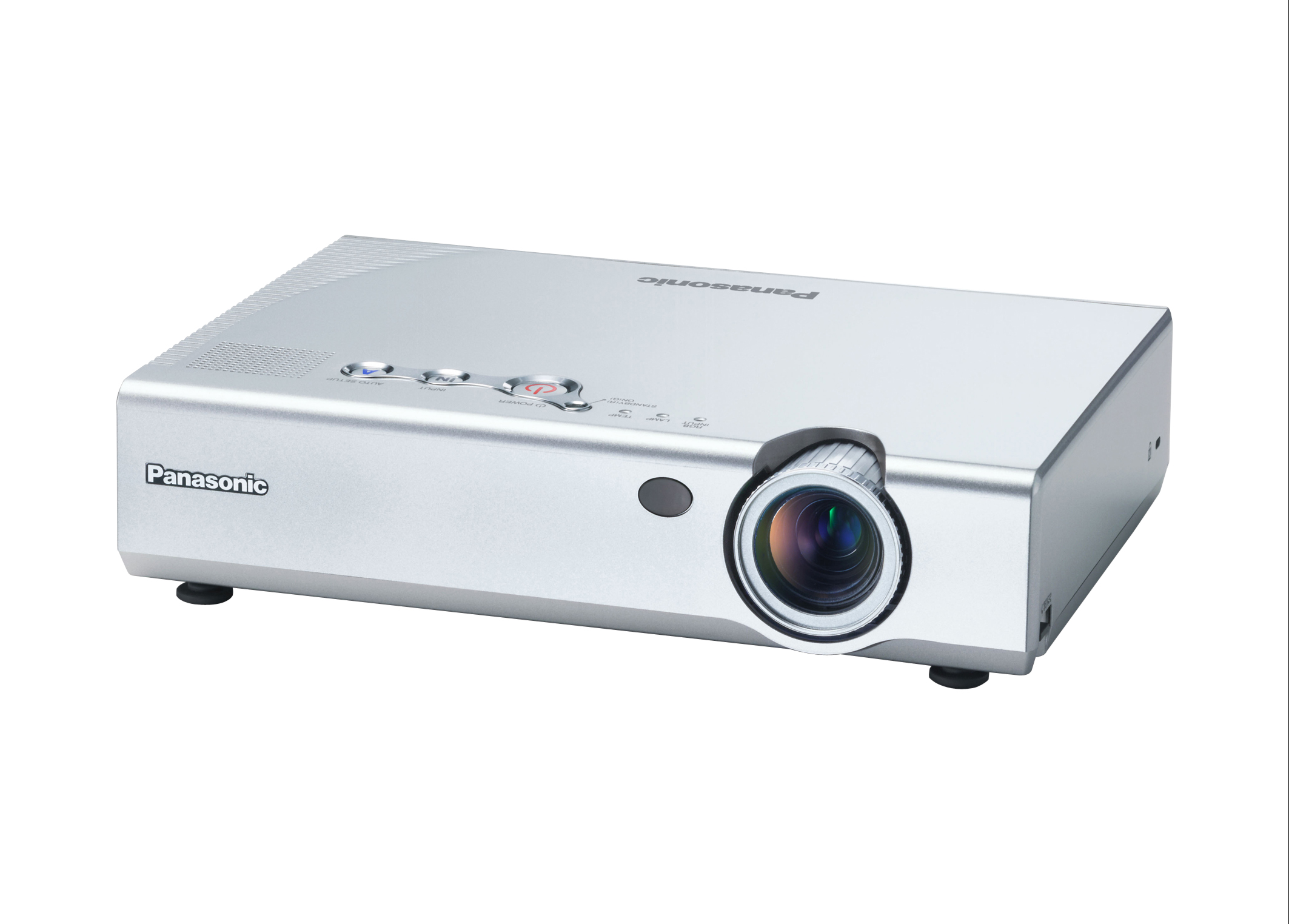

This projector is named PT LC80E, originates from Panasonic, and its data sheet shows 2000 ANSI lumens, a contrast of 400:1 and a resolution of XGA 1024 x 768. The manufacturer specifies a runtime of 2000 hours for this projector's lamp. The image geometry can be adjusted via the built-in keystone correction so that a clean, rectangular display is achieved even with non-ideal placement. A look at the light output reveals: The 2000 ANSI lumens are sufficient to illuminate an image width of up to 389 cm in darkened rooms. If room light is present, we recommend not exceeding a maximum width of 259 cm. This model dates back to 2003 and is no longer part of Panasonic's current product range.
Display Type
3 x 0,7" LCD TFT Panel mit MLA XGA 4/3 Liquid Crystal Display with Micro Lense Array
Ansi-Lumen
Projector
2000
Screen
667 Lux (200 cm Screen width)
Contrast
400:1 full on/off
400:1 full on/off
Black Level
5,0000 min. Lumen
1,68 min. Lumen
Offset
35% 22 cm under screen top edge →
SCREEN
+Projector
Resolution
XGA 1024 x 768
786.432 Pixel
SXGA 1280 x 1024 compressed
Video Modes
NTSC PAL SECAM HDTV 1080i, 720p, 480p
Application
Standard-Portabel | External training and company presentations, as well as product presentations. Medium screen width or rooms with little light, max. 100 lumens.
