Brief Introduction
Beta 2.5 |
Brief introduction to the Panasonic PT LB90E/U/A. The LCD projector has an XGA 1024 x 768 resolution and a contrast ratio of 500:1. The built-in ambient light sensor detects the ambient light in the room and automatically optimizes the image. An image width of up to 515 cm is possible; if the image width is smaller (we recommend max. 343 cm), even rooms with residual light are no problem. It is also Full HD 1080P compatible. The projector was launched in 2009 and is no longer sold by the manufacturer.
|
| Display Type |
3 x 0,63" LCD TFT Panel mit MLA
XGA 4/3 Liquid Crystal Display with Micro Lense Array
|
| Ansi-Lumen |
Projector |
3500 |
Screen |
1167 Lux (200 cm Screen width) |
| Contrast |
500:1 full on/off |
500:1 full on/off
|
| Black Level |
7,0000 min. Lumen |
2,348 min. Lumen |
| Offset |
39,5% show
|
| Resolution |
XGA 1024 x 768
786.432 Pixel |
| Video Modes |
PAL, SECAM, NTSC, HDTV 720p, 1080i, 1080p EDTV 480p, 576p |
| Application |
Standard-Portabel | External training and company presentations, as well as product presentations.
Medium screen width or rooms with a little more ambient light, max. 200 lumens. |

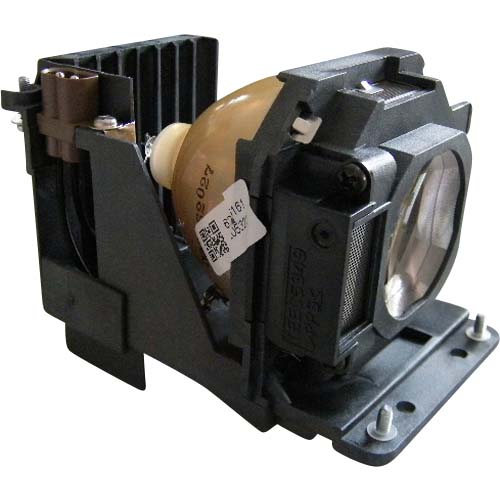

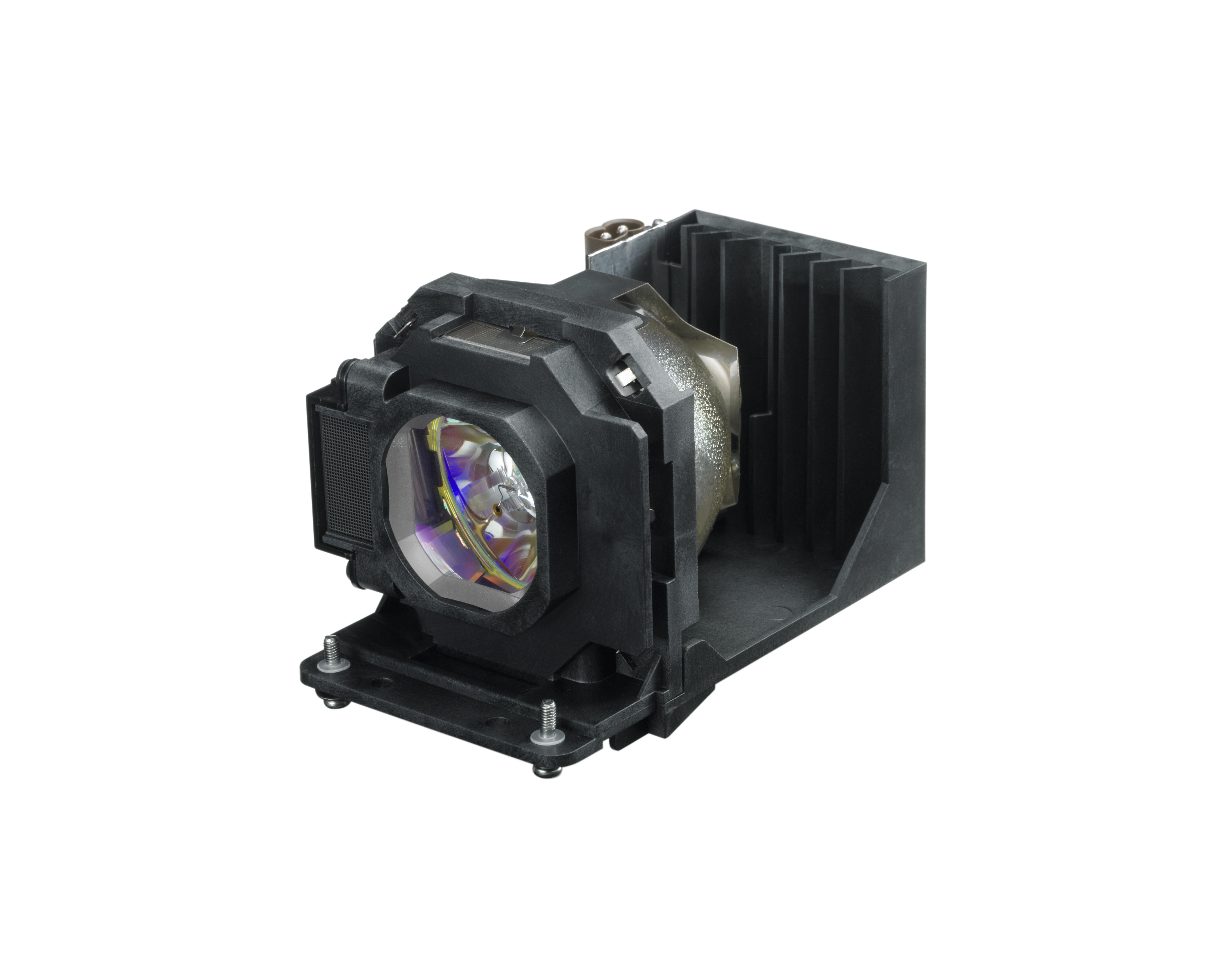

| Light Source |
220W UHM Lamp
Article Nr.: ET-LAB80
|
|
| Light Life |
3000 h. |
| Operating Costs |
|
|
278 - 334 cm
|
 |
|
Lux: |
1167 Lux |
|
Room light max.: |
233 Lux |
|
Candela pro m²: |
370 cd/m² |
|
Foot-Lamberts: |
108 fL |
|
 |
| 59 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Manual |
| Zoom |
Manual 1,2 |
| Objective |
F=1,64-1,87 f=18,8-22,56 mm |
| Throw Ratio |
1,39-1,67:1 show |
| Audio |
1,0W Mono |
| Connections |
D-sub 15 pin in und out
S-Video in
Cinch Video in
Cinch Stereo in
Mini Jack Audio in und out
RS232C
 |
| Ceiling Mounting |
Yes, is possible. |
| Power |
300W |
| Size WxHxD |
368 x 88 x 233 mm (14,5"x3,5"x9,2") 7,55 L/dm³
|
| Operating Noise |
- |
|
| Weight |
2,96 kg / 4,41 lbs. |
| Keystone |
Vert.: +/-30°
|
| Illumination |
- |
| Frequenz |
H-sync: 15-91 kHz
V-sync: 50-85 Hz
|
| Foot-Lamberts |
108 fL
/ max. 515 cm screen width |
| Candela m² |
370 cd/m² |
| Features |
 Full HD 1080P compatible
Direkt Power Off
Freeze
Blackboard Modus
User logo
Kensington Slot
Password protection
Overscan adjustable
Ambient Light Sensor.
|
|
- |
In Comparison
The Panasonic PT LB90E/U/A compared to others not current "Standard-Portabel" projectors. |
| Ansi-Lumen: |
|
42 |
Weight: |
|
86 |
| Contrast: |
|
1 |
dB: |
|
0 |
| Black level: |
|
74 |
Power cons.: |
|
97 |
| Picture Total Points: | 39 |
Projector Total Points: | 0 |
|
| Popularity Top 100 |
|
| Points: |
|
10 |
| Ranking: |
1750 (From: 7662) |
|
|
|
|
|
| Status |
2009 Discontinued (EOL) // Last update of the data: 2023-08-12
|
