Brief Introduction
Beta 2.5 |

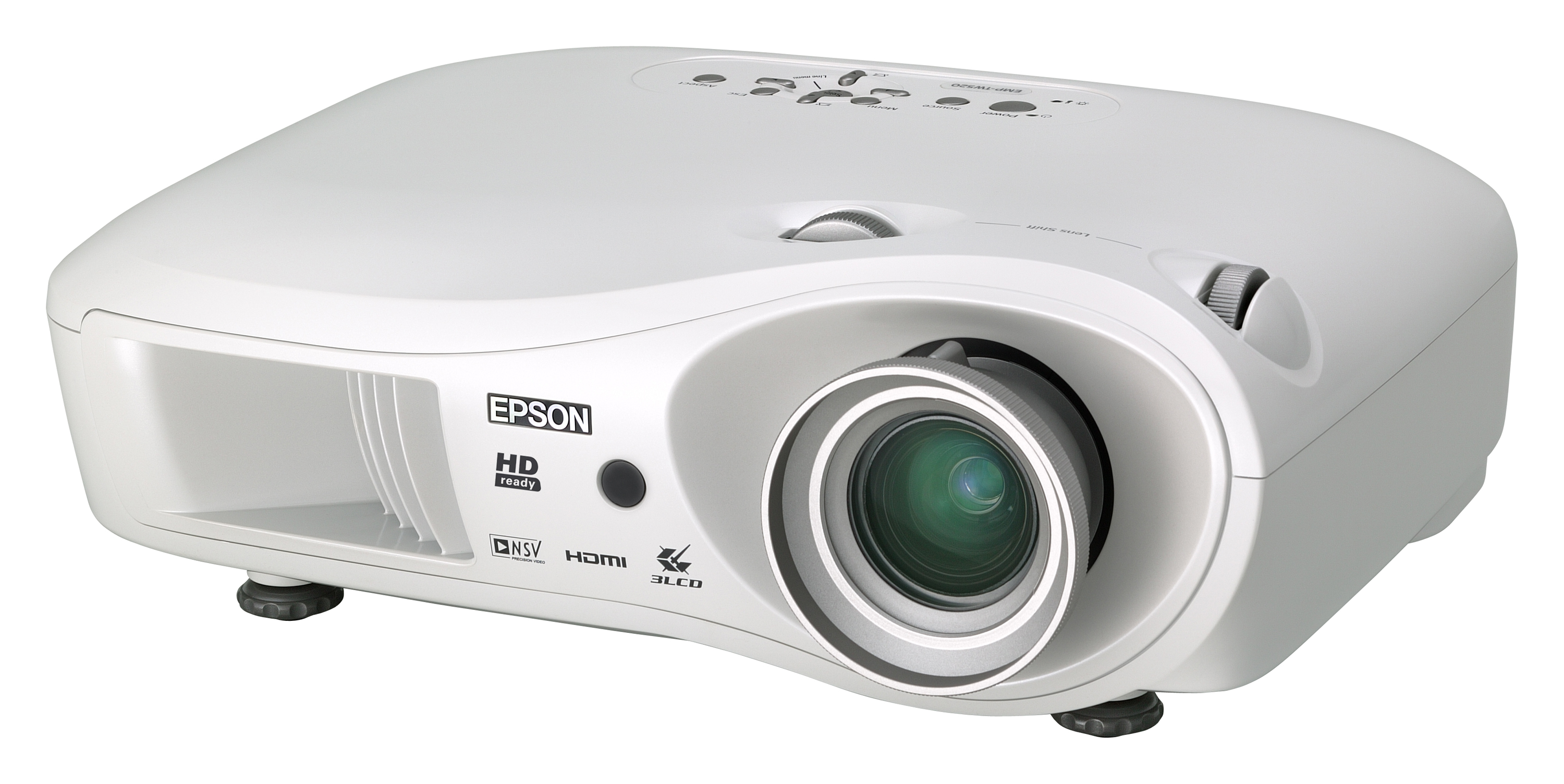

The EMP TW520 LCD home theater has 1400 Ansi lumens, a contrast of 4000:1 and an HDTV 1280 x 720 resolution. The projector also offers a lens shift function that makes image adjustment childs play. The projector can illuminate an image width of up to 380 cm thanks to its 1400 Ansi lumens. In room lighting, however, the picture width should ideally be less than 253 cm. The projector was launched in 2005 and is no longer sold by the manufacturer.
|
| Display Type |
3 x 0,7" LCD TFT Panel mit MLA
HDTV 16/9 Liquid Crystal Display with Micro Lense Array
|
| Ansi-Lumen |
Projector |
1400 |
Screen |
622 Lux (200 cm Screen width) |
| Contrast |
4000:1 full on/off |
4000:1 full on/off
|
| Black Level |
0,3500 min. Lumen |
0,156 min. Lumen |
| Lens shift |
Vert.: +/-100% Hori.: +/-50% manuell
|
| Resolution |
HDTV 1280 x 720
921.600 Pixel
HDTV 1920 x 1080 compressed |
| Video Modes |
PAL, SECAM, NTSC, HDTV 720p, 1080i, EDTV 480p, 576p |
| Disc Recognition |
DVD | HD Blu-ray (komprimiert) | 3D Blu-ray | 4K UHD Blu-ray |
| Application |
Homecinema | Small screen width, rooms with very little ambient light below 100 lumens. |
| Light Source |
170W UHE Lamp
Article Nr.: ELPLP35
|
|
| Light Life |
1700 h. 3000 h. in Eco Mode |
| Operating Costs |
-
|
|
273 - 408 cm
|
 |
|
Lux: |
622 Lux |
|
Room light max.: |
124 Lux |
|
Candela pro m²: |
199 cd/m² |
|
Foot-Lamberts: |
58 fL |
|
 |
| 113 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Manual |
| Zoom |
Manual 1,5 |
| Objective |
F=2,1-2,8 f=21,4-31,7 mm |
| Throw Ratio |
1,365-2,04:1 show |
| Audio |
Nein |
| Connections |
HDMI
D4 in
D-sub 15pin in
YUV in
S-Video in
Cinch Video in
RS232C Din 9pin
12V Trigger out
 |
| Ceiling Mounting |
Yes, is possible. |
| Power |
250 / 200W in Eco Mode |
| Size WxHxD |
406 x 125 x 310 mm (16"x4,9"x12,2") 15,73 L/dm³
|
| Operating Noise |
26 dB in Eco Mode |
Key: 73 cm
Shift: 113 cm |
Shift: 100 cm
|
|
Shift: 100 cm
|
| |
|
|
| Weight |
5,20 kg / 11,46 lbs. |
| Keystone |
Vert.: +/-15°
|
| Illumination |
85% |
| Frequenz |
H-sync: 15-92 kHz
V-sync: 50-85 Hz
Range max.: 110 MHz |
| Foot-Lamberts |
58 fL
/ max. 380 cm screen width |
| Candela m² |
199 cd/m² |
| Features |
 Lens shift Funktion manuell
Eco Mode
Kensington Slot
sRGB
Gamma correction
Dynamic iris
Crestron®-Software compatible.
|
|
Optional only
Google TV /
Fire TV /
Apple TV /
Roku TV /
Xiaomi TV Ads |
In Comparison
The Epson EMP TW520 compared to others not current "Homecinema" projectors. |
| Ansi-Lumen: |
|
12 |
Weight: |
|
100 |
| Contrast: |
|
1 |
dB: |
|
0 |
| Black level: |
|
96 |
Power cons.: |
|
95 |
| Picture Total Points: | 36 |
Projector Total Points: | 0 |
|
| Popularity Top 100 |
|
| Points: |
|
13 |
| Ranking: |
240 (From: 984) |
|
|
|
| In Test
|
-
|
|
|
| Status |
2005 Discontinued (EOL) // Last update of the data: 2025-03-03
|
