Brief Introduction
 Beta 2.5 |

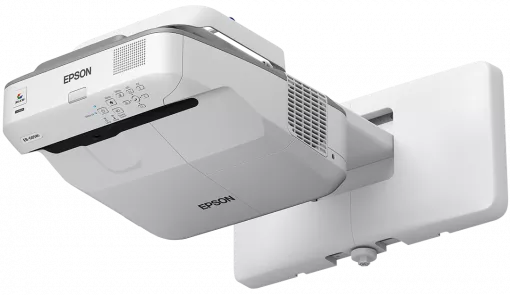

The whiteboard Epson EB-1460UI LCD projector has 4400 Ansi lumens, a contrast of 16000:1 and a WUXGA 1920 x 1200 resolution. The lamp life is specified by the manufacturer as 10000 hours, which converts to over 13.7 years at 2 hours per day. The projector is equipped with an integrated media player, so direct playback of files will not be a problem. As the projector has horizontal and vertical keystone correction, the projector can be set up with plenty of free space in the room. As the EB-1460UI is equipped with a microphone jack and 16W speakers, no additional audio system is required for presentations or training courses. 4400 Ansi lumens ensure that a picture width of 674 cm is also possible. The projector creates rooms with residual light with a smaller image width, we recommend a maximum of 449 cm. The projector offers an interactive whiteboard function for interactive training courses and presentations. A smartphone with MHL connection can be connected directly to the MHL/HDMI port and transmit a 1080p / 60 Hz image mirroring (screen mirroring) while the smartphone is being charged at the same time. It is also Full HD 1080P compatible. The model built in 2017 is no longer offered by Epson, but is still very popular in our projector database.
|
Display Type |
3 x 0,67" LCD TFT Panel mit MLA WUXGA 16/9 Liquid Crystal Display with Micro Lense Array
|
Ansi-Lumen |
Projector |
4400 / 2900 im Eco Mode |
Screen |
1956 Lux (200 cm Screen width) |
Contrast |
16000:1 full on/off |
16000:1 full on/off
|
Black Level |
0,2750 min. Lumen |
0,122 min. Lumen |
Offset |
35,29% show
|
Resolution |
WUXGA 1920 x 1200
2.304.000 Pixel |
Video Modes |
Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p EDTV 480p, 576p Media player formats: Image (.jpg)
Image (.bmp)
Image (.gif )
Image (.png)
Document or
image (.pdf)
Motion JPEG
movie (.avi) |
Application |
Whiteboard | Training and company presentations, as well as product presentations. Wide screen width or rooms with plenty of light (over 200 lumens). |
Light Source |
300W UHE Lamp Article Nr.: ELPLP92
|
|
Light Life |
5000 h. 10000 h. in eco Mode |
Operating Costs |
-
|
|
54 - 74 cm
|
 |
|
Lux: |
1956 Lux |
|
Room light max.: |
391 Lux |
|
Candela pro m²: |
624 cd/m² |
|
Foot-Lamberts: |
182 fL |
|
 |
| 40 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
Focus |
Manual |
Zoom |
No Zoom 1,37 |
Objective |
F=1,6 f=4,2mm |
Throw Ratio |
0,27-0,37:1 show |
Audio |
16W |
Connections |
2 x HDMI mit MHL in
DVI-D in
D-Sub 15 pin in und out
Mini Jack Audio in und out
Mikrofon in
RS232C
RJ45 in
USB Typ A,B |
Ceiling Mounting |
Yes, is possible. |
Power |
490 / 400W in Eco Mode |
Size WxHxD |
367 x 155 x 375 mm (14,4"x6,1"x14,8") 21,33 L/dm³
|
Operating Noise |
38 / 28 dB in Eco Mode |
Key: 43 cm |
Key: 3 cm |
| Key: 3 cm |
| |
|
|
Weight |
8,50 kg / 17,64 lbs. |
Keystone |
Vert.: +/-3° Hori.: +/-3°
|
Illumination |
- |
Frequenz |
H-sync: 15-92 kHz V-sync: 50-85 Hz |
Foot-Lamberts |
182 fL
/ max. 674 cm screen width |
Candela m² |
624 cd/m² |
Features |
Full HD 1080P compatible
Direkt Power Off
Integrated Mediaplayer
Blackboard Modus
User logo
Eco Mode
Kensington Slot
sRGB
Password protection
Remote control with mouse control
Wi-Fi network compatible. Lan network compatible. Short-throw projector
Crestron®-Software compatible.
Whiteboard function with stylus and gesture control.
|
|
über HDMI MHL |
In Comparison
The Epson EB-1460UI compared to others not current "Whiteboard" projectors. |
Ansi-Lumen: |
|
43 |
Weight: |
|
89 |
Contrast: |
|
1 |
dB: |
|
95 |
Black level: |
|
98 |
Power cons.: |
|
70 |
Picture Total Points: | 47 |
Projector Total Points: | 85 |
|
Popularity Top 100 |
|
Points: |
|
82 |
Ranking: |
3 (From: 297) |
|
|
|
Optional accessories |

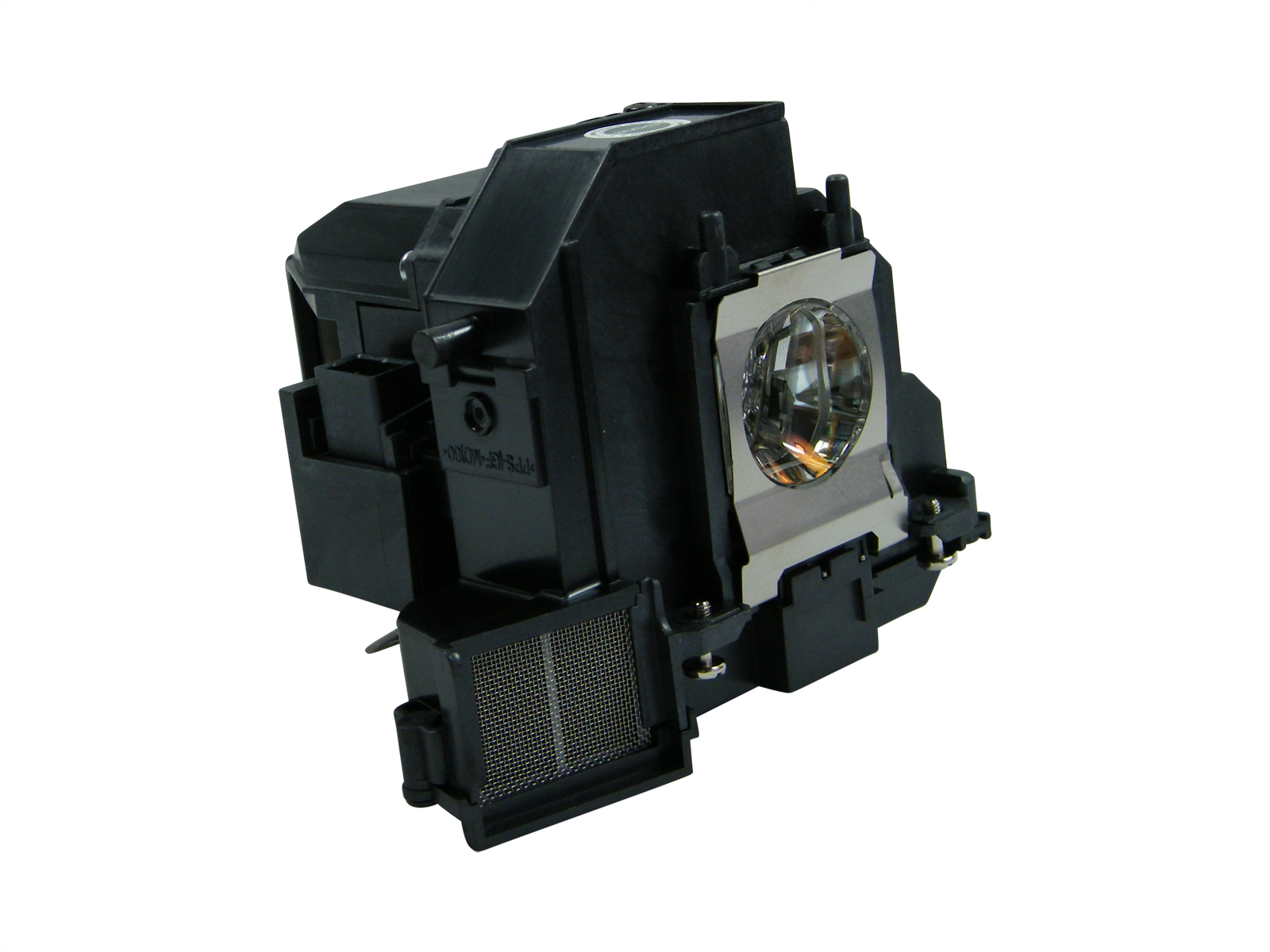

 | Osram bulb only | NLMP24108 | 86,77 € |  | lamp Original | ELPLP92 / V13H010L92 | 103,83 € |  | Compatible lamp | LMP-K24108 | 91,18 € |  | air filter compatible | Alternative zu:ELPAF45 / V13H134A45 | 46,71 € |  | Interactive Pen Original | V12H776010 / ELPPS04 | 19,29 € |  | Interactive Pen Original | V12H775010 / ELPPS03 | 19,29 € |  | Interaktictive pen blue Original | V12H774010 / ELPPN05B | 71,73 € |  | Interaktictive pen orange Original | V12H773010 / ELPPN05A | 71,73 € |  | remote control Original | 2173587 | 30,05 € |  | air filter Original | ELPAF45 / V13H134A45 | 47,61 € |  | Ceiling Mount 100-120 | Halterung100 | 47,86 € |
|
Status |
2017 Discontinued (EOL) // Last update of the data: 2023-09-20 Created: 2017-03-16 16:27:41
|
Data |
Product Sheet english
Product Sheet english HC
User Manual english (9.03 MB)

|
