Brief Introduction
 Beta 2.5 |

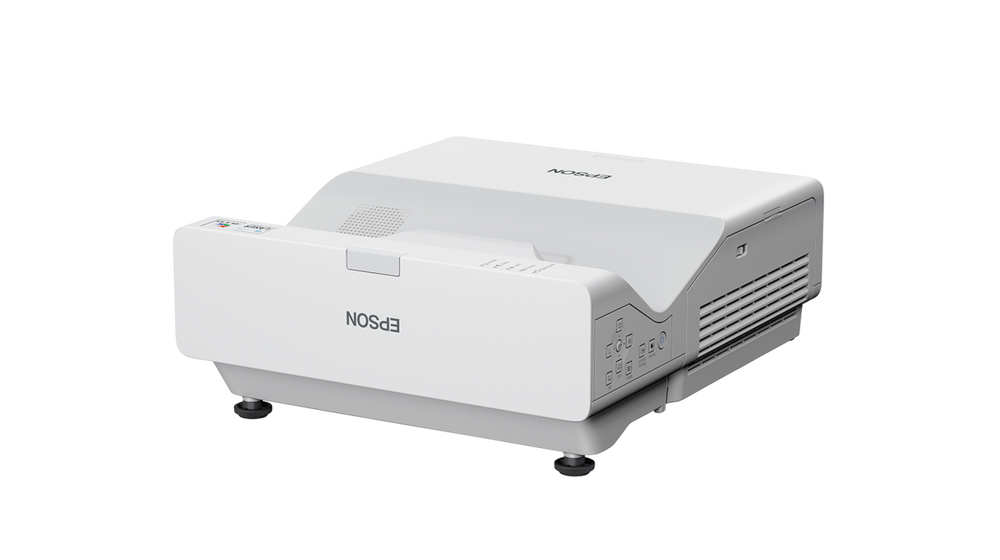

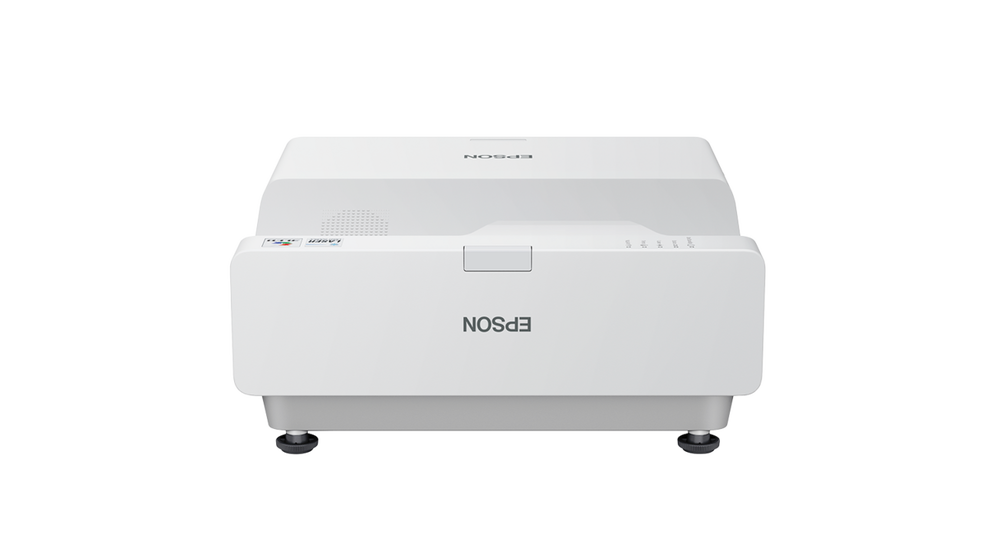

The Epson EB-770Fi 3D laser LCD projector has 4100 Ansi lumens, a contrast of 2500000:1 and an HDTV 1920 x 1080 resolution. The manufacturer specifies a laser service life of 20000 hours, which is over 13.7 years with a daily viewing time of 4 hours. The integrated media player can play files directly. Thanks to the horizontal and vertical keystone correction, the projector can be positioned very freely. Thanks to the short throw projection ratio of just 0.25:1, the projector is not distracting in the room. For a 2m wide image, the projector only needs to be 50 cm away from the screen. As the projector recognizes Miracast screen mirroring signals, it is possible to play videos with a high resolution and surround sound directly from a smartphone, tablet, PC (Android, Windows and iOS) via WLAN. It is also compatible with Full HD 1080P and 4K (compressed) as well as 3D, meaning that all Blu-ray formats currently available can be recognized by the projector.
|
Display Type |
3 x 0,62" LCD TFT Panel HDTV 16/9 Liquid Crystal Display
|
Ansi-Lumen |
Projector |
4100 |
Screen |
1822 Lux (200 cm Screen width) |
Contrast |
2500000:1 full on/off |
2500000:1 full on/off
|
Black Level |
0,0016 min. Lumen |
0,001 min. Lumen |
Offset |
33,33% show
|
Resolution |
HDTV 1920 x 1080
2.073.600 Pixel UHD (4K+2K) 4096 x 2160 compressed |
Video Modes |
Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p, 4K UHD (komprimiert), 3D, EDTV 480p, 576p Media player formats: .jpg, .bmp, .gif, .png, .avi, .mp4, .mov |
Disc Recognition |
DVD | HD Blu-ray | 3D Blu-ray | 4K UHD Blu-ray |
3D Compatibility |
Frame-Packing (Full HD 3D) | Side-by-Side | Top-and-Bottom Frame Sequential (3D Ready) |
Application |
Short Distance | Wide screen width or rooms with plenty of light (over 200 lumens). |
Light Source |
Laser
|
|
Light Life |
20000 h. Normal / 30000 h. Eco |
Operating Costs |
0,00 € Laser
|
|
50 - 70 cm
|
 |
|
Lux: |
1822 Lux |
|
Room light max.: |
364 Lux |
|
Candela pro m²: |
579 cd/m² |
|
Foot-Lamberts: |
169 fL |
|
 |
| 37 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
Focus |
Manual |
Zoom |
No Zoom 1,4 |
Objective |
F=1,6 f=3,7mm |
Throw Ratio |
0,25-0,35:1 show |
Audio |
1 x 16W |

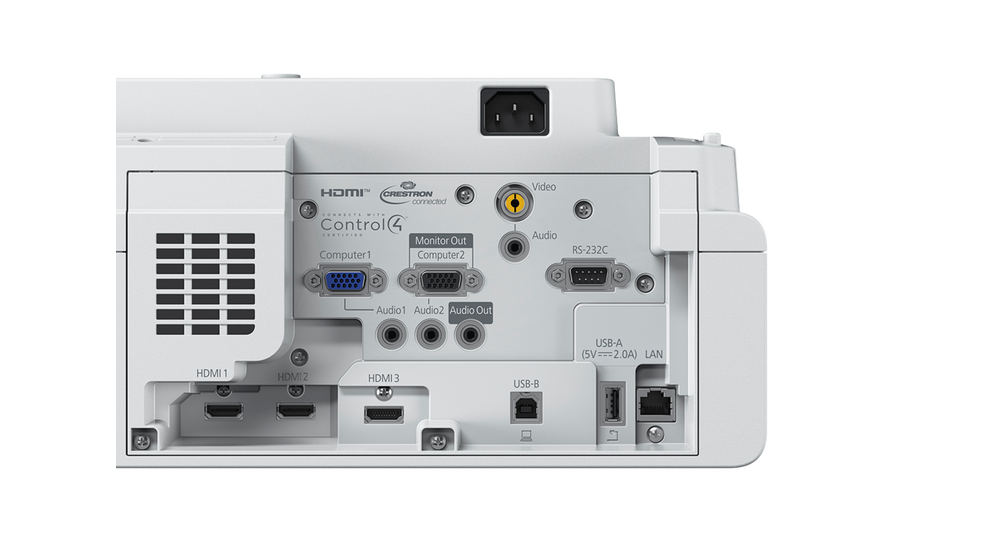

Connections |
3x HDMI in
D-sub 15pin in und out
Cinch Video in
Cinch Stereo in
Mini Jack Audio in und out
USB-A in
USB-B in
RS232C Din 9 pin in
RJ45 in
 |
Ceiling Mounting |
Yes, is possible. |
Power |
263W / 199W Eco |
Size WxHxD |
356 x 133 x 395 mm (14"x5,2"x15,6") 18,7 L/dm³
|
Operating Noise |
37 / 27 dB in Eco Mode |
Key: 40 cm |
Key: 3 cm |
| Key: 3 cm |
| |
|
|
Weight |
6,00 kg / 13,23 lbs. |
Keystone |
Vert.: +/-3° Hori.: +/-3°
|
Illumination |
- |
Frequenz |
V-sync: 192-240 Hz |
Foot-Lamberts |
169 fL
/ max. 651 cm screen width |
Candela m² |
579 cd/m² |
Features |
Real Full HD 3D
Full HD 1080P compatible
Integrated Mediaplayer
Eco Mode
Kensington Slot
Warping
360° installable
Password protection
PJLink™
Control via web browser
Wi-Fi network compatible. Lan network compatible. Short-throw projector
DICOM
Stylus and gesture control
Compatible with document camera
|
|
Miracast |
In Comparison
The Epson EB-770Fi compared to others current "Short Distance" projectors. |
Ansi-Lumen: |
|
49 |
Weight: |
|
99 |
Contrast: |
|
50 |
dB: |
|
32 |
Black level: |
|
100 |
Power cons.: |
|
81 |
Picture Total Points: | 66 |
Projector Total Points: | 71 |
|
Popularity Top 100 |
|
Points: |
|
13 |
Ranking: |
77 (From: 313) |
|
|
|
|
Status |
2023 Current model // Last update of the data: 2023-10-17 Created: 2023-07-28 08:37:17
|
Data |
Product Sheet english HC
Quick Start Guide
User Manual english (8.14 MB)

|
