NEC MT1065G
| Nec MultiSync MT1065
|
| Customer review |
|
 |
|
Brief Introduction
Beta 2.5 |

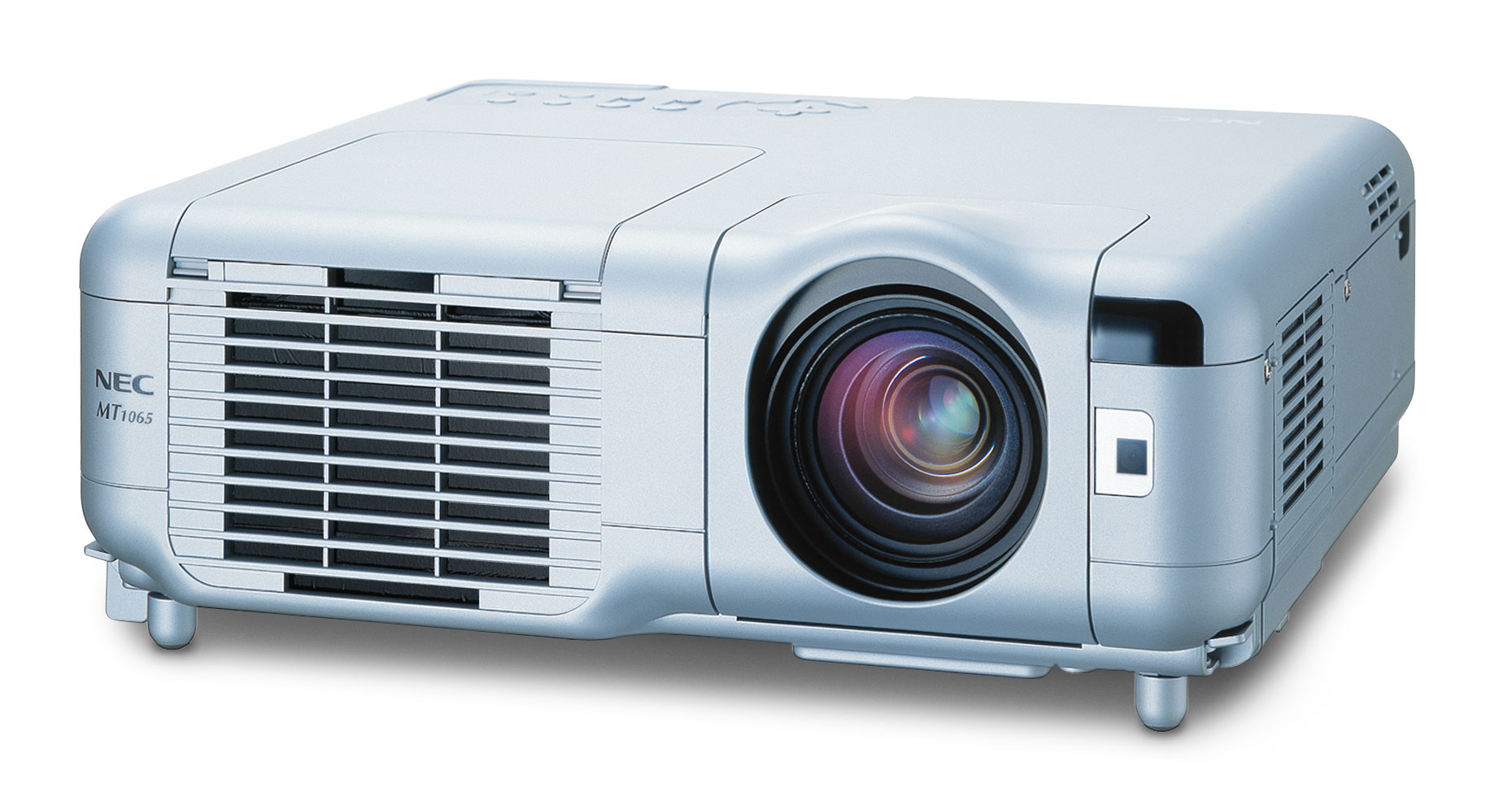

A brief introduction to the Nec MT1065. The standard portable LCD projector has an XGA 1024 x 768 resolution and a contrast of 800:1. The integrated media player allows files to be played directly. As the projector has horizontal and vertical keystone correction, the projector can be set up with plenty of free space in the room. A picture width of up to 493 cm is possible. However, the image should be smaller in room light. We recommend max. 329 cm. Furthermore, the projector can play 1080P without any problems. The projector was launched in 2002 and is no longer sold by the manufacturer.
|
| Display Type |
3 x 1,0" LCD TFT Panel mit MLA
XGA 4/3 Liquid Crystal Display with Micro Lense Array
|
| Ansi-Lumen |
Projector |
3200 / 2600 Eco Mode 1900 Super Eco Mode |
Screen |
1067 Lux (200 cm Screen width) |
| Contrast |
800:1 full on/off |
800:1 full on/off
|
| Black Level |
4,0000 min. Lumen |
1,339 min. Lumen |
| Offset |
50% show
|
| Resolution |
XGA 1024 x 768
786.432 Pixel
UXGA 1600 x 1200 compressed |
| Video Modes |
PAL, SECAM, NTSC, HDTV 720p, 1080i, 1080p, EDTV 480p, 576p
Media player formats: HTML, JPEG and BMP |
| Application |
Standard-Portabel | External training and company presentations, as well as product presentations.
Medium screen width or rooms with a little more ambient light, max. 200 lumens. |
| Light Source |
275W NSH Lamp
Article Nr.: 50022279 / MT60LPS
|
|
| Light Life |
2000 h. 3000 h. in Eco Mode |
| Operating Costs |
-
|
|
300 - 420 cm
|
 |
|
Lux: |
1067 Lux |
|
Room light max.: |
213 Lux |
|
Candela pro m²: |
339 cd/m² |
|
Foot-Lamberts: |
99 fL |
|
 |
| 75 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Automatic |
| Zoom |
Powered 1,35 |
| Objective |
F=1,74-2,18 f=30,8-41,6 mm |
| Throw Ratio |
1,5-2,1:1 show |
| Audio |
2 x 5W |
| Connections |
DVI in
D-sub 15pin in und out
5 x BNC RGBHC in
S-Video in
Cinch Video in
Cinch Stereo in und out
USB Typ A, B
mini jack in und out
RS232C
PCMCIA in
 |
| Ceiling Mounting |
Yes, is possible. |
| Power |
390W |
| Size WxHxD |
334 x 115 x 323 mm (13,1"x4,5"x12,7") 12,41 L/dm³
|
| Operating Noise |
39 / 34 dB in Eco Mode |
Key: 327 cm |
Key: 173 cm |
| Key: 173 cm |
| |
|
|
| Weight |
5,90 kg / 13,01 lbs. |
| Keystone |
Vert.: +/-40°
Hori.: +/-30°
|
| Illumination |
- |
| Frequenz |
H-sync: 15-100 kHz
V-sync: 48-120 Hz
Range max.: 102 MHz |
| Foot-Lamberts |
99 fL
/ max. 493 cm screen width |
| Candela m² |
339 cd/m² |
| Features |
 Full HD 1080P compatible
Integrated Mediaplayer
Freeze
Blackboard Modus
User logo
Eco Mode
Kensington Slot
sRGB
Gamma correction
Password protection
Remote control with laser pointer und mouse control
Optional Wi-Fi network compatible.
Overscan adjustable
Crestron®-Software compatible.
Digital Zoom
automatic focus and colour adjustment.
AdvancedAccuBlend
ColorManagement System
|
|
- |
In Comparison
The Nec MT1065 compared to others not current "Standard-Portabel" projectors. |
| Ansi-Lumen: |
|
38 |
Weight: |
|
71 |
| Contrast: |
|
1 |
dB: |
|
26 |
| Black level: |
|
85 |
Power cons.: |
|
96 |
| Picture Total Points: | 41 |
Projector Total Points: | 64 |
|
| Popularity Top 100 |
|
| Points: |
|
21 |
| Ranking: |
122 (From: 7662) |
|
|
|
|
|
|
Optional Lenses |
|
| Name | Ratio | Distance | Shift V | Shift H | Zoom |
| MT60-26ZL | 2.66-4.22:1 | 532-844 m |
50% Fix |
|
Powered |
| MT60-10RL | 1:1 | 200 m |
0.0% Fix |
|
No Zoom |
|
| Status |
2002 Discontinued (EOL) // Last update of the data: 2023-08-04
|
| Data |
 installations Guide 10ZL
installations Guide 26ZL
Product Sheet english
Product Sheet english AU
Product Sheet english HC
Product Sheet Flyer english
Product Sheet Installations Guide
Product Sheet UK
Product Sheet USA
Product Sheet USA 2
User Manual english (2.78 MB)

|
|
|
Autor:
Dan 04.01.15 |
|
4.5 Stars |
Secret tip for low budgets - ebay |
|
Super device, already available for 50-100€ (2014), depending on lamp hours.
Picture is good, only the black level could be lower, but is still within the range for entry-level home theater.
(However, a suitable installation location for the screen should first be considered before talking about the black level (no white walls directly next to the screen (a distance of 1m or more should be maintained). Without a fixed and optimized installation location as well as dark walls and a darkened room, the problem of the black level is secondary for the time being)
Overall, the projector is very versatile and not at all installation-critical, as it has many correction functions and a large zoom range. This means that you get a distortion-free image on the screen, even when set up sideways (however, each correction is accompanied by a slight loss of quality).
Lamps are available from 50€ without housing and 70€ with housing.
Lamp life for me approx. 700 lamp hours, 2nd lamp according to predecessor and service menu. No problems.
Bulray via HD Fury or HDMI to VGA converter possible, as DVI without HDCP.
Conclusion:
For HDTV and 1-2 times DVD/Bluray per week or for the World Cup highly recommended.
|
|
|
Autor:
Julian S. 26.06.13 |
|
5 Stars |
Geheimtip-Gebrauchtgerät |
|
This device is an absolute insider tip !
Highly recommended, e.g. on Ebay very cheap possible to buy at auction !
|
|
|
Autor:
Metzger Steve 10.04.13 |
|
4.5 Stars |
Private |
|
Simply SUPER, that‘s all I can say, everything you need is included!!! Thanks and keep up the good work, mfg Steve
|
|
|
Autor:
Tom D. 15.11.05 |
|
4.8 Stars |
Expansion of special features. |
|
Thanks to the innovative integrated image sensor, functions such as autofocus and automatic wall color correction could be implemented.
Using the 3D Reform functions to support projection from different angles and Auto 3D Reform, images can be automatically corrected .
By connecting the USB mouse (included in the standard set), you can operate the projector just like a PC.
USB storage devices and USB memory card readers can be used.
The viewer function allows you to use a PC card to present without a PC.
|
|
|
|
Nec Website
