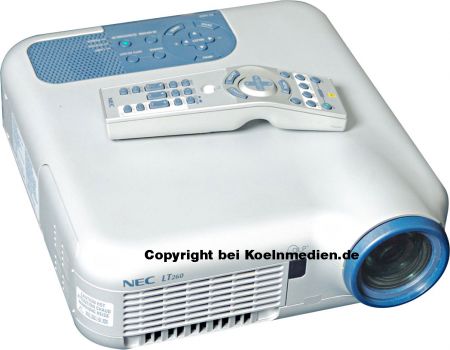

The LT260K is a DLP projector by Nec, whose specifications list 2400 ANSI lumens, a contrast of 1600:1 and a XGA 1024 x 768 resolution. The manufacturer rates the durability of the included lamp at 2000 hours. The image geometry can be adjusted via the built-in keystone correction so that a clean, rectangular display is achieved even with non-ideal placement. Regarding projection size, the value of 2400 ANSI lumens allows for an image width of up to 427 cm in darkened environments. In rooms with ambient light, the image width should be correspondingly reduced to a maximum of 285 cm. Regarding signal processing, the model is compatible with incoming 1080P content. Also on board is a local media player that allows reading and playing content directly from storage media. Since entering the market in 2003, production has been discontinued; the manufacturer no longer actively offers the model.
Display Type
1 x 0,69" DMD 12° DDR DLP Chip XGA 4/3 Ti Digital Light Processing Chip
Ansi-Lumen
Projector
2400 / 1900 im Eco Mode
Screen
800 Lux (200 cm Screen width)
Contrast
1600:1 full on/off
1600:1 full on/off
Black Level
1,5000 min. Lumen
0,501 min. Lumen
Offset
70% 30 cm over screen top edge →
SCREEN
+Projector
Resolution
XGA 1024 x 768
786.432 Pixel
SXGA 1280 x 1024 compressed
Video Modes
NTSC, PAL, SECAM, NTSC 4.43, Pal 60 (HDTV1080p/60, HDTV1080p/50, HDTV 1080i/60, HDTV 1080i/50), 1280 x720 (HDTV720p) Media player formats: idx-, Text-, HTML-, JPEG- und BMP-Format
Application
Standard-Portabel | External training and company presentations, as well as product presentations. Medium screen width or rooms with little light, max. 100 lumens.
2 Eingänge: Mini D-Sub, 15-polig
Komponentensignal (YPbPr) und SCART-RGB via RGB
1 Ausgang: Mini D-Sub, 15-polig
1 Eingang: Cinch
S-VIDEO 1 Eingang: DIN 4-polig (Hoseidenbuchse)
1 Eingang: 3,5 mm Stereo Klinkenstecker
1 Eingang: 2 x CINCH (L/R)
1 Eingang: 3,5 mm Stereo Klinkenstecker
1 Eingang: DIN 8pin/USB Typ B
USB 2 Eingänge: A und B-Typ
PC Karte 1 Eingang: PCMCIA Typ-2
Ceiling Mounting
Yes, is possible.
Power
280W
Size WxHxD
260 x 92 x 275 mm (10,2"x3,6"x10,8") 6,58 L/dm³
Operating Noise
32 / 29 dB in Eco Mode
Key: 424 cm
Key: 219 cm
Key: 219 cm
Key: 214 cm
Weight
2,90 kg / 6,39 lbs.
Keystone
Vert.: +/-40° Hori.: +/-30°
Illumination
-
Frequenz
H-sync: 15-100 kHz V-sync: 50-120 Hz Range max.: 135 MHz
Full HD 1080P compatible Integrated Mediaplayer Freeze Eco Mode Kensington Slot sRGB Gamma correction Password protection Remote control with laser pointer und mouse control Optional Wi-Fi network compatible. Optional LAN network compatible. Crestron®-Software compatible. Digital Zoom Digital 3D Reform Advanced AccuBlend ChalkBoard — ‘draws’ and writes notes on a projected image. Colour Management System
A really good device that leaves nothing to be desired in terms of contrast, brightness and colors.
The many setting options and connections would also probably satisfy almost
all needs.
If you see the low used prices, an absolute recommendation!
Good quality and top picture at very pleasant prices! ......
Autor:
kinokino 07.06.06
5
Stars
Dream
Have had the device since January 2004. unfortunately the lamp broke and I had no projector for my home theater for some time. during this time I have seen many projectors and I have not passed a plasma TV unnoticed. nevertheless, I decided to buy a replacement lamp. when I set up my nec now I was very happy that I did not let myself be carried away by other products... despite its age, it‘s a great device: bright, sharp and relatively quiet (in eco mode)!!! Even my new girlfriend commented: Good picture!!! Really nice!!! I have to say that she has 0 knowledge of such things ;-)
Autor:
triad 06.01.06
5
Stars
Super
The projector is impressive. It‘s good quality for its age. I don‘t regret buying it at all.
Full HD 1080P compatible
