Epson USA Pro L20000UNL


Model: V11H833820

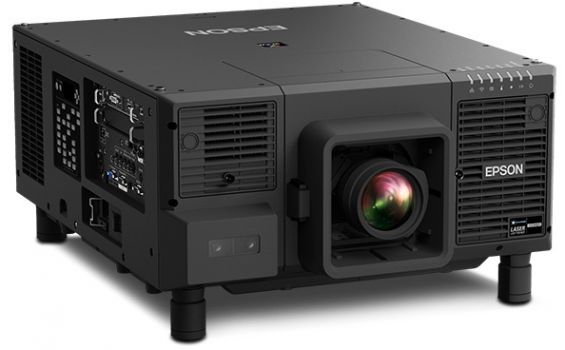

Image Epson USA Pro L20000UNL
Customer review
Offer Ads
Discover other popular projectors on Amazon!
Model Overview The equipment of the Epson USA Pro L20000UNL projector includes 20000 ANSI lumens, a contrast of 2500000:1 with a WUXGA 1920 x 1200 display. The manufacturer lists the lifespan for this model at 20000 hours – calculating to 13.7 years at four hours of use per day.
To meet a wide variety of installation conditions, the projector offers the option of using different interchangeable lenses. Verifying the respective distances is easily possible via the Projector Calculator.
Regarding projection size, the value of 20000 ANSI lumens allows for an image width of up to 1437 cm in darkened environments. In rooms with ambient light, the image width should be correspondingly reduced to a maximum of 958 cm.
In terms of video signals, the device processes resolutions up to Full HD 1080P and 4K. Regarding professional networking, the device offers a classic RJ45 LAN port for control alongside HDBaseT for the lossless transmission of picture and sound over long distances.
Since entering the market in 2020, production has been discontinued; the manufacturer no longer actively offers the model. In our projector directory, the device still generates high interest.
Display Type       3 x 1,03" LCD TFT Panel
      WUXGA 16/9 Liquid Crystal Display
Ansi-Lumen
Projector
20000
Screen
8889 Lux (200 cm Screen width)
Contrast 2500000:1 2500000:1
Black Level 0,0080 min. Lumen 0,004 min. Lumen
Offset -
Resolution WUXGA 1920 x 1200
2.304.000 Pixel
UHD (4K+2K) 4096 x 2160 compressed
Video Modes Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p, 4K UHD (komprimiert), EDTV 480p, 576p
Application Event | Very large screen width and rooms with plenty of light and shaded daylight.
Light Source Laser
Light Life 20000 h. 30000 h. in Eco Mode
Operating Costs 0,00 € Laser
The screen width should be larger. It's uncomfortably bright in the dark. too bright
314 - 512 cm
Lux: 8889 Lux
Contrast: 2500000:1
Candela pro m²: 2830 cd/m²
Foot-Lamberts: 826 fL

Screen width:cm
          Room:
Focus Powered
Zoom Powered 1,6
Objective F=1,8-2,35 f=36-57,4 mm
Throw Ratio 1,57-2,56:1 show
Audio -
Connections DVI-D x 1
HDMI x 1 (HDCP2.2)
3G-SDI x 1 (SDI out x 1 - Active through)
HDBaseT x 1
5-BNC
VGA in und out
RS232c
RJ45
USB
Display Port x 2
Ceiling Mounting Yes, is possible.
Power 1860W / 1123W in Eco Mode
Size WxHxD 619,8 x 358,1 x 789,9 mm (24,4"x14,1"x31,1") 174,84 L/dm³
Operating Noise 45 / 38 dB in Eco Mode

Weight 49,58 kg / 108,03 lbs.
Keystone -
Illumination -
Frequenz -
Foot-Lamberts 826 fL / max. 1437 cm screen width
Candela m² 2830 cd/m²
Features Full HD 1080P compatible
Eco Mode
Kensington Slot
Optional Wi-Fi network compatible.
Lan network compatible.
Screen Mirroring Optional only Google TV / Fire TV / Apple TV / Roku TV / Xiaomi TV Ads
In Comparison
The Epson USA Pro L20000UNL compared to others not current "Event" projectors.
Ansi-Lumen:
16 Weight:
82
Contrast:
62 dB:
61
Black level:
100 Power cons.:
80
Picture Total Points:59 Projector Total Points:74
Popularity Top 100
22 popularity points 33 popularity points 34 popularity points 52 popularity points 32 popularity points 51 popularity points
Points:
51
Ranking: 49 (From: 590)
Optional accessories
object lens OriginalV12H004UA3 / ELPLU03S4.138,56 €
object lens OriginalELPLU04 / V12H004U043.808,74 €
object lens OriginalELPLW08 / V12H004W086.188,00 €
object lens OriginalELPLM15 / V12H004M0F1.646,10 €
object lens OriginalV12H004M0B / ELPLM111.715,47 €
object lens OriginalV12H004M0A / ELPLM101.715,47 €
object lens OriginalV12H004U03 / ELPLU03EOL €
object lens OriginalELPLL08 / V12H004L082.776,57 €
ceiling bracketHeavyDuty470,94 €
Optional Lenses
NameRatioDistanceShift V Shift HZoom
ELPLM11 4.85-7.38:1 970-1476 m +/-67% +/-30% Powered
ELPLM10 3.32-5.06:1 664-1012 m +/-67% +/-30% Powered
ELPLM15 2.16-3.48:1 432-696 m +/-67% +/-30% Powered
ELPLW06 1.62-2.22:1 324-444 m +/-67% +/-30%
ELPLL08 7.21-10.11:1 1442-2022 m +/-67% +/-30% Powered
ELPLW08 1.18-1.86:1 236-372 m +/-67% +/-30% Powered
ELPLM08 1.06-1.69:1 212-338 m +/-24% +/-10%
ELPLW05 1.04-1.46:1 208-292 m +/-67% +/-30%
ELPLU04 0.87-1.05:1 174-210 m +/-67% +/-30% Powered
ELPLU03S 0.65-0.78:1 130-156 m +/-67% +/-30%
ELPLX01/ELPLX01W 0.35:1 70 m 51.06% Fix +/-10% No Zoom
Status 2020 Discontinued (EOL) // Last update of the data: 2026-06-09
