Brief Introduction

Beta 2.5

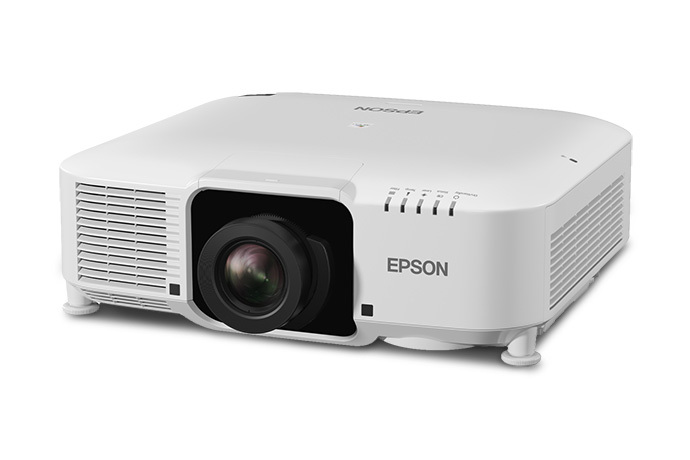

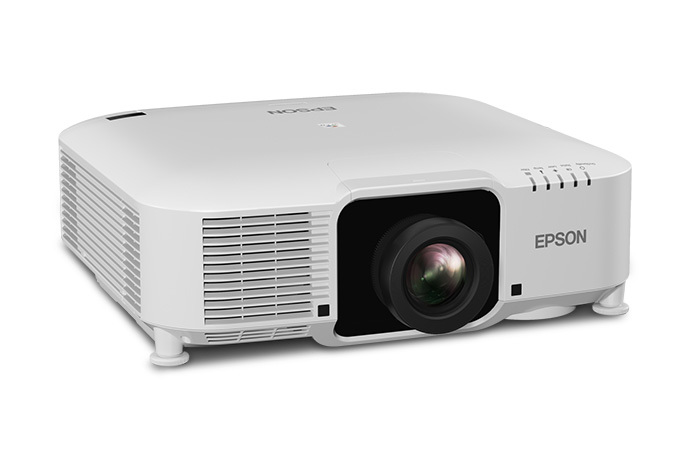

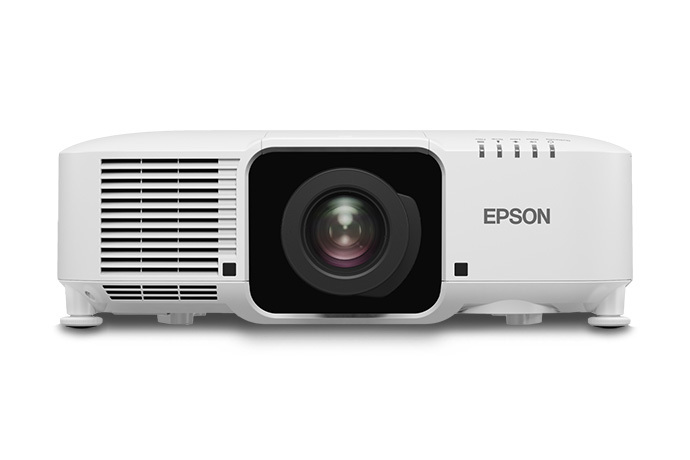

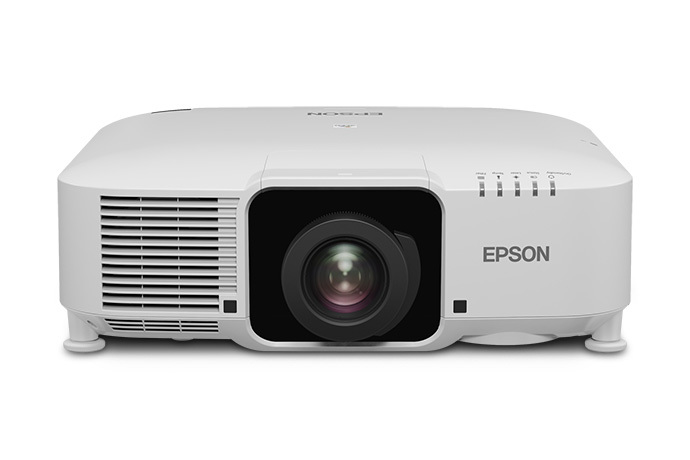

With the Pro L1060UNL, manufacturer Epson USA offers an LCD laser projector with resolution and a contrast of 2500000:1. The manufacturer specifies a laser service life of 20000 hours, which converts to over 13.7 years at 4 hours per day. Including a lens shift and keystone correction function, which provides freedom during installation. An image width of up to 787 cm is possible as the projector has 6000 Ansi lumens. The projector creates rooms with residual light with a smaller image width, max. 525 cm is recommended. The model is also compatible with Full HD 1080P and 4K (compressed). Even projection onto the ceiling is possible thanks to the 360Â° projection. The projector was launched in 2020 and is no longer sold by the manufacturer.

Display Type

3 x 0,76" LCD TFT Panel
WUXGA 16/9 Liquid Crystal Display

Ansi-Lumen

Projector

6000 / 4200 im Eco Mode

Screen

2667 Lux (200 cm Screen width)

Contrast

2500000:1 full on/off

Black Level

0,0024 min. Lumen

0,001 min. Lumen

Lens shift

Vert.: +/-67% Hori.: +/-30%

Resolution

WUXGA 1920 x 12002.304.000 Pixel
UHD (4K2K) 3840 x 2160 compressed

Video Modes

Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p, 4K UHD (komprimiert), EDTV 480p, 576p

Application

Stationary | Permanent installation in the training room and meeting room as well as the conference room.
Very large screen width and rooms with plenty of light and shaded daylight.

Light Source

Laser

Light Life

20000 h. 30000 h. in Eco Mode

Operating Costs

0,00 € Laser

288 - 466 cm


	Lux:	2667 Lux
	Room light max.:	533 Lux
	Candela pro m²:	850 cd/m²
	Foot-Lamberts:	248 fL

75 cm

Screen width: 200 cm Gain:1

Focus

Powered

Zoom

Powered 1,6

Objective

F=1,7-2,3 f=24-38,20 mm

Throw Ratio

1,44-2,33:1 show

Audio

1 x 10W

Connections

HDMI HDCP 2.2 in
DVI-D in
D-sub 15pin in und out
5 x BNC RGBHV in
Cinch Audio in und out
Mini Jack Audio in und out
USB in
RS232C Din 9 pin in
RJ45 in
HDBaseT in

Ceiling Mounting

Yes, is possible.

Power

361W / 263W in Eco Mode

Size WxHxD

545 x 164 x 436 mm (21,5"x6,5"x17,2") 38,97 L/dm³

Operating Noise

34 / 30 dB in Eco Mode

Key: 288 cm Shift: 75 cm
Key: 166 cm Shift: 60 cm		Key: 166 cm Shift: 60 cm
	Key: 288 cm Shift: 75 cm

Weight

16,90 kg / 37,26 lbs.

Keystone

Vert.: +/-45°
Hori.: +/-30°

Illumination

Frequenz

Foot-Lamberts

248 fL / max. 787 cm screen width

Candela m²

850 cd/m²

Features

Full HD 1080P compatible

Lens shift Funktion

Eco Mode

360° installable

24/7 continuous operation capable

Optional Wi-Fi network compatible.

Lan network compatible.

Crestron®-Software compatible.

Screen Mirroring

Optional only Google TV / Fire TV / Apple TV / Roku TV / Xiaomi TV Ads

In Comparison

The Epson USA Pro L1060UNL compared to others not current "Stationary" projectors.

Ansi-Lumen:

Weight:

Contrast:

dB:

Black level:

100

Power cons.:

Picture Total Points:

Projector Total Points:

Popularity Top 100

Points:

Ranking:

156 (From: 2514)

Optional accessories
	object lens Original	V12H004UA3 / ELPLU03S	4.138,56 €
	object lens Original	ELPLU04 / V12H004U04	3.808,74 €
	object lens Original	ELPLW06 / V12H004W06	2.776,57 €
	object lens Original	ELPLW08 / V12H004W08	6.188,00 €
	object lens Original	V12H004Y01 / ELPLX01W	EOL €
	object lens Original	ELPLM15 / V12H004M0F	1.602,94 €
	object lens Original	V12H004M0B / ELPLM11	1.715,47 €
	object lens Original	V12H004M0A / ELPLM10	1.715,47 €
	object lens Original	V12H004M08 / ELPLM08	554,15 €
	object lens Original	V12H004W05 / ELPLW05	1.717,85 €
	object lens Original	V12H004U03 / ELPLU03	EOL €
	object lens Original	ELPLL08 / V12H004L08	2.776,57 €
	ceiling bracket length: 225 mm	Halterung45	85,80 €

Optional Lenses

Name	Ratio	Distance	Shift V	Shift H	Zoom
ELPLM11	4.85-7.38:1	970-1476 m	+/-67%	+/-30%	Powered
ELPLM10	3.32-5.06:1	664-1012 m	+/-67%	+/-30%	Powered
ELPLM15	2.16-3.48:1	432-696 m	+/-67%	+/-30%	Powered
ELPLM08	1.45-2.32:1	290-464 m	+/-67%	+/-30%	Powered
ELPLW06	1.62-2.22:1	324-444 m	+/-67%	+/-30%
ELPLL08	7.21-10.11:1	1442-2022 m	+/-67%	+/-30%	Powered
ELPLW08	1.18-1.86:1	236-372 m	+/-67%	+/-30%	Powered
ELPLW05	1.04-1.46:1	208-292 m	+/-67%	+/-30%
ELPLU04	0.87-1.05:1	174-210 m	+/-67%	+/-30%	Powered
ELPLU03S	0.65-0.78:1	130-156 m	+/-67%	+/-30%
ELPLX01/ELPLX01W	0.35:1	70 m	+/-67%	+/-30%	No Zoom
