Brief Introduction
Beta 2.5 |
The standard portable PowerLite 1810P LCD has 3500 Ansi lumens, a contrast of 500:1 and an XGA 1024 x 768 resolution. The horizontal and vertical keystone correction provides leeway when setting up. 3500 Ansi lumens ensure that a picture width of 515 cm is also possible. The projector creates rooms with residual light with a smaller image width, we recommend a maximum of 343 cm. The projector was launched in 2007 and is no longer sold by the manufacturer.
|
| Display Type |
3 x 0,8" D5 LCD TFT Panel mit MLA
XGA 4/3 Liquid Crystal Display with Micro Lense Array
|
| Ansi-Lumen |
Projector |
3500 / 2500 im Eco Mode |
Screen |
1167 Lux (200 cm Screen width) |
| Contrast |
500:1 full on/off |
500:1 full on/off
|
| Black Level |
7,0000 min. Lumen |
2,348 min. Lumen |
| Offset |
64,6% show
|
| Resolution |
XGA 1024 x 768
786.432 Pixel
UXGA 1600 x 1200 compressed |
| Video Modes |
PAL, SECAM, NTSC, HDTV 720p, 1080i, EDTV 480p, 576p |
| Application |
Standard-Portabel | External training and company presentations, as well as product presentations.
Medium screen width or rooms with a little more ambient light, max. 200 lumens. |
| Light Source |

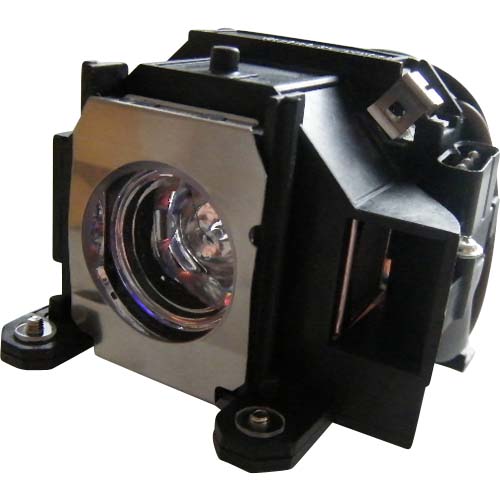

210W UHE Lamp
Article Nr.: ELPLP40 / V13H010L40
|
|
| Light Life |
3000 h. 2500 h. in High Brightness Modus |
| Operating Costs |
-
|
|
294 - 480 cm
|
 |
|
Lux: |
1167 Lux |
|
Room light max.: |
233 Lux |
|
Candela pro m²: |
370 cd/m² |
|
Foot-Lamberts: |
108 fL |
|
 |
| 97 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Manual |
| Zoom |
Manual 1,6 |
| Objective |
F=1,75-2,42 f=24,0-38,2 mm |
| Throw Ratio |
1,469-2,401:1 show |
| Audio |
5W Mono |
| Connections |
D-sub 15 pin in und out
S-Video in
Cinch Video in
Cinch Stereo in
USB Typ B
RS232C
Mini jack Audio in
 |
| Ceiling Mounting |
Yes, is possible. |
| Power |
306W |
| Size WxHxD |
345 x 94,8 x 257 mm (13,6"x3,7"x10,1") 8,33 L/dm³
|
| Operating Noise |
- |
Key: 391 cm |
Key: 170 cm |
| Key: 170 cm |
| |
|
|
| Weight |
2,90 kg / 6,39 lbs. |
| Keystone |
Vert.: +/-45° automatisch
Hori.: +/-30°
|
| Illumination |
- |
| Frequenz |
H-sync: 15-99 kHz
V-sync: 50-120 Hz
|
| Foot-Lamberts |
108 fL
/ max. 515 cm screen width |
| Candela m² |
370 cd/m² |
| Features |
 Freeze
Blackboard Modus
User logo
Eco Mode
Automatic and manual vertical keystone correction
Kensington Slot
sRGB
Password protection
|
|
- |
In Comparison
The Epson USA PowerLite 1810P compared to others not current "Standard-Portabel" projectors. |
| Ansi-Lumen: |
|
42 |
Weight: |
|
86 |
| Contrast: |
|
1 |
dB: |
|
0 |
| Black level: |
|
74 |
Power cons.: |
|
97 |
| Picture Total Points: | 39 |
Projector Total Points: | 0 |
|
| Popularity Top 100 |
|
| Points: |
|
11 |
| Ranking: |
1176 (From: 7662) |
|
|
|
|
|
| Status |
2007 Discontinued (EOL) // Last update of the data: 2023-08-04
|
