| Customer review |
|
 |
|
Brief Introduction
Beta 2.5 |

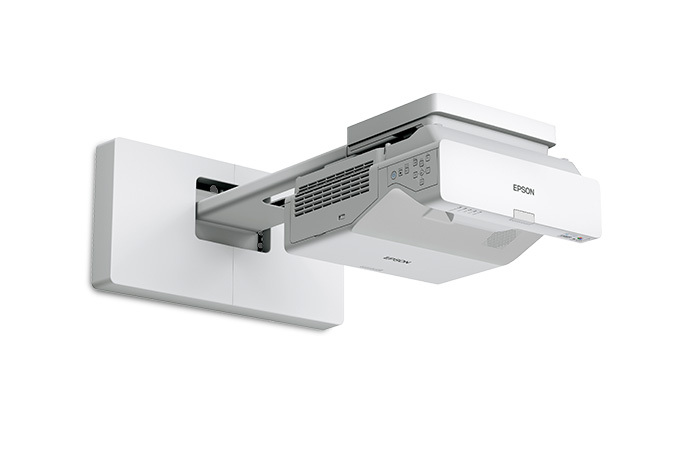

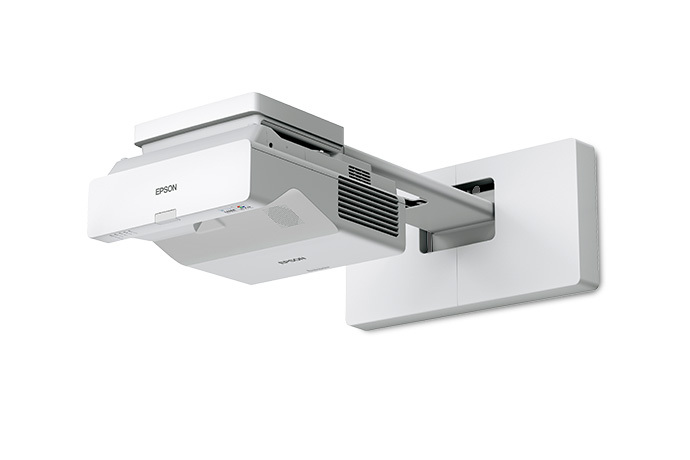

The BrightLink 760Wi 3D laser LCD has 4100 Ansi lumens, a contrast of 2500000:1 and a WXGA 1280 x 800 resolution. The manufacturer specifies a laser service life of 20000 hours, which is over 13.7 years if enjoyed for four hours a day. The projector also offers an integrated media player that can be used to play files directly. Horizontal and vertical keystone correction makes image adjustment childs play. With a projection ratio of just 02.7:1, this projector never gets in the way. For a 2m wide image, the projector only needs to be 540 cm away from the screen. Playing 1080P and 3D is also no problem for the projector.
|
| Display Type |
3 x 0,62" LCD TFT Panel
WXGA 16/10 Liquid Crystal Display
|
| Ansi-Lumen |
Projector |
4100 |
Screen |
1640 Lux (200 cm Screen width) |
| Contrast |
2500000:1 full on/off |
2500000:1 full on/off
|
| Black Level |
0,0016 min. Lumen |
0,001 min. Lumen |
| Offset |
-
|
| Resolution |
WXGA 1280 x 800
1.024.000 Pixel |
| Video Modes |
Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p, 3D, EDTV 480p, 576p
Media player formats: .jpg, .bmp, .gif, .png, .avi, .mp4, .mov |
| Disc Recognition |
DVD | HD Blu-ray (komprimiert) | 3D Blu-ray (komprimiert) | 4K UHD Blu-ray |
| 3D Compatibility |
Frame-Packing (Full HD 3D) | Side-by-Side | Top-and-Bottom
Frame Sequential (3D Ready) |
| Application |
Short Distance | Wide screen width or rooms with plenty of light (over 200 lumens). |
| Light Source |
Laser
|
|
| Light Life |
20000 h. |
| Operating Costs |
0,00 € Laser
|
|
540 - 74 cm
|
 |
|
Lux: |
1640 Lux |
|
Room light max.: |
328 Lux |
|
Candela pro m²: |
521 cd/m² |
|
Foot-Lamberts: |
152 fL |
|
 |
|
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Manual |
| Zoom |
No Zoom 0,14 |
| Objective |
F=1,6 f=3,7mm |
| Throw Ratio |
02,7-0,37:1 show |
| Audio |
16W Mono |

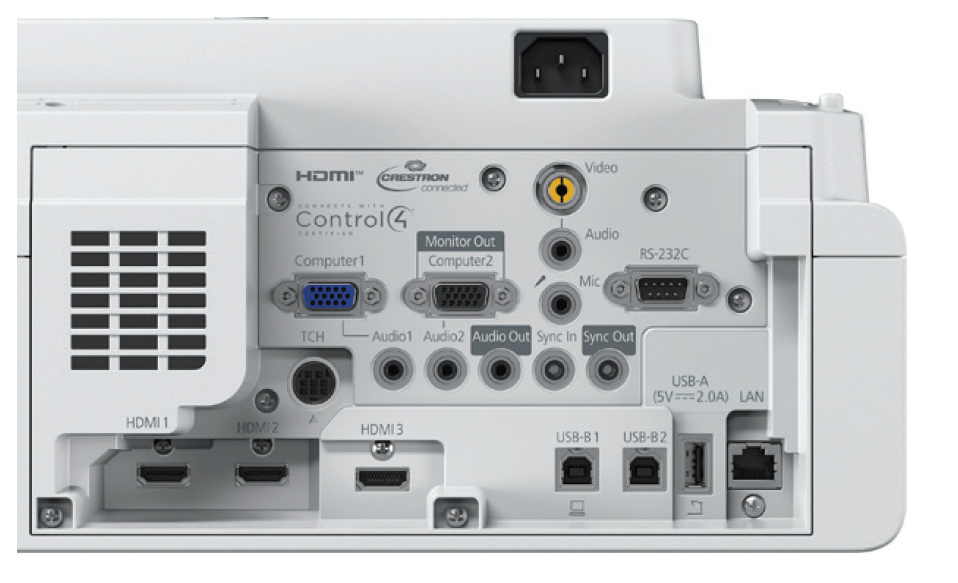

| Connections |
3x HDMI in
D-sub 15pin in und out
RCA Composite Video
Sync (Interactive Synchronization) in und out
Cinch Video in
Cinch Stereo in
Mini Jack Audio 3x in und 1x out
USB-B in
USB-B in
USB-A in
RS232C Din 9 pin in
RJ45 in
 |
| Ceiling Mounting |
Yes, is possible. |
| Power |
277W Normal / 214W ECO |
| Size WxHxD |
429 x 161 x 475 mm (16,9"x6,3"x18,7") 32,81 L/dm³
|
| Operating Noise |
37 / 27 dB in Eco Mode |
Key: 28 cm |
Key: 28 cm | | Key: 28 cm |
| |
|
|
| Weight |
5,90 kg / 11,02 lbs. |
| Keystone |
Vert.: +/-3°
Hori.: +/-3°
|
| Illumination |
- |
| Frequenz |
- |
| Foot-Lamberts |
152 fL
/ max. 651 cm screen width |
| Candela m² |
521 cd/m² |
| Features |
 Real Full HD 3D
Full HD 1080P compatible
Integrated Mediaplayer
Eco Mode
Kensington Slot
Password protection
Wi-Fi network compatible.
Lan network compatible.
Crestron®-Software compatible.
Interactive Modes (2 pens and 6 fingers)
|
|
Optional only
Google TV /
Fire TV /
Apple TV /
Roku TV /
Xiaomi TV Ads |
In Comparison
The Epson USA BrightLink 760Wi compared to others current "Short Distance" projectors. |
| Ansi-Lumen: |
|
49 |
Weight: |
|
99 |
| Contrast: |
|
50 |
dB: |
|
32 |
| Black level: |
|
100 |
Power cons.: |
|
79 |
| Picture Total Points: | 66 |
Projector Total Points: | 70 |
|
| Popularity Top 100 |
|
| Points: |
|
11 |
| Ranking: |
123 (From: 313) |
|
|
|
|
|
| Status |
2022 Current model // Last update of the data: 2024-11-01
