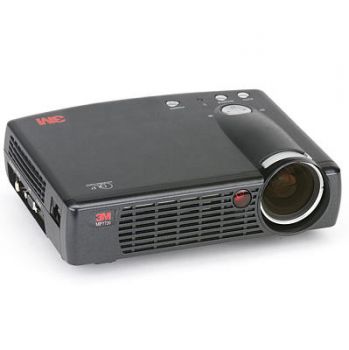

The technical data of the 3M MP 7730 includes 800 ANSI lumens, a contrast of 200:1 as well as a XGA 1024 x 768 display. In operating mode, the installed projector lamp offers a lifespan of 2000 hours. Regarding projection size, the value of 800 ANSI lumens allows for an image width of up to 246 cm in darkened environments. In rooms with ambient light, the image width should be correspondingly reduced to a maximum of 164 cm. This model dates back to 2000 and is no longer part of 3M's current product range.
Display Type
1 x 0,7" DLP Chip XGA 4/3 Ti Digital Light Processing Chip
Ansi-Lumen
Projector
800
Screen
267 Lux (200 cm Screen width)
Contrast
200:1 nach Ansi
200:1 nach Ansi
Black Level
4,0000 min. Lumen
1,355 min. Lumen
Offset
-
Resolution
XGA 1024 x 768
786.432 Pixel
SXGA 1280 x 1024 compressed
Video Modes
NTSC, PAL, SECAM Pal 60 NTSC 4,43
Application
Standard-Portabel | External training and company presentations, as well as product presentations. Small screen width, rooms with very little ambient light below 50 lumens.
Freeze
