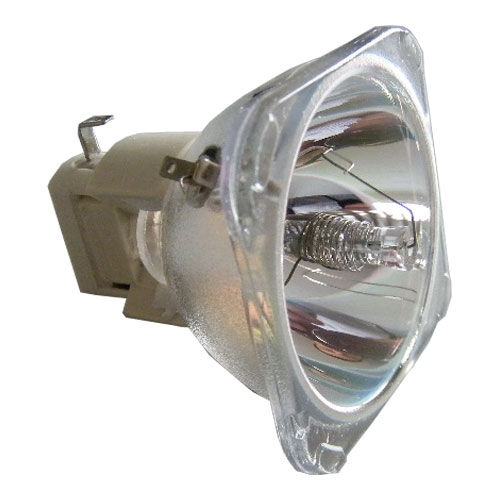

The technical data of the 3M AD20X includes 2200 ANSI lumens, a contrast of 1800:1 as well as a XGA 1024 x 768 display. The manufacturer specifies a runtime of 2000 hours for this projector's lamp. A look at the light output reveals: The 2200 ANSI lumens are sufficient to illuminate an image width of up to 408 cm in darkened rooms. If room light is present, we recommend not exceeding a maximum width of 272 cm. The projector was released in 2010 and is officially no longer distributed by 3M.
Display Type
1 x 0,55" DLP Chip XGA 4/3 Ti Digital Light Processing Chip
Ansi-Lumen
Projector
2200
Screen
733 Lux (200 cm Screen width)
Contrast
1800:1 full on/off
1800:1 full on/off
Black Level
1,2222 min. Lumen
0,408 min. Lumen
Offset
65% 23 cm over screen top edge →
SCREEN
+Projector
Resolution
XGA 1024 x 768
786.432 Pixel SXGA 1280 x 1024 compressed
Standard-Portabel | External training and company presentations, as well as product presentations. Medium screen width or rooms with little light, max. 100 lumens.
Eco Mode
