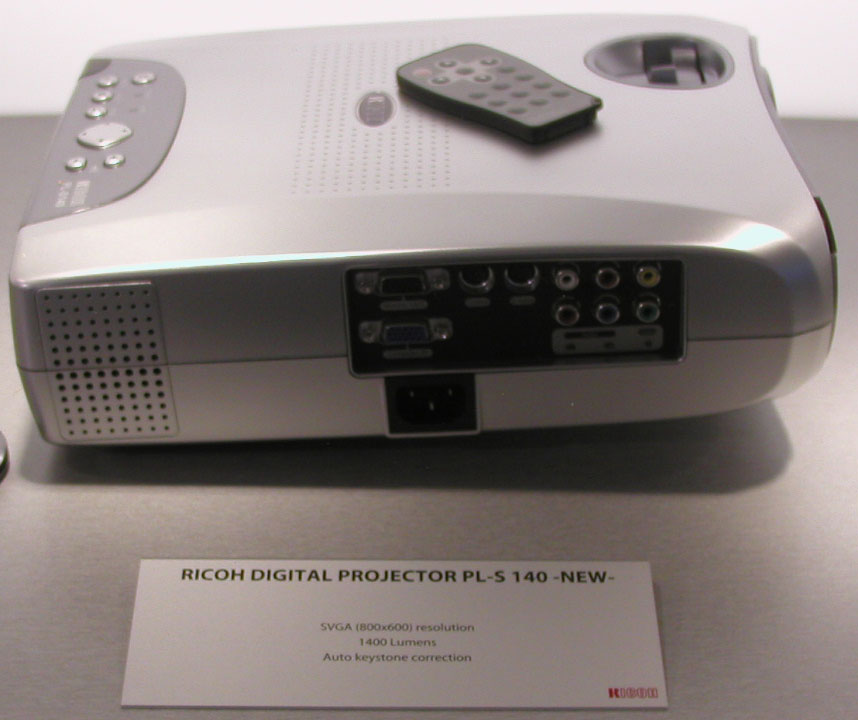

Ricoh PL-S140
Image Ricoh PL-S140
Customer review
✎ Help other users and be the first to share your review.
✎ Help other and be the first to share your review.
Offer Ads
Discover other popular projectors on Amazon!
Model Overview This projector is named PL-S140, originates from Ricoh, and its data sheet shows 1400 ANSI lumens, a contrast of 500:1 and a resolution of SVGA 800 x 600.
Looking at practical performance, up to 326 cm can be illuminated with 1400 ANSI lumens in dark environments. Once daylight is in the room, the image should ideally be no wider than 217 cm.
This model dates back to 2004 and is no longer part of Ricoh's current product range.
Display Type       3 x 0,7" LCD TFT Panel
      SVGA 4/3 Liquid Crystal Display
Ansi-Lumen
Projector
 1400
Screen
 467 Lux (200 cm Screen width)
Contrast 500:1 full on/off 500:1 full on/off
Black Level 2,8000 min. Lumen 0,94 min. Lumen
Offset -
Resolution SVGA 800 x 600
480.000 Pixel
SXGA 1280 x 1024 compressed
Video Modes Pal, Secam, NTSC
Application Standard-Portabel | External training and company presentations, as well as product presentations.
Small screen width, rooms with very little ambient light below 50 lumens.
Light Source - Lamp
Light Life -
Operating Costs -
Calculated brightness quality Good (1.8)
290 - 386 cm
Lux: 467 Lux
Contrast: 500:1
Candela pro m²: 147 cd/m²
Foot-Lamberts: 43 fL

Screen width:cm
          Room:
•
Focus Manual
Zoom Manual 1,3
Objective f=21,5-28 mm
Throw Ratio 1,45-1,93:1 show
Audio 2 x 1W
Connections D-sub 15pin in und out
YUV in
Cinch Video in
Cinch Stereo in
S-Video in
Mini Jack
Ceiling Mounting Yes, is possible.
Power 240W
Size WxHxD 225 x 80 x 280 mm (8,9"x3,1"x11") 5,04 L/dm³
Operating Noise 35dB
Key: 78 cm

Without offset

Key: 78 cm
Weight 3,00 kg / 6,61 lbs.
Keystone Vert.: +/-15°
Illumination -
Frequenz H-sync: 15-97 kHz
V-sync: 50-58 Hz
Range max.: 135 MHz
Foot-Lamberts 43 fL / max. 326 cm screen width
Candela m² 147 cd/m²
Features Freeze
Picture-in-Picture
Screen Mirroring Optional only Google TV / Fire TV / Apple TV / Roku TV / Xiaomi TV Ads
In Comparison
The Ricoh PL-S140 compared to others not current "Standard-Portabel" projectors.
Ansi-Lumen:
15 Weight:
86
Contrast:
1 dB:
36
Black level:
90 Power cons.:
98
Picture Total Points:35 Projector Total Points:73
Popularity Top 100
1 popularity points 6 popularity points 3 popularity points 0 popularity points 1 popularity points 3 popularity points
Points:
3
Ranking: 5406 (From: 7737)
Optional accessories
ceiling bracket length: 100-120mmHalterung10047,86 €
Airfilter universaluni3mm18,15 €
Status 2004 Discontinued (EOL) // Last update of the data: 2026-06-09
Data
Ricoh Website
Product Sheet english

Projektor Ricoh PL-S140 Projektor Ricoh PL-S140
