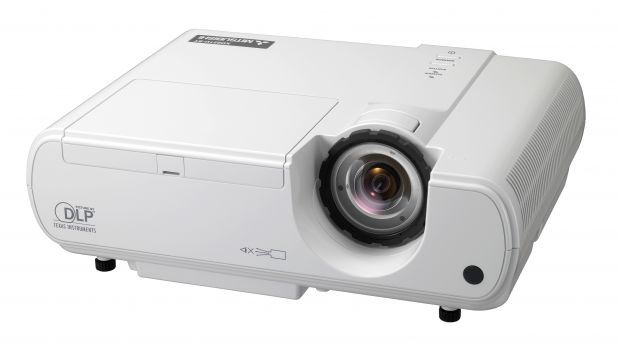

The XD250U ST D is a DLP projector by Mitsubishi, whose specifications list 2600 ANSI lumens, a contrast of 2500:1 and a XGA 1024 x 768 resolution. In operating mode, the installed projector lamp offers a lifespan of 3000 hours. A look at the light output reveals: The 2600 ANSI lumens are sufficient to illuminate an image width of up to 444 cm in darkened rooms. If room light is present, we recommend not exceeding a maximum width of 296 cm. For integration into professional environments, an RJ45 connection is available for network control and remote maintenance. The projector was released in 2011 and is officially no longer distributed by Mitsubishi.
Display Type
1 x 0,55" 12Grad LVDS DDP2230 DLP Chip XGA 4/3 Ti Digital Light Processing Chip
Ansi-Lumen
Projector
2600
Screen
867 Lux (200 cm Screen width)
Contrast
2500:1 full on/off
2500:1 full on/off
Black Level
1,0400 min. Lumen
0,347 min. Lumen
Offset
65% 23 cm over screen top edge →
SCREEN
+Projector
Resolution
XGA 1024 x 768
786.432 Pixel SXGA 1280 x 1024 compressed
Standard-Portabel | External training and company presentations, as well as product presentations. Medium screen width or rooms with little light, max. 100 lumens.
Light Source
230 / 190W im Eco Mode Lamp
Light Life
3000 h. 6000 h. in Eco Mode
Operating Costs
-
Calculated brightness quality Perfect
140 cm (no Zoom)
Lux:
867 Lux
Contrast:
2500:1
Candela pro m²:
278 cd/m²
Foot-Lamberts:
81 fL
98 cm
•
Focus
Manual
Zoom
No Zoom
Objective
-
Throw Ratio
0,7:1
Audio
10W Mono
Connections
HDMI in
2 x D-sub 15 pin in 1 x out
S-Video in
Cinch Video in
Cinch Stereo in
Mini Jack Audio in und out
RS232C Din 8 pin in
RJ45 in
Ceiling Mounting
Yes, is possible.
Power
330W
Size WxHxD
325 x 118 x 251 mm (12,8"x4,6"x9,9") 9,63 L/dm³
Operating Noise
33 / 28 dB in Eco Mode
Weight
3,40 kg / 7,5 lbs.
Keystone
-
Illumination
-
Frequenz
H-sync: 15-80 kHz V-sync: 50-85 Hz Range max.: 110 MHz
Eco Mode
