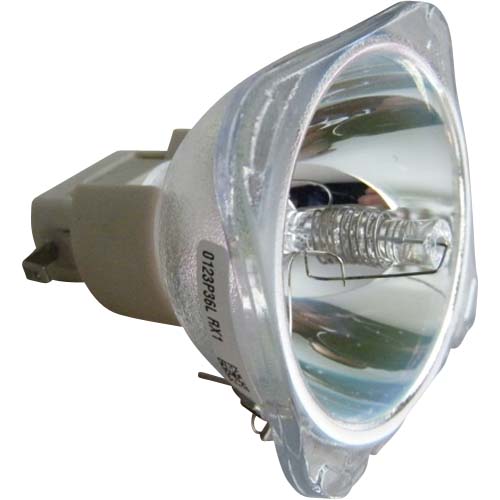

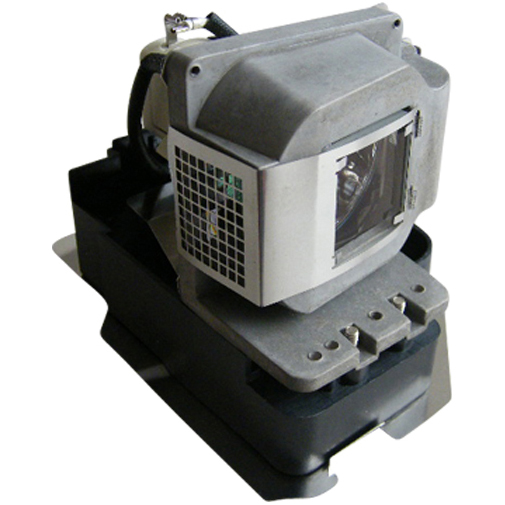

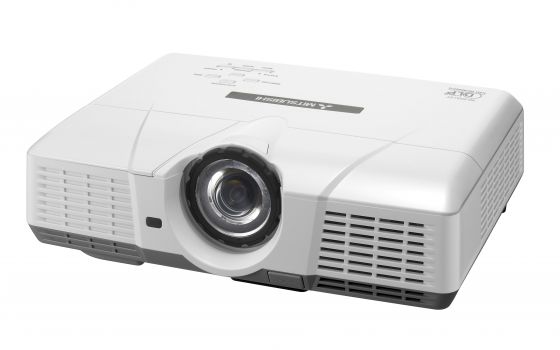

Categorized in the Short Distance segment, the WD500U ST projector from Mitsubishi projects with a WXGA 1280 x 800 resolution, alongside 2100 ANSI lumens and a contrast of 2500:1. According to Mitsubishi, the lamp has a durability of 2000 hours. A special feature is the short-throw lens, which allows the device to be positioned at a very short distance from the screen. According to the data sheet, an image width of 2 meters is achieved from a distance of just 112 cm. Regarding projection size, the value of 2100 ANSI lumens allows for an image width of up to 466 cm in darkened environments. In rooms with ambient light, the image width should be correspondingly reduced to a maximum of 311 cm. Since entering the market in 2008, production has been discontinued; the manufacturer no longer actively offers the model.
Display Type
1 x 0,65" 12 Grad LVDS DDP2230 DLP Chip WXGA 16/10 Ti Digital Light Processing Chip
Ansi-Lumen
Projector
2100
Screen
840 Lux (200 cm Screen width)
Contrast
2500:1 full on/off
2500:1 full on/off
Black Level
0,8400 min. Lumen
0,336 min. Lumen
Offset
58% 10 cm over screen top edge →
SCREEN
+Projector
Resolution
WXGA 1280 x 800
1.024.000 Pixel SXGA 1280 x 1024 compressed
Freeze
