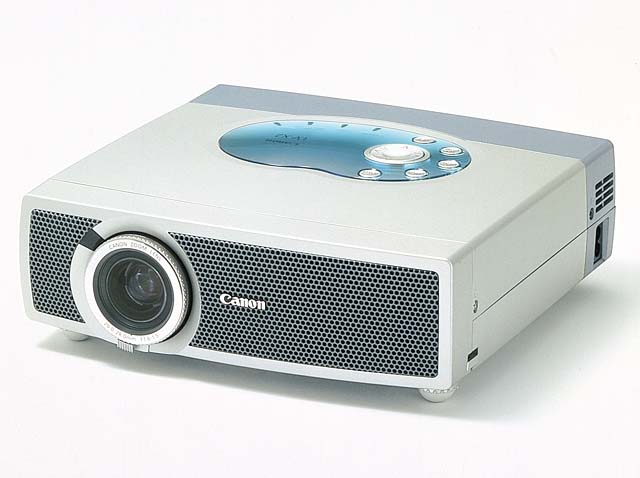

The standard portable LV X2 LCD projector from Canon has 1000 Ansi lumens, a contrast of 300:1 and an XGA 1024 x 768 resolution. An image width of up to 275 cm is possible. However, the image should be smaller in room light. We recommend max. 183 cm. This model is no longer offered by Canon.
|
| Display Type |
3 x 0,7" LCD TFT Panel mit MLA
XGA 4/3 Liquid Crystal Display with Micro Lense Array
|
| Ansi-Lumen |
Projector |
1000 |
Screen |
333 Lux (200 cm Screen width) |
| Contrast |
300:1 full on/off |
300:1 full on/off
|
| Black Level |
3,3333 min. Lumen |
1,121 min. Lumen |
| Offset |
45% show
|
| Resolution |
XGA 1024 x 768
786.432 Pixel
SXGA 1280 x 1024 compressed |
| Video Modes |
NTSC, PAL, SECAM, NTSC 4.43 |
| Application |
Standard-Portabel | External training and company presentations, as well as product presentations.
Small screen width, rooms with very little ambient light below 100 lumens. |
| Light Source |

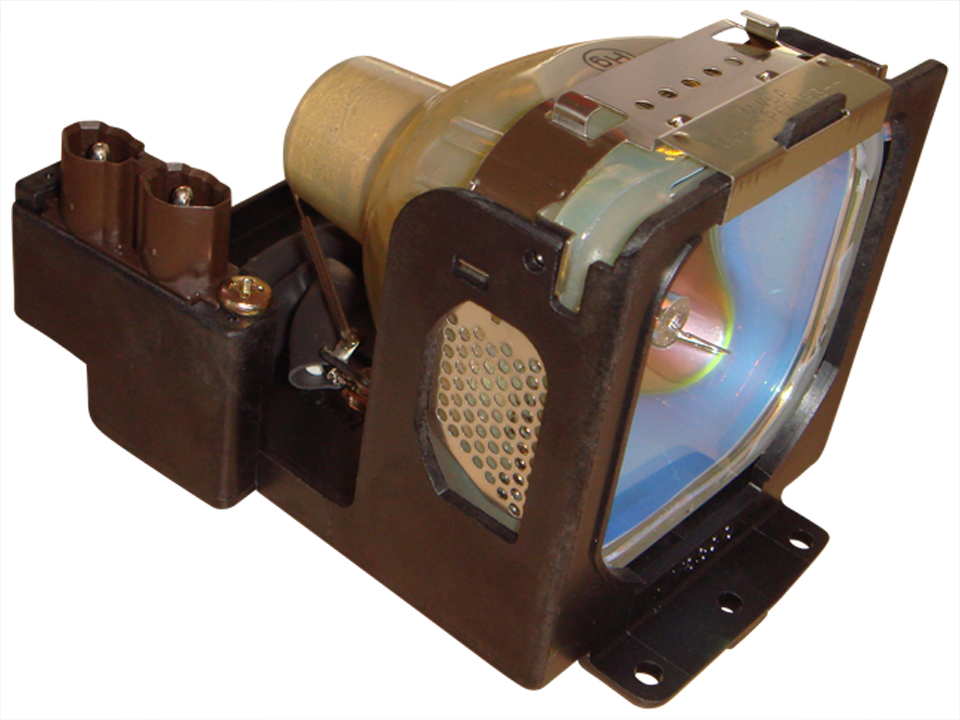

132W UHP Lamp
Article Nr.: LV-LP15
|
|
| Light Life |
2000 h. |
| Operating Costs |
|
|
286 - 396 cm
|
 |
|
Lux: |
333 Lux |
|
Room light max.: |
67 Lux |
|
Candela pro m²: |
106 cd/m² |
|
Foot-Lamberts: |
31 fL |
|
 |
| 68 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Manual |
| Zoom |
Manual 1,39 |
| Objective |
F=1,6-2,0 f=20,3-28,2 mm |
| Throw Ratio |
1,43-1,98:1 show |
| Audio |
1W Mono |
| Connections |
Mini D-sub15-pin
RCA x 3: components, three terminals are
used Composites, only Y terminal is used
Mini DIN 4-pin: S-Video
Stereo mini-jack x 2
Stereo mini-jack
Mini DIN 8-pin(serial), USB type B |
| Ceiling Mounting |
Yes, is possible. |
| Power |
250W |
| Size WxHxD |
260 x 76 x 244,5 mm (10,2"x3"x9,6") 4,82 L/dm³
|
| Operating Noise |
36dB |
|
| Weight |
2,80 kg / 6,17 lbs. |
| Keystone |
Vert.: +/-20°
|
| Illumination |
80% |
| Frequenz |
H-sync: 15-100 kHz
V-sync: 50-100 Hz
Range max.: 140 MHz |
| Foot-Lamberts |
31 fL
/ max. 275 cm screen width |
| Candela m² |
106 cd/m² |
| Features |
 Freeze
Eco Mode
Gamma correction
Remote control with laser pointer und mouse control
Optional Wi-Fi network compatible.
Optional LAN network compatible.
|
|
- |
In Comparison
The Canon LV X2 compared to others not current "Standard-Portabel" projectors. |
| Ansi-Lumen: |
|
10 |
Weight: |
|
87 |
| Contrast: |
|
1 |
dB: |
|
33 |
| Black level: |
|
88 |
Power cons.: |
|
98 |
| Picture Total Points: | 33 |
Projector Total Points: | 73 |
|
| Popularity Top 100 |
|
| Points: |
|
7 |
| Ranking: |
3197 (From: 7662) |
|
|
|
| In Test
|
-
|
|
|
| Status |
- Discontinued (EOL) // Last update of the data: 2023-08-04
|
