Brief Introduction
Beta 2.5 |
The Canon model LV 8227M is an LCD projector with WXGA 1280 x 800 resolution and a contrast of 500:1. The lamp life is specified by the manufacturer as 5500 hours, which converts to over 7.5 years at 2 hours per day. 508 cm image width, the projector will be able to illuminate well. However, if room light is available, the picture width should ideally not exceed 339 cm. It is also Full HD 1080P compatible. This model is no longer offered by Canon.
|
| Display Type |
3 x 0,59" LCD TFT Panel
WXGA 16/10 Liquid Crystal Display
|
| Ansi-Lumen |
Projector |
2500 |
Screen |
1000 Lux (200 cm Screen width) |
| Contrast |
500:1 full on/off |
500:1 full on/off
|
| Black Level |
5,0000 min. Lumen |
2,01 min. Lumen |
| Offset |
42,86% show
|
| Resolution |
WXGA 1280 x 800
1.024.000 Pixel
UXGA 1600 x 1200 compressed |
| Video Modes |
PAL, SECAM, NTSC, HDTV 720p, 1080i, 1080p EDTV 480p, 576p |
| Application |
Standard-Portabel | External training and company presentations, as well as product presentations.
Medium screen width or rooms with little light, max. 100 lumens. |
| Light Source |

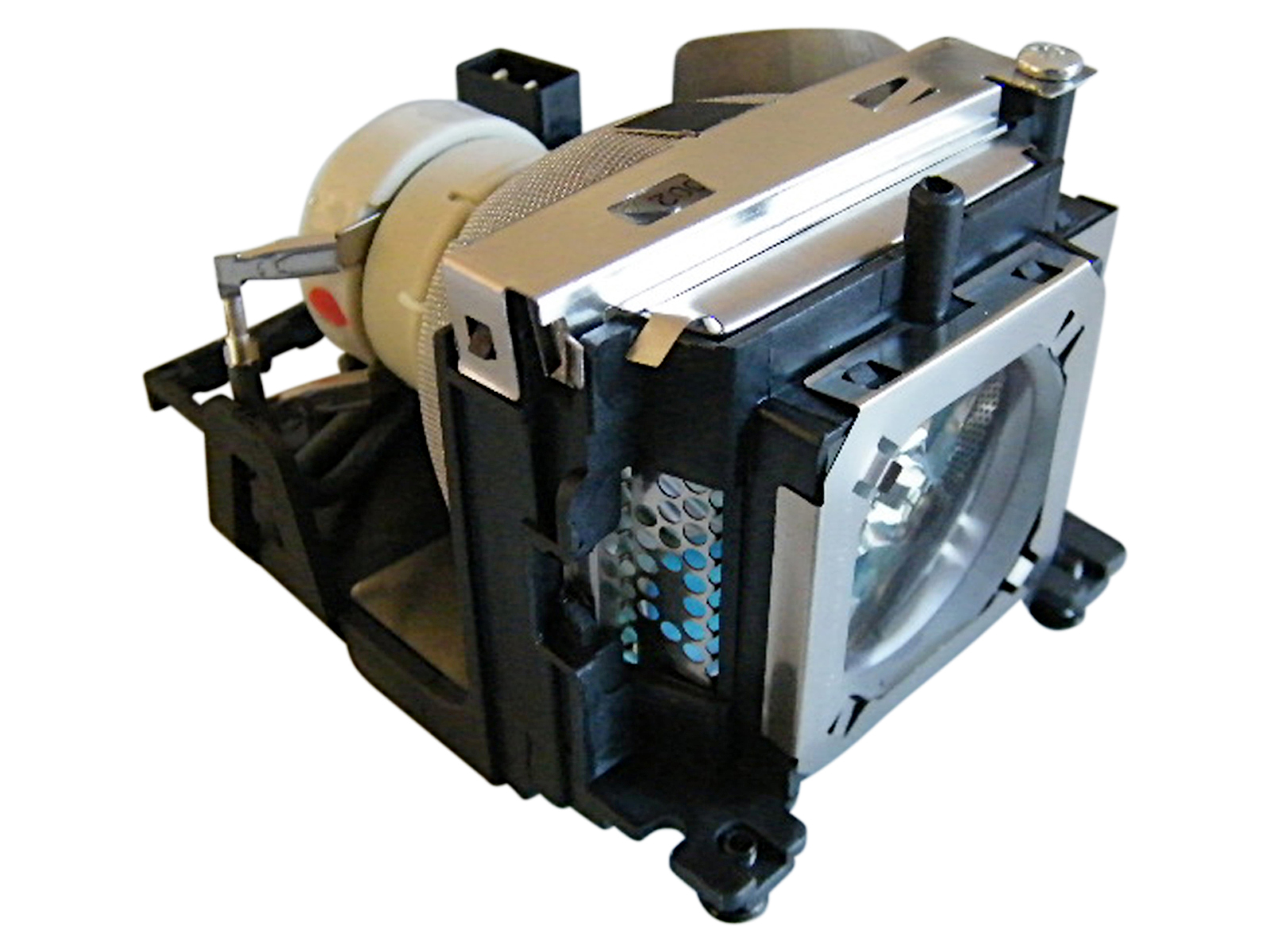

215W Lamp
Article Nr.: LV-LP35 / 5323B001AA
|
|
| Light Life |
5500 h. 6000 h. in eco Mode |
| Operating Costs |
-
|
|
290 - 348 cm
|
 |
|
Lux: |
1000 Lux |
|
Room light max.: |
200 Lux |
|
Candela pro m²: |
319 cd/m² |
|
Foot-Lamberts: |
93 fL |
|
 |
| 54 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Manual |
| Zoom |
Manual 1,19 |
| Objective |
F=2,00-2,15 f=18,38-22,06 mm |
| Throw Ratio |
1,45-1,74:1 show |
| Audio |
1W Mono |
| Connections |
HDMI 1.3 in
D-sub 15 pin in
Cinch Video in
Cinch Stereo in
RS232C Din 9 pin in |
| Ceiling Mounting |
Yes, is possible. |
| Power |
286 / 195W in Eco Mode |
| Size WxHxD |
334 x 101 x 247 mm (13,1"x4"x9,7") 8,33 L/dm³
|
| Operating Noise |
36,4 / 29 dB in Eco Mode |
|
| Weight |
2,90 kg / 6,39 lbs. |
| Keystone |
Vert.: +/-30° automatisch
|
| Illumination |
- |
| Frequenz |
H-sync: 15-100 kHz
V-sync: 50-100 Hz
Range max.: 140 MHz |
| Foot-Lamberts |
93 fL
/ max. 508 cm screen width |
| Candela m² |
319 cd/m² |
| Features |
 Full HD 1080P compatible
Direkt Power Off
Freeze
Blackboard Modus
User logo
Eco Mode
Automatic and manual vertical keystone correction
Kensington Slot
Gamma correction
Password protection
Control via web browser
Lan network compatible.
Digital Zoom 16x
|
|
Optional only
Google TV /
Fire TV /
Apple TV /
Roku TV /
Xiaomi TV Ads |
In Comparison
The Canon LV 8227M compared to others not current "Standard-Portabel" projectors. |
| Ansi-Lumen: |
|
29 |
Weight: |
|
86 |
| Contrast: |
|
1 |
dB: |
|
32 |
| Black level: |
|
81 |
Power cons.: |
|
97 |
| Picture Total Points: | 37 |
Projector Total Points: | 72 |
|
| Popularity Top 100 |
|
| Points: |
|
6 |
| Ranking: |
4295 (From: 7662) |
|
|
|
|
|
| Status |
2012 Discontinued (EOL) // Last update of the data: 2023-08-04
Created: 2014-10-06 14:03:00
|
| Data |
 Product Sheet english HC
User Manual english (7.6 MB)
|
Canon Website
