Brief Introduction
Beta 2.5 |
A brief introduction to the iVision 20sx+ XB / XL / XC / W / UW: The Digital Projection standard portable BrilliantColor DLP projector offers 2400 Ansi lumens, a contrast of 2500:1 and an SXGA+ 1400 x 1050 resolution. Including a lens shift function, which provides freedom during installation. An image width of up to 427 cm is possible as the projector has 2400 Ansi lumens. However, if room light is available, the image should be a maximum of 285 cm wide. Playing 1080P is also no problem for the projector. At just 30 decibels, the device is one of the quieter projectors. The model built in 2006 is no longer offered by Digital Projection.
|
| Display Type |
1 x 0,95" DC3 DLP Chip
SXGA 4/3 Ti Digital Light Processing Chip
|
| Ansi-Lumen |
Projector |
2400 (XC) / 2800 (XB) / 3300 (XL) |
Screen |
800 Lux (200 cm Screen width) |
| Contrast |
2500:1 full on/off |
2500:1 full on/off
|
| Black Level |
0,9600 min. Lumen |
0,32 min. Lumen |
| Offset |
0,0% show
|
| Resolution |
SXGA+ 1400 x 1050
1.470.000 Pixel
HDTV 1920 x 1080 compressed |
| Video Modes |
PAL, SECAM, NTSC, HDTV 720p, 1080i, 1080p EDTV 480p, 576p |
| Application |
Standard-Portabel | External training and company presentations, as well as product presentations.
Medium screen width or rooms with little light, max. 100 lumens. |
| Light Source |

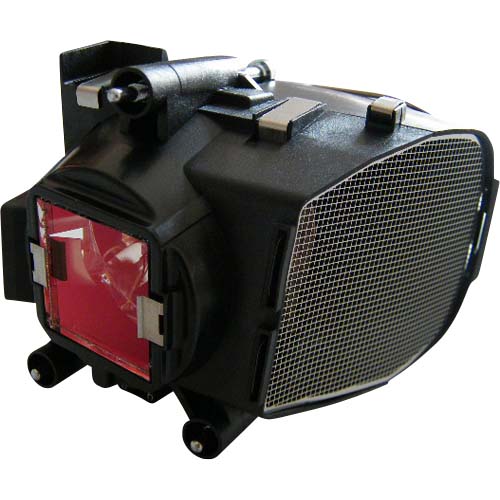

220W UHP Lamp
Article Nr.: 105-495 / 109-688
|
|
| Light Life |
2000 h. 4000 h. in Eco Mode |
| Operating Costs |
-
|
|
200 cm (no Zoom)
|
 |
|
Lux: |
800 Lux |
|
Room light max.: |
160 Lux |
|
Candela pro m²: |
254 cd/m² |
|
Foot-Lamberts: |
74 fL |
|
 |
| 0 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Manual |
| Zoom |
No Zoom |
| Objective |
107-718 / iVision 20sx+ W (XB) |
| Throw Ratio |
1,0:1 |
| Audio |
1W Mono |
| Connections |
DVI-D mit HDCP
D-sub 15 pin in
YUV in
Cinch Video in
S-Video in
USB
RS232C
RJ45 |
| Ceiling Mounting |
Yes, is possible. |
| Power |
350W |
| Size WxHxD |
278 x 94 x 234 mm (10,9"x3,7"x9,2") 6,11 L/dm³
|
| Operating Noise |
30dB |
|
| Weight |
2,55 kg / 5,62 lbs. |
| Keystone |
- |
| Illumination |
- |
| Frequenz |
H-sync: 120 kHz
V-sync: 50-110 Hz
Range max.: 160 MHz |
| Foot-Lamberts |
74 fL
/ max. 427 cm screen width |
| Candela m² |
254 cd/m² |
| Features |
 Full HD 1080P compatible
Eco Mode
Gamma correction
BrilliantColor™
Remote control with laser pointer und mouse control
Lan network compatible.
Faroudja DCDi
4 segment colour wheel
Standard black, optional grey casing.
|
|
- |
In Comparison
The Digital Projection iVision 20sx+ XB / XL / XC / W / UW compared to others not current "Standard-Portabel" projectors. |
| Ansi-Lumen: |
|
28 |
Weight: |
|
88 |
| Contrast: |
|
1 |
dB: |
|
49 |
| Black level: |
|
96 |
Power cons.: |
|
96 |
| Picture Total Points: | 42 |
Projector Total Points: | 78 |
|
| Popularity Top 100 |
|
| Points: |
|
9 |
| Ranking: |
2491 (From: 7662) |
|
|
|
|
|
|
|
| Status |
2006 Discontinued (EOL) // Last update of the data: 2023-08-04
|
| Data |
 Product Sheet english alt
Product Sheet english alt
Product Sheet english HC
Product Sheet english neu
Press release english
User Manual english (8.79 MB)
User Manual english (11.13 MB)
|
Digital Projection Website
