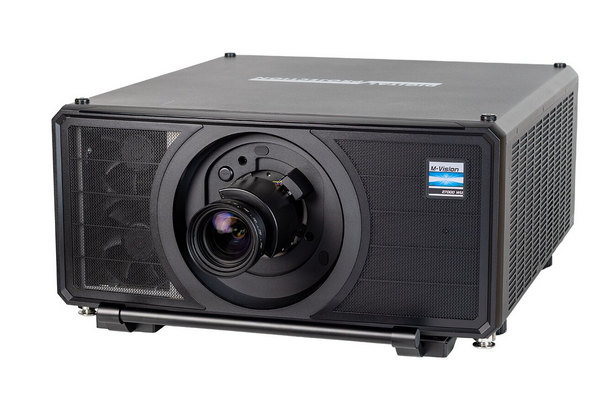

The Digital Projection M-Vision 24000 WU is a 3D-LED-DLP projector offering 21600 ANSI lumens, a contrast of 10000:1 and a resolution of WUXGA 1920 x 1200. This is a laser projector with a light source designed to last for 20000 hours, covering an estimated 13.7 years based on a 4-hour daily runtime. The specifications identify the device as a model with an interchangeable lens option. Matching optional optics allow for exact adaptation to the required image size and projection distance, which can be calculated directly with the Distance Calculator. A look at the light output reveals: The 21600 ANSI lumens are sufficient to illuminate an image width of up to 1493 cm in darkened rooms. If room light is present, we recommend not exceeding a maximum width of 995 cm. Should very large projection surfaces be required, the integrated edge-blending software offers the possibility to seamlessly combine images from multiple projectors without visible seams. In terms of video signals, the device processes resolutions up to Full HD 1080P as well as 3D. An additional 360° projection capability allows the device to be oriented at almost any angle. As an additional feature, an integrated media player enables the direct playback of files without an external source device. Regarding professional networking, the device offers a classic RJ45 LAN port for control alongside HDBaseT for the lossless transmission of picture and sound over long distances.
Display Type
1 x 0,96" DC3 DMD DLP Chip WUXGA 16/9 Ti Digital Light Processing Chip
Ansi-Lumen
Projector
21600
Screen
9600 Lux (200 cm Screen width)
Contrast
10000:1 full on/off
10000:1 full on/off
Black Level
2,1600 min. Lumen
0,96 min. Lumen
Offset
-
Resolution
WUXGA 1920 x 1200
2.304.000 Pixel
Video Modes
Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p, 3D, EDTV 480p, 576p Media player formats: HDTV Formats Supported EDTV (480p, 576p,) HDTV (720p, 1080i, 1080p, UHD, DCI 4K), Display Support for 4K-UHD 3840
x 2160 60HZ and up to 4096 x2160 60Hz.
Computer-Kompatibilität VGA, SVGA, XGA, SXGA, SXGA+, WXGA, UXGA, WUXGA, Support for WQXGA
Bandbreite 18Gb/s (600MHz clock rate) on HDMI
Event | Very large screen width and rooms with plenty of light and shaded daylight.
Light Source
MCL Blue Laser Light Source and MCL Red Laser
Light Life
20000 h.
Operating Costs
0,00 € Laser
The screen width should be larger. It's uncomfortably bright in the dark. too bright
Lux:
9600 Lux
Contrast:
10000:1
Candela pro m²:
3056 cd/m²
Foot-Lamberts:
892 fL
•
Focus
Powered
Zoom
Powered
Objective
Throw Ratio
optional
Audio
-
Connections
2x HDMI 2.0 in
2x DisplayPort 1.2
12G-SDI In BNC
12G-SDI Out (loopthrough) BNC
3D Sync In BNC
3D Sync Out BNC
3D Sync IR BNC
D-sub 15pin in und out
Mini Jack Audio in und out
USB-A in
RS232C Din 9 pin in
RJ45 in
HDBaseT
12V Trigger
Ceiling Mounting
Yes, is possible.
Power
1450W
Size WxHxD
768,4 x 302,75 x 598,8 mm (30,2"x11,9"x23,5") 138,7 L/dm³
Real Full HD 3D Full HD 1080P compatible Integrated Mediaplayer Blank (Black screen button) Eco Mode Automatic and manual vertical keystone correction Kensington Slot High Dynamic Range (HDR) Warping 360° installable 24/7 continuous operation capable Edge Blending Picture-in-Picture Password protection PJLink™ Control via web browser Lan network compatible. Crestron®-Software compatible. DICOM LAN Control-AMX SSDP Intelligent Lens Memory with 10 user pre-sets Colour Temperature User selectable (3200K to 9300k) Aspect Ratio selectable (4:3 to Theater Scope) Colour Boost SmartStack System
Real Full HD 3D
Digital Projection Website
Product Sheet english HC
