Brief Introduction
Beta 2.5 |

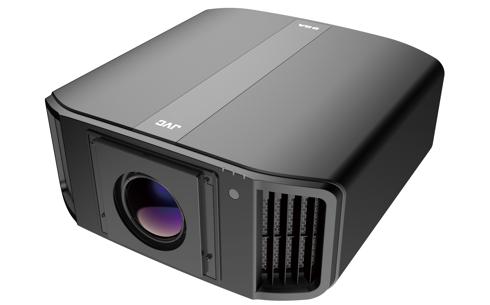

A brief introduction to the JVC DLA-VS3000. The stationary DILA laser projector has a UHD (4K+2K) 4096 x 2160 resolution and a contrast of 15000:1. The service life is 40000 hours due to the laser, which is over 27.4 years with a daily viewing time of 4 hours. With the lens shift function, the projector can be positioned very freely. An image width of up to 352 cm is possible. However, the image should be smaller in room light. We recommend max. 235 cm. Video signals 1080P and 4K are also no problem for the projector.
|
| Display Type |
3 x0,69" Dila Chip
UHD 19/10 Direct-Drive Image Light Amplification (D-ILA)
|
| Ansi-Lumen |
Projector |
1600 |
Screen |
759 Lux (200 cm Screen width) |
| Contrast |
15000:1 full on/off |
15000:1 full on/off
|
| Black Level |
0,1067 min. Lumen |
0,051 min. Lumen |
| Lens shift |
Vert.: +/-100% Hori.: +/-43%
|
| Resolution |
UHD (4K+2K) 4096 x 2160
8.847.360 Pixel |
| Video Modes |
Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p, 4K UHD, EDTV 480p, 576p |
| Application |
Stationary | Permanent installation in the training room and meeting room as well as the conference room.
Small screen width, rooms with very little ambient light below 100 lumens. |
| Light Source |
Laser / Phosphor
|
|
| Light Life |
40000 h. |
| Operating Costs |
0,00 € Laser
|
|
|
 |
|
Lux: |
759 Lux |
|
Room light max.: |
152 Lux |
|
Candela pro m²: |
240 cd/m² |
|
Foot-Lamberts: |
70 fL |
|
 |
| 100 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Powered |
| Zoom |
Powered |
| Objective |
|
| Throw Ratio |
optional |
| Audio |
Nein |
| Connections |
2 x DisplayPort 1.2a
RJ45 in
USB Typ A
RS232C |
| Ceiling Mounting |
Yes, is possible. |
| Power |
440W |
| Size WxHxD |
500 x 215 x 545 mm (19,7"x8,5"x21,5") 58,59 L/dm³
|
| Operating Noise |
- |
Shift: 105 cm
|
Shift: 86 cm
|
|
Shift: 86 cm
|
| |
|
|
| Weight |
22,50 kg / 49,6 lbs. |
| Keystone |
- |
| Illumination |
- |
| Frequenz |
- |
| Foot-Lamberts |
70 fL
/ max. 352 cm screen width |
| Candela m² |
240 cd/m² |
| Features |
 Full HD 1080P compatible
Lens shift Funktion
Lan network compatible.
|
|
- |
In Comparison
The JVC DLA-VS3000 compared to others current "Stationary" projectors. |
| Ansi-Lumen: |
|
14 |
Weight: |
|
81 |
| Contrast: |
|
1 |
dB: |
|
0 |
| Black level: |
|
99 |
Power cons.: |
|
83 |
| Picture Total Points: | 38 |
Projector Total Points: | 0 |
|
| Popularity Top 100 |
|
| Points: |
|
20 |
| Ranking: |
101 (From: 231) |
|
|
|
|
|
|
Optional Lenses |
|
| Name | Ratio | Distance | Shift V | Shift H | Zoom |
| GL-MZ4014SZ | 1.27-2.54:1 | 254-508 m |
+/-100% |
+/-40% |
Powered |
| GL-MZ4009SZ | 0.94-1.3:1 | 188-260 m |
+/-50% |
+/-18% |
Powered |
| VSL-2010 | 0.99:1 | 198 m |
0.00% Fix |
+/-18% |
No Zoom |
| VSL-2012 | 1.18:1 | 236 m |
0.00% Fix |
+/-18% |
No Zoom |
|
| Status |
2018 Current model // Last update of the data: 2025-03-03
