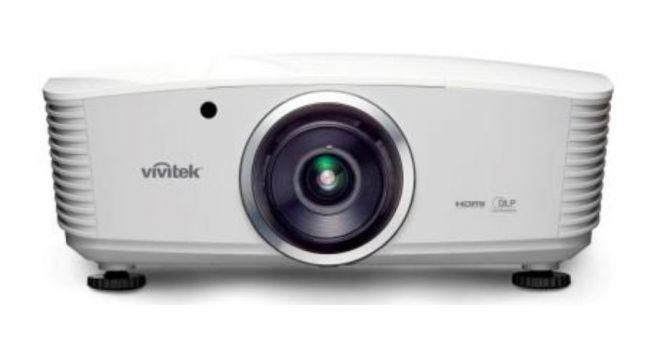

The technical data of the Vivitek DX563ZAB includes 6500 ANSI lumens, a contrast of 2000:1 as well as a XGA 1024 x 768 display. According to Vivitek, the included lamp lasts up to 1500 hours. Thanks to the combination of optical lens shift and digital keystone correction, the projected image's position can be adjusted very flexibly. For maximum setup flexibility, the model supports optional interchangeable lenses, meaning the optics can be precisely matched to individual on-site requirements. Suitable distances can be determined using the Distance Calculator. A look at the light output reveals: The 6500 ANSI lumens are sufficient to illuminate an image width of up to 702 cm in darkened rooms. If room light is present, we recommend not exceeding a maximum width of 468 cm. In terms of video signals, the device processes resolutions up to Full HD 1080P. For integration into professional environments, an RJ45 connection is available for network control and remote maintenance. This model dates back to 2018 and is no longer part of Vivitek's current product range.
Display Type
1 x 0,7" DLP Chip XGA 4/3 Ti Digital Light Processing Chip
Stationary | Permanent installation in the training room and meeting room as well as the conference room. Very large screen width and rooms with plenty of light and shaded daylight.
Light Source
430 / 350W im Eco Mode Lamp
Light Life
1500 h. 2000 h. in Eco Mode
Operating Costs
-
Calculated brightness quality The screen width may also be larger. Perfect
2 x HDMI in
DVI in
D-sub 15pin 2x in und out
Component 5BNC
Cinch Video in
Cinch Stereo in
S-Video in
3D Sync Out
12V Trigger out
Mini Jack Audio 2x in und out
USB in
RS232C Din 9 pin in
RJ45 in
Full HD 1080P compatible
