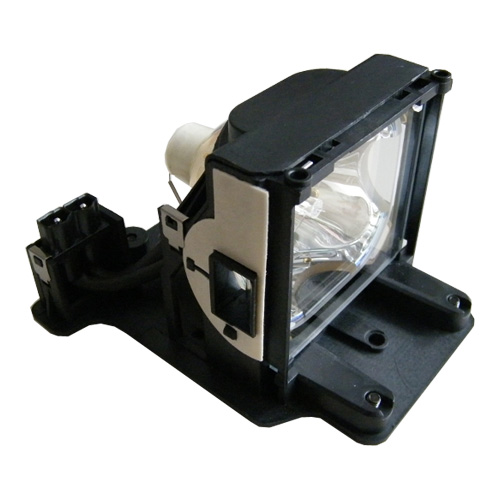

Based on LCD technology, the ASK Proxima C420 device delivers 3000 ANSI lumens, a resolution of XGA 1024 x 768 and a contrast of 800:1 as a projector. The manufacturer lists the lamp life at 1500 hours. To ensure a rectangular image even with asymmetrical placement, the projector includes digital keystone correction for both the horizontal and vertical axes. For maximum setup flexibility, the model supports optional interchangeable lenses, meaning the optics can be precisely matched to individual on-site requirements. Suitable distances can be determined using the Projection Calculator. Regarding projection size, the value of 3000 ANSI lumens allows for an image width of up to 477 cm in darkened environments. In rooms with ambient light, the image width should be correspondingly reduced to a maximum of 318 cm. In terms of video signals, the device processes resolutions up to Full HD 1080P. For convenient remote monitoring and administration, the projector is equipped with a classic RJ45 network socket. This model dates back to 2003 and is no longer part of ASK Proxima's current product range.
Display Type
3 x 0,99" LCD TFT Panel mit MLA XGA 4/3 Liquid Crystal Display with Micro Lense Array
Ansi-Lumen
Projector
3000 / 2500 im Eco Mode
Screen
1000 Lux (200 cm Screen width)
Contrast
800:1 full on/off
800:1 full on/off
Black Level
3,7500 min. Lumen
1,255 min. Lumen
Offset
50% Exactly on screen top edge →
SCREEN
+Projector
Resolution
XGA 1024 x 768
786.432 Pixel
SXGA 1280 x 1024 compressed
Standard-Portabel | External training and company presentations, as well as product presentations. Medium screen width or rooms with a little more ambient light, max. 200 lumens.

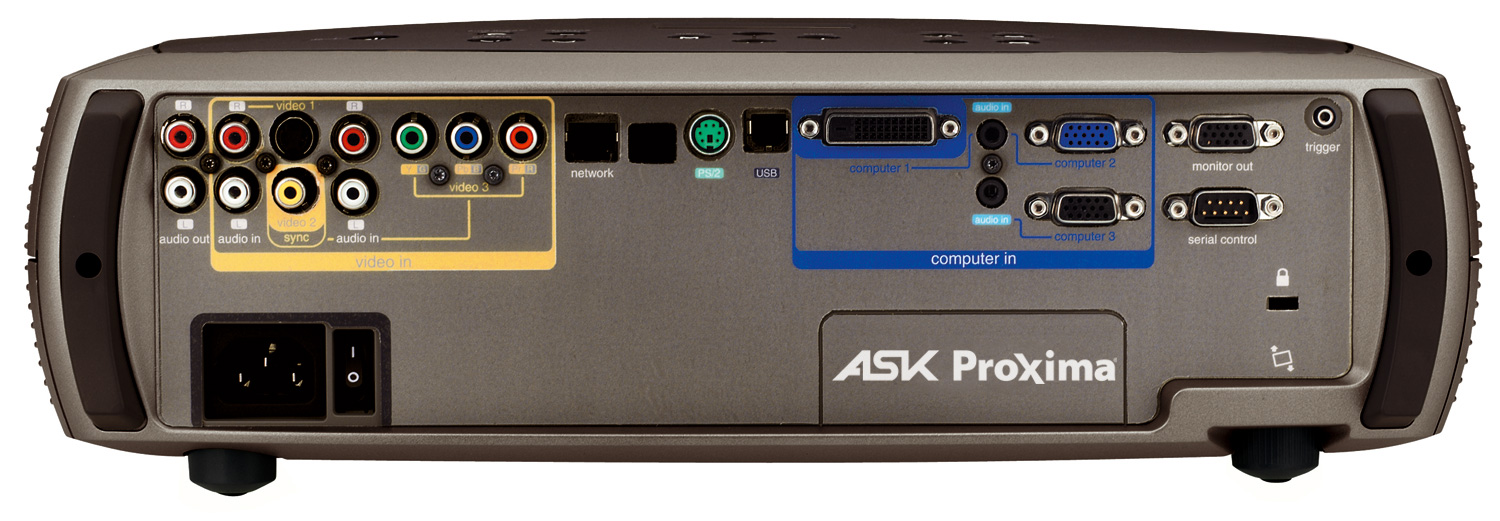

Full HD 1080P compatible Freeze Blank (Black screen button) User logo Eco Mode Kensington Slot Picture-in-Picture Remote control with laser pointer und mouse control Optional Wi-Fi network compatible. Lan network compatible.
Full HD 1080P compatible
Product Sheet english
