Brief Introduction
Beta 2.5 |

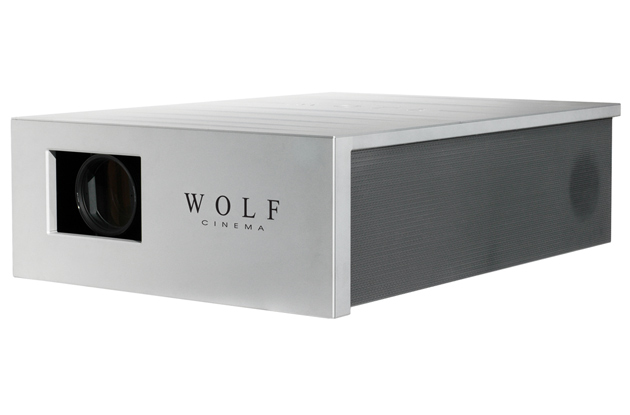

A brief introduction to the Wolf Cinema DCX 500i. The DLP projector has an HDTV 1920 x 1080 resolution and a contrast of 50000:1. Includes a lens shift function, which provides freedom during installation. 2500 Ansi lumens ensure that a picture width of 508 cm is also possible. However, if room light is available, the picture should be a maximum of 339 cm wide. Even 1080P video signals are no problem for the projector. It was launched in 2009 and is no longer offered by the manufacturer Wolf Cinema.
|
| Display Type |
3 x DLP Chip
HDTV 16/9 Ti Digital Light Processing Chip
|
| Ansi-Lumen |
Projector |
2500 |
Screen |
1111 Lux (200 cm Screen width) |
| Contrast |
50000:1 full on/off |
50000:1 full on/off
|
| Black Level |
0,0500 min. Lumen |
0,022 min. Lumen |
| Lens shift |
Vert.: +/-59,5% Hori.: +/-21%
|
| Resolution |
HDTV 1920 x 1080
2.073.600 Pixel |
| Video Modes |
PAL, SECAM, NTSC, HDTV 720p, 1080i, 1080p EDTV 480p, 576p |
| Disc Recognition |
DVD | HD Blu-ray | 3D Blu-ray | 4K UHD Blu-ray |
| Application |
High-End Homecinema | Medium screen width or rooms with little light, max. 100 lumens. |
| Light Source |
500W Lamp
|
|
| Light Life |
2500 h. 4000 in Eco Mode |
| Operating Costs |
-
|
|
|
 |
|
Lux: |
1111 Lux |
|
Room light max.: |
222 Lux |
|
Candela pro m²: |
353 cd/m² |
|
Foot-Lamberts: |
103 fL |
|
 |
| 67 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Powered |
| Zoom |
Powered |
| Objective |
|
| Throw Ratio |
optional |
| Audio |
- |
| Connections |
6 x HDMI 1.3 in 1 x out
2 x YUV in
1 x S-Video in
 |
| Ceiling Mounting |
Yes, is possible. |
| Power |
900W |
| Size WxHxD |
759,5 x 307,3 x 1056,6 mm (29,9"x12,1"x41,6") 246,06 L/dm³
|
| Operating Noise |
- |
Shift: 66 cm
|
Shift: 42 cm
|
|
Shift: 42 cm
|
| |
|
|
| Weight |
- |
| Keystone |
- |
| Illumination |
- |
| Frequenz |
- |
| Foot-Lamberts |
103 fL
/ max. 508 cm screen width |
| Candela m² |
353 cd/m² |
| Features |
 Full HD 1080P compatible
Lens shift Funktion
Freeze
Eco Mode
Gamma correction
Picture-in-Picture
Password protection
Remote control with laser pointer
|
|
Optional only
Google TV /
Fire TV /
Apple TV /
Roku TV /
Xiaomi TV Ads |
In Comparison
The Wolf Cinema DCX 500i compared to others not current "High-End Homecinema" projectors. |
| Ansi-Lumen: |
|
21 |
Weight: |
|
0 |
| Contrast: |
|
3 |
dB: |
|
0 |
| Black level: |
|
99 |
Power cons.: |
|
59 |
| Picture Total Points: | 41 |
Projector Total Points: | 0 |
|
| Popularity Top 100 |
|
| Points: |
|
37 |
| Ranking: |
49 (From: 499) |
|
|
|
|
Optional Lenses |
|
| Name | Ratio | Distance | Shift V | Shift H | Zoom |
| 4.1-6.9:1 | 4.1-6.9:1 | 820-1380 m |
+/-59.5% |
+/-21% |
Powered |
| 2.6-4.1:1 | 2.6-4.1:1 | 520-820 m |
+/-59.5% |
+/-21% |
Powered |
| 1.8-2.6:1 | 1.8-2.6:1 | 360-520 m |
+/-59.5% |
+/-21% |
Powered |
| 1.4-1.8:1 | 1.4-1.8:1 | 280-360 m |
+/-59.5% |
+/-21% |
Powered |
| 0.67:1 | 0.67:1 | 134 m |
+/-10% |
+/-10% |
No Zoom |
| 1.1:1 | 1.1:1 | 220 m |
+/-10% |
+/-10% |
No Zoom |
|
| Status |
2009 Discontinued (EOL) // Last update of the data: 2023-08-04
|
