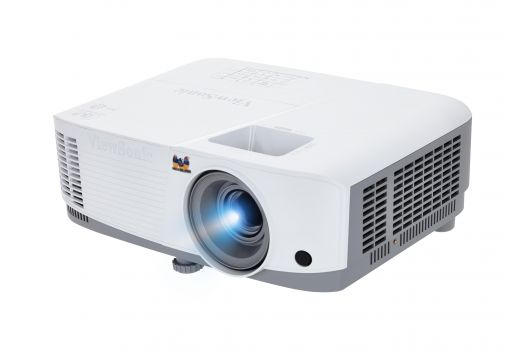

The PA503X model is a 3D-LED-DLP projector from Viewsonic, intended for Standard-Portabel applications, offering 3500 ANSI lumens, a contrast of 22000:1 at XGA 1024 x 768. The runtime of the lamp in this model is estimated at 4500 hours before a replacement is necessary. A daily usage of 2 hours makes an operational lifespan of 6.2 years possible. Regarding projection size, the value of 3500 ANSI lumens allows for an image width of up to 515 cm in darkened environments. In rooms with ambient light, the image width should be correspondingly reduced to a maximum of 343 cm. For media input, video signals up to 1080P as well as 3D are supported.
Display Type
1 x 0,55" DLP XGA 4/3 Ti Digital Light Processing Chip
Ansi-Lumen
Projector
3500
Screen
1167 Lux (200 cm Screen width)
Contrast
22000:1 full on/off
22000:1 full on/off
Black Level
0,1591 min. Lumen
0,053 min. Lumen
Offset
-
Resolution
XGA 1024 x 768
786.432 Pixel WUXGA 1920 x 1200 compressed
Standard-Portabel | External training and company presentations, as well as product presentations. Medium screen width or rooms with a little more ambient light, max. 200 lumens.
Real Full HD 3D
