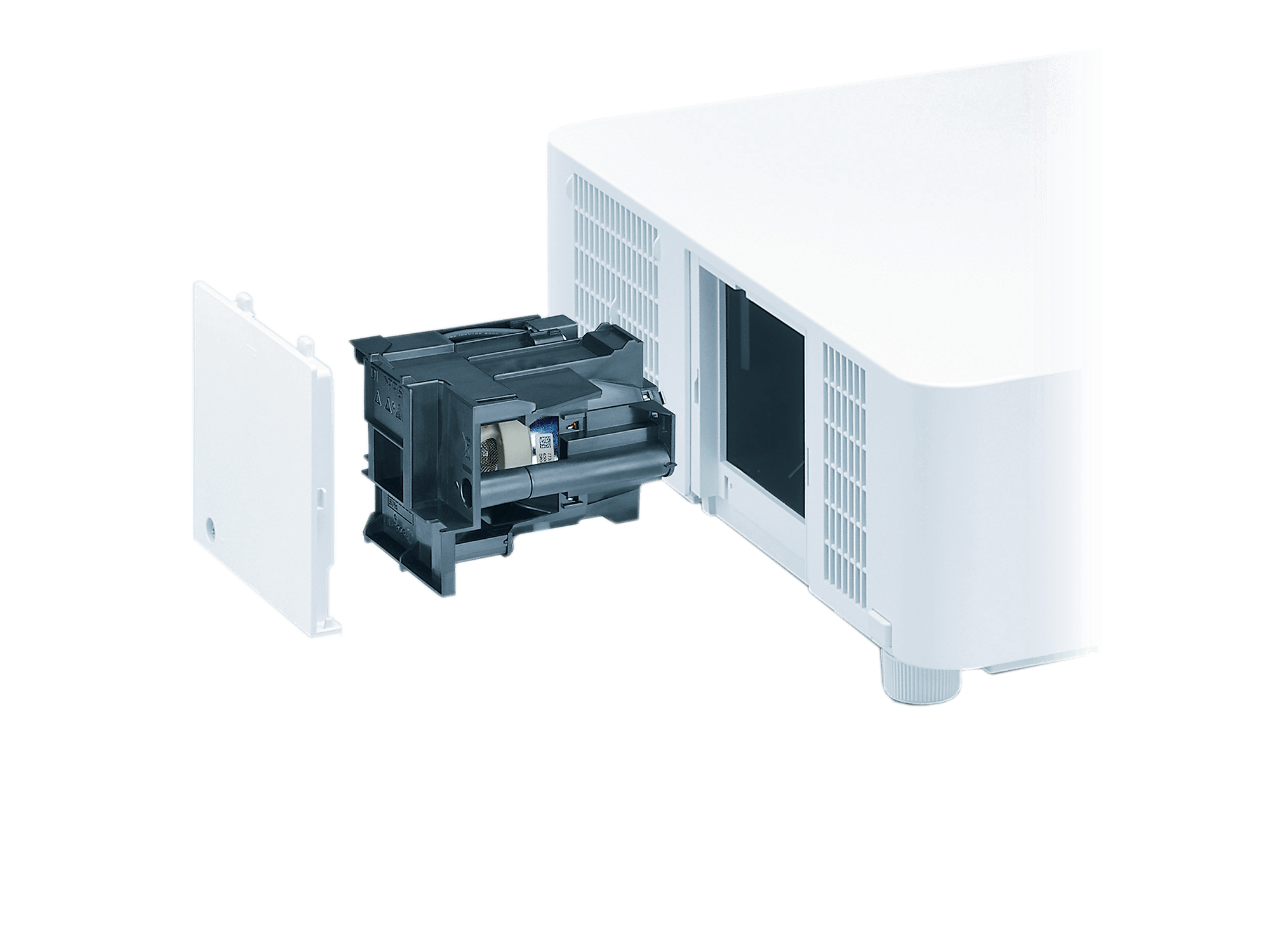

The equipment of the Maxell MC-WU8461 projector includes 6000 ANSI lumens, a contrast of 5000:1 with a WUXGA 1920 x 1200 display. The runtime of the lamp in this model is estimated at 2000 hours before a replacement is necessary. The image geometry can be adjusted via the built-in keystone correction so that a clean, rectangular display is achieved even with non-ideal placement. Thanks to the interchangeable lens system, the device can be equipped with optional lenses to react flexibly to different room sizes. Exact values for specific rooms are provided by the Lens Calculator. Looking at practical performance, up to 787 cm can be illuminated with 6000 ANSI lumens in dark environments. Once daylight is in the room, the image should ideally be no wider than 525 cm. Should very large projection surfaces be required, the integrated edge-blending software offers the possibility to seamlessly combine images from multiple projectors without visible seams. For media input, video signals up to 1080P as well as 3D are supported. Regarding professional networking, the device offers a classic RJ45 LAN port for control alongside HDBaseT for the lossless transmission of picture and sound over long distances. The projector was released in 2019 and is officially no longer distributed by Maxell.
Display Type
3 x LCD TFT Panel WUXGA 16/9 Liquid Crystal Display
Stationary | Permanent installation in the training room and meeting room as well as the conference room. Very large screen width and rooms with plenty of light and shaded daylight.
Calculated brightness quality The screen width may also be larger. Perfect
300 - 600 cm
Lux:
2667 Lux
Contrast:
5000:1
Candela pro m²:
850 cd/m²
Foot-Lamberts:
248 fL
•
Focus
Powered
Zoom
Powered 2
Objective
Throw Ratio
optional
Audio
2 x 8W

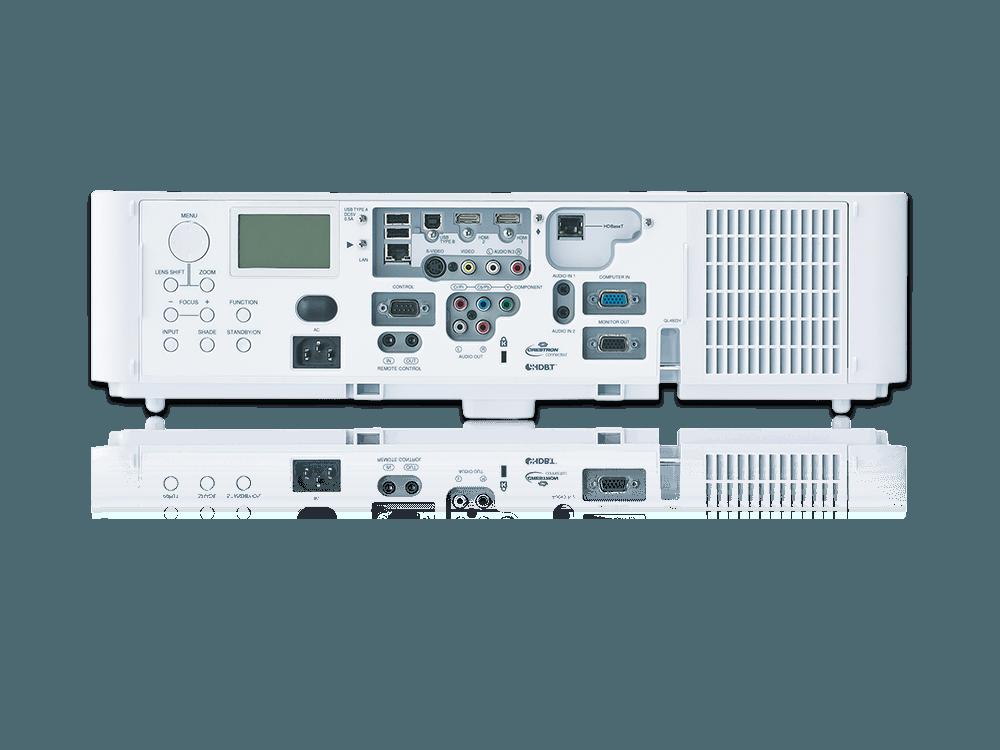

Connections
2 x HDMI in
D-sub 15pin in und out
Cinch Video in
Cinch Stereo in
S-Video
Mini Jack Audio 2x in
USB in
RS232C Din 9 pin in
RJ45 in
Remote Control in und out
HdBaseT
Ceiling Mounting
Yes, is possible.
Power
550W
Size WxHxD
497,8 x 134,6 x 396,2 mm (19,6"x5,3"x15,6") 26,37 L/dm³
Real Full HD 3D Full HD 1080P compatible Eco Mode Kensington Slot Warping Edge Blending Picture-in-Picture Optional Wi-Fi network compatible. Lan network compatible. Crestron®-Software compatible. Dicom simulation mode AMX
Real Full HD 3D
Product Sheet
