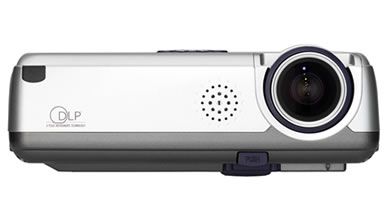

The VX30 is a DLP projector by Vision, whose specifications list 2300 ANSI lumens, a contrast of 1500:1 and a XGA 1024 x 768 resolution. The manufacturer lists the lamp life at 2000 hours. To compensate for angled projection positions, the model features 2D keystone correction, which digitally corrects trapezoidal distortion. Regarding projection size, the value of 2300 ANSI lumens allows for an image width of up to 418 cm in darkened environments. In rooms with ambient light, the image width should be correspondingly reduced to a maximum of 279 cm. This device is no longer manufactured and has been removed from Vision's current lineup.
Display Type
1 x 0,7" DDR DLP Chip XGA 4/3 Ti Digital Light Processing Chip
Ansi-Lumen
Projector
2300
Screen
767 Lux (200 cm Screen width)
Contrast
1500:1 full on/off
1500:1 full on/off
Black Level
1,5333 min. Lumen
0,512 min. Lumen
Offset
-
Resolution
XGA 1024 x 768
786.432 Pixel
SXGA 1280 x 1024 compressed
Video Modes
NTSC, PAL, SECAM
Application
Standard-Portabel | External training and company presentations, as well as product presentations. Medium screen width or rooms with little light, max. 100 lumens.
Picture-in-Picture
Product Sheet english
