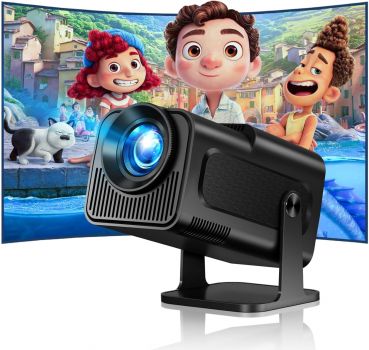

A projector from Quilted Northern is the HY320 Mini, whose LED-LCD model delivers 200 ANSI lumens, a resolution of HDTV 1920 x 1080 and a contrast of 2000:1. The built-in LED technology features a light source lifespan of 30000 hours, which translates to 20.5 years with 4 hours of daily use. To compensate for angled projection positions, the model features 2D keystone correction, which digitally corrects trapezoidal distortion. Regarding projection size, the value of 200 ANSI lumens allows for an image width of up to 144 cm in darkened environments. In rooms with ambient light, the image width should be correspondingly reduced to a maximum of 96 cm. For media input, video signals up to 1080P and 4K are supported. Also on board is a local media player that allows reading and playing content directly from storage media. Furthermore, the model is Bluetooth-enabled, allowing audio signals to be sent wirelessly to external speakers. Since the projector supports Miracast and Airplay screen mirroring, video signals can also be streamed wirelessly from the end device. In the specifications, the operating noise is listed at a mere 25 decibels, indicating very quiet cooling.
Display Type
1 x LCD TFT Panel HDTV 16/9 Liquid Crystal Display
Ansi-Lumen
Projector
200
Screen
89 Lux (200 cm Screen width)
Contrast
2000:1
2000:1
Black Level
0,1000 min. Lumen
0,045 min. Lumen
Offset
-
Resolution
HDTV 1920 x 1080
2.073.600 Pixel UHD (4K2K) 3840 x 2160 compressed
Video Modes
Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p, 4K UHD (komprimiert), EDTV 480p, 576p Media player formats: Mediaplayer
Application
Game-Portabel | Very portable, small-screen projections. Very narrow picture width and rooms with very little light.
Light Source
LED
Light Life
30000 h.
Operating Costs
0,00 € LED
The projection is too dark. The screen width should be reduced.
Full HD 1080P compatible
