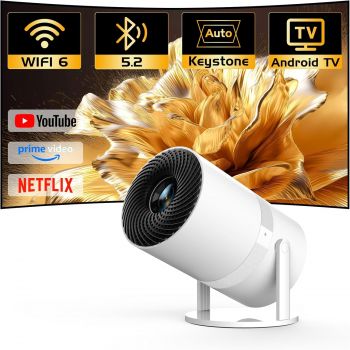

Known as the AK69, this LED-LCD projector by PANSEBA features basic specs of 300 ANSI lumens, a contrast of 10000:1 at a HDTV 1280 x 720 resolution. An LED lifespan of 30000 hours is noted in the data sheet for this model, which translates to 20.5 years with 4 hours of daily use. To compensate for angled projection positions, the model features 2D keystone correction, which digitally corrects trapezoidal distortion. To reduce dependence on stationary power sources, the model is equipped with a built-in battery for autonomous operation. A look at the light output reveals: The 300 ANSI lumens are sufficient to illuminate an image width of up to 176 cm in darkened rooms. If room light is present, we recommend not exceeding a maximum width of 117 cm. For media input, video signals up to 1080P are supported. Also on board is a local media player that allows reading and playing content directly from storage media. Furthermore, the model is Bluetooth-enabled, allowing audio signals to be sent wirelessly to external speakers. Thanks to support for Miracast, Airplay and Chromecast, screen content can also be cast wirelessly from a smartphone, tablet, or PC to the screen. In the specifications, the operating noise is listed at a mere 25 decibels, indicating very quiet cooling.
Display Type
1 x LCD TFT Panel HDTV 16/9 Liquid Crystal Display
Ansi-Lumen
Projector
300
Screen
133 Lux (200 cm Screen width)
Contrast
10000:1
10000:1
Black Level
0,0300 min. Lumen
0,013 min. Lumen
Offset
-
Resolution
HDTV 1280 x 720
921.600 Pixel HDTV 1920 x 1080 compressed
Video Modes
Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p, EDTV 480p, 576p Media player formats: Mediaplayer
Application
Game-Portabel | Battery projector | Very portable, small-screen projections. Very narrow picture width and rooms with very little light.
Light Source
LED
Light Life
30000 h.
Operating Costs
0,00 € LED
The projection is okay. A smaller screen width would result in a brighter image.
252 cm (no Zoom)
Lux:
133 Lux
Contrast:
10000:1
Candela pro m²:
41 cd/m²
Foot-Lamberts:
12 fL
•
Focus
Powered
Zoom
No Zoom
Objective
-
Throw Ratio
1,26:1
Audio
1 x 3W
Connections
HDMI in
USB in
Audio Mini Jack in und out
Bluetooth 5.3
Full HD 1080P compatible
Product Sheet english HC
