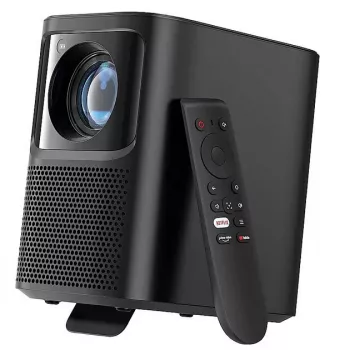

Designed for the Standard-Portabel sector, the N1 model from Emotn features 500 ANSI lumens, a native HDTV 1920 x 1080 resolution and a contrast ratio of 1200:1. Emotn lists a runtime of 30000 hours for the LED in this projector, covering an estimated 20.5 years based on a 4-hour daily runtime. To ensure a rectangular image even with asymmetrical placement, the projector includes digital keystone correction for both the horizontal and vertical axes. Regarding projection size, the value of 500 ANSI lumens allows for an image width of up to 227 cm in darkened environments. In rooms with ambient light, the image width should be correspondingly reduced to a maximum of 151 cm. Additionally, a built-in ambient light sensor measures the room lighting and automatically adjusts the projection settings. In terms of video signals, the device processes resolutions up to Full HD 1080P as well as 3D. Also on board is a local media player that allows reading and playing content directly from storage media. Furthermore, the model is Bluetooth-enabled, allowing audio signals to be sent wirelessly to external speakers. For convenient remote monitoring and administration, the projector is equipped with a classic RJ45 network socket. Since the projector supports Miracast, Airplay and DLNA screen mirroring, video signals can also be streamed wirelessly from the end device. With a value of only 26 decibels, the noise level during operation remains pleasantly in the background.
Display Type
1 x LCD TFT Panel HDTV 16/9 Liquid Crystal Display
Ansi-Lumen
Projector
500
Screen
222 Lux (200 cm Screen width)
Contrast
1200:1 full on/off
1200:1 full on/off
Black Level
0,4167 min. Lumen
0,185 min. Lumen
Offset
-
Resolution
HDTV 1920 x 1080
2.073.600 Pixel
Video Modes
Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p, 3D, EDTV 480p, 576p Media player formats: Mediaplayer
Standard-Portabel | External training and company presentations, as well as product presentations. Very narrow picture width and rooms with very little light.
Light Source
LED
Light Life
30000 h.
Operating Costs
0,00 € LED
Calculated brightness qualityGood (2.5)
250 cm (no Zoom)
Lux:
222 Lux
Contrast:
1200:1
Candela pro m²:
72 cd/m²
Foot-Lamberts:
21 fL
•
Focus
Automatic
Zoom
No Zoom
Objective
-
Throw Ratio
1,25:1
Audio
2 x 5W
Connections
HDMI 2.0 in
USB-A 2.0 in
Mini Jack Audio out
RJ45
Bluetooth 5.0
Real Full HD 3D Full HD 1080P compatible Integrated Mediaplayer Automatic and manual vertical keystone correction High Dynamic Range (HDR) Wi-Fi network compatible. Lan network compatible. Ambient Light Sensor. Android 6.0
Real Full HD 3D
