Brief Introduction
Beta 2.5 |
With the PowerLite L520W, manufacturer Epson USA offers an LCD laser projector with WXGA 1280 x 800 resolution and a contrast of 2500000:1. The laser has a service life of 20000 hours, which is over 13.7 years if enjoyed for four hours a day. Includes an integrated media player for direct playback of files. Thanks to the horizontal and vertical keystone correction, the projector can be positioned very freely. 5200 Ansi lumens ensure that a picture width of 733 cm is also possible. The projector creates rooms with residual light with a smaller image width, we recommend a maximum of 489 cm. Furthermore, the projector can play 1080P without any problems and even has the option of projecting HD 1080P Blu-rays onto the ceiling using 360° projection.
|
| Display Type |
3 x 0,59" LCD TFT Panel
WXGA 16/10 Liquid Crystal Display
|
| Ansi-Lumen |
Projector |
5200 |
Screen |
2080 Lux (200 cm Screen width) |
| Contrast |
2500000:1 |
2500000:1
|
| Black Level |
0,0021 min. Lumen |
0,001 min. Lumen |
| Offset |
86% show
|
| Resolution |
WXGA 1280 x 800
1.024.000 Pixel
SXGA+ 1400 x 1050 compressed |
| Video Modes |
Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p, EDTV 480p, 576p
Media player formats: .jpg
.bmp
.gif
.png
.avi
(Motion-
JPEG) |
| Application |
Standard-Portabel | External training and company presentations, as well as product presentations.
Wide screen width or rooms with plenty of light (over 200 lumens). |
| Light Source |
Laser diode
|
|
| Light Life |
20000 h. / 30000 h. in Eco Mode |
| Operating Costs |
0,00 € Laser
|
|
276 - 448 cm
|
 |
|
Lux: |
2080 Lux |
|
Room light max.: |
416 Lux |
|
Candela pro m²: |
661 cd/m² |
|
Foot-Lamberts: |
193 fL |
|
 |
| 108 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Manual |
| Zoom |
Manual 1-1,6x |
| Objective |
F=1,5-2,0 f=18,2-29,2 mm |
| Throw Ratio |
1,38-2,24:1 show |
| Audio |
10W Mono |

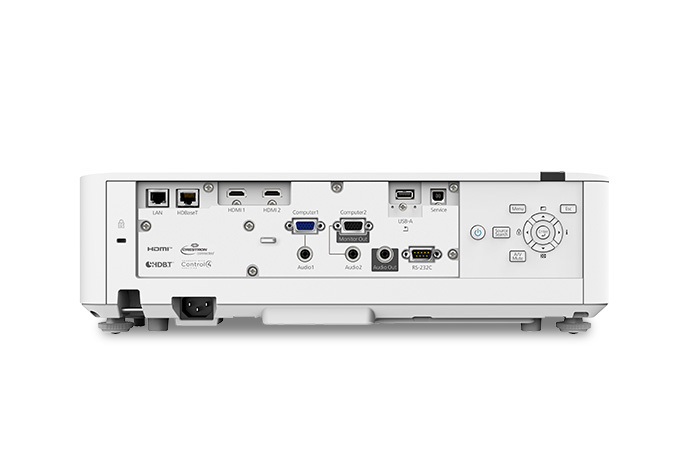

| Connections |
2x HDMI
2x VGA
1x Monitor Out: Mini D-Sub 15 pin
1x HDBaseT
2x Audio in: Mini Stereo
1x Variable audio out: Mini Stereo
1x USB connector Type-B
1x USB connector Type-A
1x Serial: RS-232c
1x Wired LAN RJ-45
Wireless LAN - Optional Accessory
 |
| Ceiling Mounting |
Yes, is possible. |
| Power |
301W |
| Size WxHxD |
44 x 12,1 x 31,97 mm (1,7"x0,5"x1,2") 0,02 L/dm³
|
| Operating Noise |
31 / 23 dB in Eco Mode |
Key: 267 cm |
Key: 159 cm |
| Key: 159 cm |
| |
|
|
| Weight |
7,30 kg / 15,43 lbs. |
| Keystone |
Vert.: +/-30°
Hori.: +/-30°
|
| Illumination |
- |
| Frequenz |
H-sync: 15-92 kHz
V-sync: 50-85 Hz
|
| Foot-Lamberts |
193 fL
/ max. 733 cm screen width |
| Candela m² |
661 cd/m² |
| Features |
 Full HD 1080P compatible
Integrated Mediaplayer
Eco Mode
Kensington Slot
360° installable
Optional Wi-Fi network compatible.
|
|
Optional only
Google TV /
Fire TV /
Apple TV /
Roku TV /
Xiaomi TV Ads |
In Comparison
The Epson USA PowerLite L520W compared to others current "Standard-Portabel" projectors. |
| Ansi-Lumen: |
|
73 |
Weight: |
|
9 |
| Contrast: |
|
50 |
dB: |
|
73 |
| Black level: |
|
100 |
Power cons.: |
|
44 |
| Picture Total Points: | 74 |
Projector Total Points: | 42 |
|
| Popularity Top 100 |
|
| Points: |
|
3 |
| Ranking: |
426 (From: 849) |
|
|
|
|
|
| Status |
2021 Current model // Last update of the data: 2024-11-01
|
