Brief Introduction
Beta 2.5 |
A brief introduction to the Epson EB 525W. The short-throw LCD projector has a WXGA 1280 x 800 resolution and a contrast of 16000:1. The manufacturer specifies a lamp life of 5000 hours, which is over 6.8 years if enjoyed for two hours a day. The integrated media player can play files directly. As the projector has horizontal and vertical keystone correction, the projector can be set up with plenty of free space in the room. Thanks to the short-throw projection ratio of just 0.48:1, the projector is also not distracting in the room. For a 2m wide image, the projector only needs to be 96 cm away from the screen. The projector is equipped with a microphone jack plug and 16W speakers, so no additional speakers are required for presentations or training sessions. Furthermore, the projector can play 1080P without any problems. This model is no longer offered by Epson.
|
| Display Type |
3 x 0,59" LCD TFT Panel
WXGA 16/10 Liquid Crystal Display
|
| Ansi-Lumen |
Projector |
2800 / 1700 im Eco Mode |
Screen |
1120 Lux (200 cm Screen width) |
| Contrast |
16000:1 full on/off |
16000:1 full on/off
|
| Black Level |
0,1750 min. Lumen |
0,07 min. Lumen |
| Offset |
40,49% show
|
| Resolution |
WXGA 1280 x 800
1.024.000 Pixel
UXGA 1600 x 1200 compressed |
| Video Modes |
PAL, SECAM, NTSC, HDTV 720p, 1080i, 1080p EDTV 480p, 576p, 1080p
Media player formats: .jpg
.bmp
.gif
.png
.avi |
| Disc Recognition |
DVD | HD Blu-ray (komprimiert) | 3D Blu-ray | 4K UHD Blu-ray |
| Application |
Short Distance | Medium screen width or rooms with little light, max. 100 lumens. |
| Light Source |

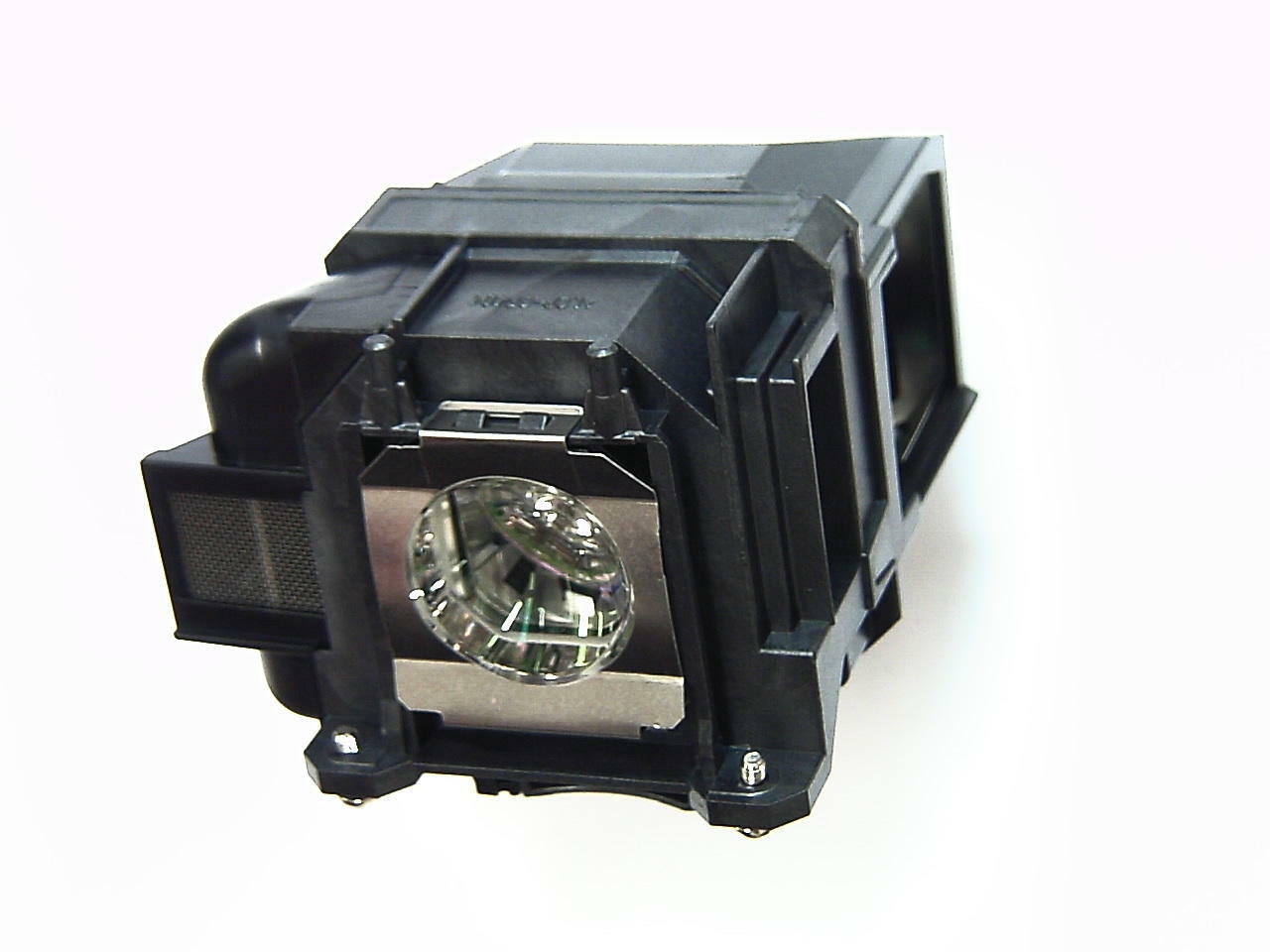

200W Lamp
Article Nr.: ELPLP87
|
|
| Light Life |
5000 h. |
| Operating Costs |
-
|
|
96 cm (no Zoom)
|
 |
|
Lux: |
1120 Lux |
|
Room light max.: |
224 Lux |
|
Candela pro m²: |
356 cd/m² |
|
Foot-Lamberts: |
104 fL |
|
 |
| 51 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Manual |
| Zoom |
No Zoom |
| Objective |
F=4,6 f=6,4mm |
| Throw Ratio |
0,48:1 |
| Audio |
16W |
| Connections |
HDMI in
2 x D-sub 15pin in 1 x out
Cinch Video in
Cinch Stereo in
S-Video in
Mini Jack Audio in und out
USB Typ A,B in
RS232C Din 9 pin in
RJ45 in
Mikrofon in |
| Ceiling Mounting |
Yes, is possible. |
| Power |
298 / 210W Im Eco Mode |
| Size WxHxD |
344 x 94 x 314,5 mm (13,5"x3,7"x12,4") 10,15 L/dm³
|
| Operating Noise |
35 / 29 dB in Eco Mode |
Key: 77 cm |
Key: 26 cm |
| Key: 26 cm |
| |
|
|
| Weight |
3,70 kg / 6,61 lbs. |
| Keystone |
Vert.: +/-15°
Hori.: +/-15°
|
| Illumination |
- |
| Frequenz |
H-sync: 15-92 kHz
V-sync: 50-85 Hz
|
| Foot-Lamberts |
104 fL
/ max. 538 cm screen width |
| Candela m² |
356 cd/m² |
| Features |
 Full HD 1080P compatible
Integrated Mediaplayer
User logo
Eco Mode
Kensington Slot
sRGB
Optional Wi-Fi network compatible.
Lan network compatible.
Short-throw projector
Digital zoom
|
|
Optional only
Google TV /
Fire TV /
Apple TV /
Roku TV /
Xiaomi TV Ads |
In Comparison
The Epson EB 525W compared to others not current "Short Distance" projectors. |
| Ansi-Lumen: |
|
32 |
Weight: |
|
94 |
| Contrast: |
|
1 |
dB: |
|
35 |
| Black level: |
|
100 |
Power cons.: |
|
93 |
| Picture Total Points: | 44 |
Projector Total Points: | 74 |
|
| Popularity Top 100 |
|
| Points: |
|
21 |
| Ranking: |
185 (From: 974) |
|
|
|
|
|
| Status |
2014 Discontinued (EOL) // Last update of the data: 2023-08-30
